MENNEKES IP44 Red Industrial Power Connector, Panel Mount, 5, Rated At 16A, 40V
- RS Stock No.:
- 491-478
- Mfr. Part No.:
- 1383
- Brand:
- MENNEKES
Image representative of range
Bulk discount available
Subtotal (1 unit)*
£34.28
(exc. VAT)
£41.14
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship
- Plus 10 unit(s) shipping from 22 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £34.28 |
| 5 + | £32.58 |
*price indicative
- RS Stock No.:
- 491-478
- Mfr. Part No.:
- 1383
- Brand:
- MENNEKES
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MENNEKES | |
| Product Type | Industrial Power Connector | |
| Current Rating | 16A | |
| Pole Configuration | 5 | |
| Voltage | 40V | |
| Mount Type | Panel | |
| Terminal Type | Screw | |
| IP Rating | IP44 | |
| Colour | Red | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand MENNEKES | ||
Product Type Industrial Power Connector | ||
Current Rating 16A | ||
Pole Configuration 5 | ||
Voltage 40V | ||
Mount Type Panel | ||
Terminal Type Screw | ||
IP Rating IP44 | ||
Colour Red | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- DE
Panel Sockets - Small Flange
110 and 230V types may be converted to surface mounting using the moulded enclosure stock no. 502-045 (see Enclosures Section).

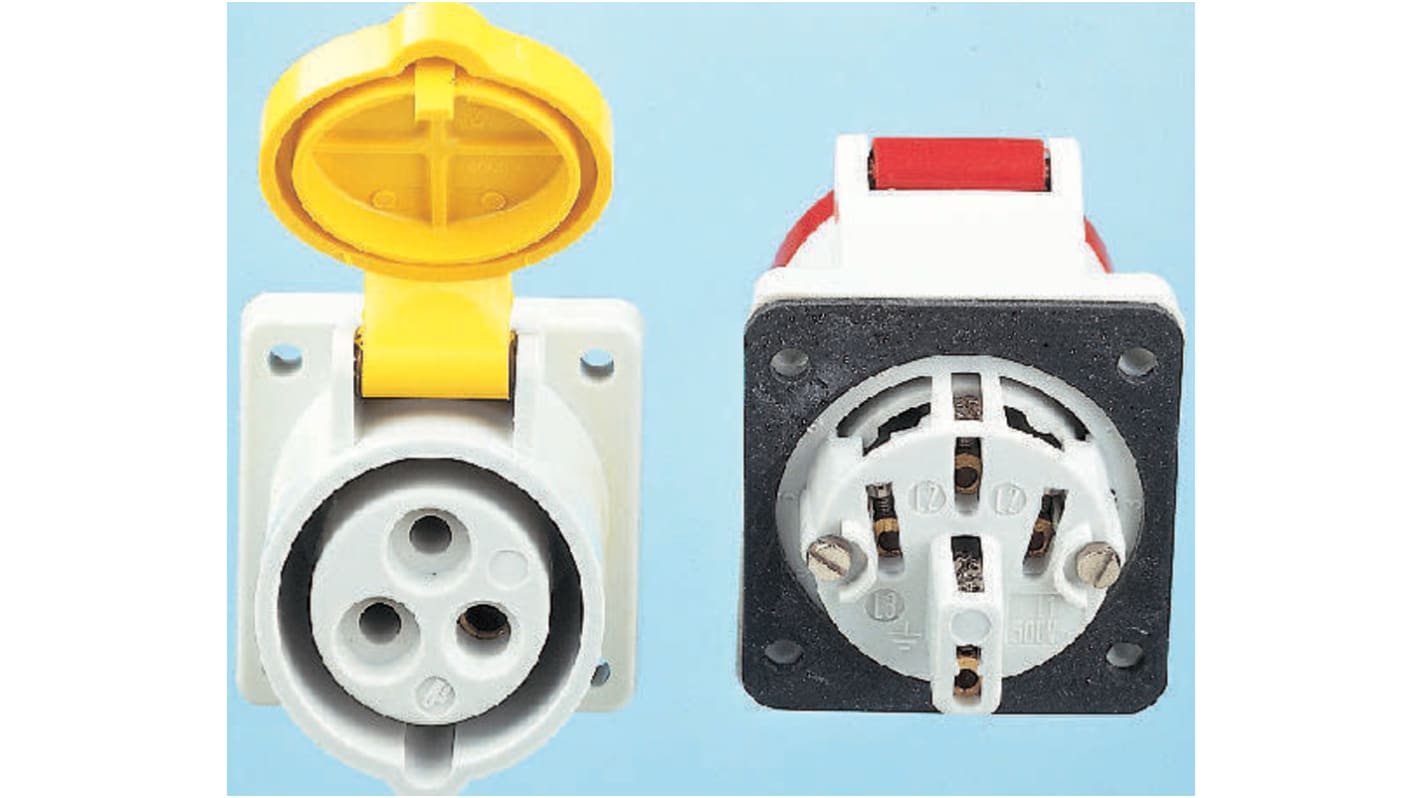

Mennekes Panel Sockets
Plugs, sockets, appliance inlets and interlocked sockets conforming to the latest requirements of British and European standards. The insulator outer casing and interiors are manufactured from Amaplast (polycarbonate) for excellent mechanical performance from -25 to +55°C (ambient temperature). This material provides good electrical insulation and will meet the requirements of most industrial environments.
Contact tubes and pins are made of brass. To prevent incorrect connection, the earth contact is in a different position, relative to the safety key way on each socket outlet, for each voltage. All types are colour coded by voltage and are suitable for 50/60Hz operation. Products are type tested to VDE.
These through panel mounting sockets are supplied with a spring return cover, which will latch with a mating plug for secure connection.
Features include:
Fully shrouded terminals
Ribbed flange for additional strength
Supplied with sealing gasket
