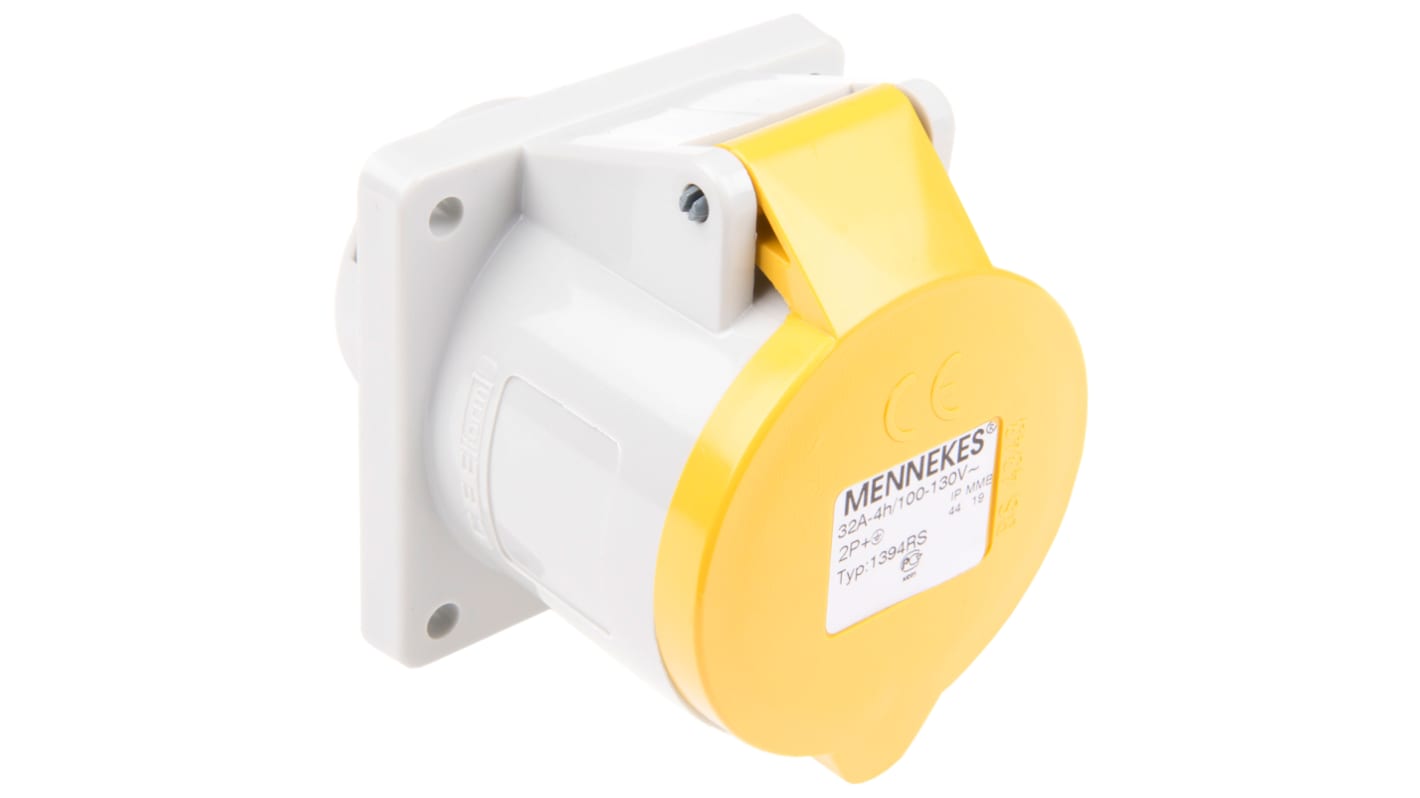

MENNEKES IP44 Yellow Panel Mount 3P Industrial Power Socket, Rated At 32A, 110 V
- RS Stock No.:
- 490-510
- Mfr. Part No.:
- 1394
- Brand:
- MENNEKES
Bulk discount available
Subtotal (1 unit)*
£36.12
(exc. VAT)
£43.34
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 28 unit(s) ready to ship
- Plus 30 unit(s) shipping from 26 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £36.12 |
| 5 + | £34.36 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£22.74
(exc. VAT)
£27.29
(inc. VAT)
- RS Stock No.:
- 490-510
- Mfr. Part No.:
- 1394
- Brand:
- MENNEKES
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MENNEKES | |
| Current Rating | 32A | |
| Plug/Socket | Socket | |
| Pole Format | 3P | |
| Voltage Rating | 110 V | |
| Mounting Type | Panel Mount | |
| Gender | Female | |
| Body Orientation | Straight | |
| Termination Method | Screw Terminal | |
| IP Rating | IP44 | |
| Colour | Yellow | |
| Cable CSA | 2.5 → 10mm² | |
| Maximum Operating Temperature | +55°C | |
| Minimum Operating Temperature | -25 | |
| Low Voltage | No | |
Select all | ||
|---|---|---|
Brand MENNEKES | ||
Current Rating 32A | ||
Plug/Socket Socket | ||
Pole Format 3P | ||
Voltage Rating 110 V | ||
Mounting Type Panel Mount | ||
Gender Female | ||
Body Orientation Straight | ||
Termination Method Screw Terminal | ||
IP Rating IP44 | ||
Colour Yellow | ||
Cable CSA 2.5 → 10mm² | ||
Maximum Operating Temperature +55°C | ||
Minimum Operating Temperature -25 | ||
Low Voltage No | ||
- COO (Country of Origin):
- DE
Panel Sockets - Large Flange
Spring loaded protection cover with connector retaining device
Mennekes Panel Sockets
Plugs, sockets, appliance inlets and interlocked sockets conforming to the latest requirements of British and European standards. The insulator outer casing and interiors are manufactured from Amaplast (polycarbonate) for excellent mechanical performance from -25 to +55°C (ambient temperature). This material provides good electrical insulation and will meet the requirements of most industrial environments.
Contact tubes and pins are made of brass. To prevent incorrect connection, the earth contact is in a different position, relative to the safety key way on each socket outlet, for each voltage. All types are colour coded by voltage and are suitable for 50/60Hz operation. Products are type tested to VDE.
These through panel mounting sockets are supplied with a spring return cover, which will latch with a mating plug for secure connection.
Contact tubes and pins are made of brass. To prevent incorrect connection, the earth contact is in a different position, relative to the safety key way on each socket outlet, for each voltage. All types are colour coded by voltage and are suitable for 50/60Hz operation. Products are type tested to VDE.
These through panel mounting sockets are supplied with a spring return cover, which will latch with a mating plug for secure connection.
Features include:
Fully shrouded terminals
Ribbed flange for additional strength
Supplied with sealing gasket
Ribbed flange for additional strength
Supplied with sealing gasket
