Wall mount industrial power connector

It comes a range of high-quality wall mountable power connectors. Manufactured to industry standards these connectors are easy to assemble and are a fantastic industrial plug solution for powering tools and machinery at a range of different voltage requirements.

Features and benefits

Lockable protection window on all variants to enhance safety

IP44 Rated, 0410185 is IP66 rated

Wall mountable

Red and blue colours offered in this range of power connectors

Voltage ratings of 415V and 230v offered in this range

Angled socket, allowing a more convenient connection

All models offered in the range are highly reliable and excellent quality

Applications

These Industrial connectors are widely used in a range of applications such as;

Providing power for machinery on construction sites

Woodworking machines

Maintenance workshops in the light industry

Powering lighting equipment in the sports and entertainment industry

What are IP66 and IP44 ratings?

IP44 rating provides protection from tools and small wires greater than 1 millimetre as well as from water spray from any direction.

IP66 rating provides protection from total dust ingress as well as protection from high pressure water jets from any direction.

RS Pro RCD Socket

From RS Pro, this combination unit has a RCD switch behind a lockable protection window. The 3P + E socket has a red hinged cover which maintains a splash proof level of environmental protection even when not mated. This wall-mounted RCD device has an angled socket, allowing a more convenient connection.

Features and Benefits

• Sensitivity of 30 mA / 30 ms
• IP44 level of protection
• Lockable Protection Window
• Working Frequency of 50 Hz
• Working Frequency of 60 Hz

Application Information

By automatically switching off at the detection of a fault, RCD sockets offer a level of sensitivity and protection against electrical cable accidents that ordinary circuit breakers and fuses do not provide. This RCD socket is well suited to industrial environments.

Select all	Attribute	Value
	Brand	Scame
	Current Rating	32A
	Plug/Socket	Socket
	Pole Format	3P + E
	Voltage Rating	415 V
	Mounting Type	Wall Mount
	Gender	Female
	Termination Method	Pre-Wired
	Series	DOMINO
	IP Rating	IP44
	Colour	Red

	Select all
	Brand Scame
	Current Rating 32A
	Plug/Socket Socket
	Pole Format 3P + E
	Voltage Rating 415 V
	Mounting Type Wall Mount
	Gender Female
	Termination Method Pre-Wired
	Series DOMINO
	IP Rating IP44
	Colour Red

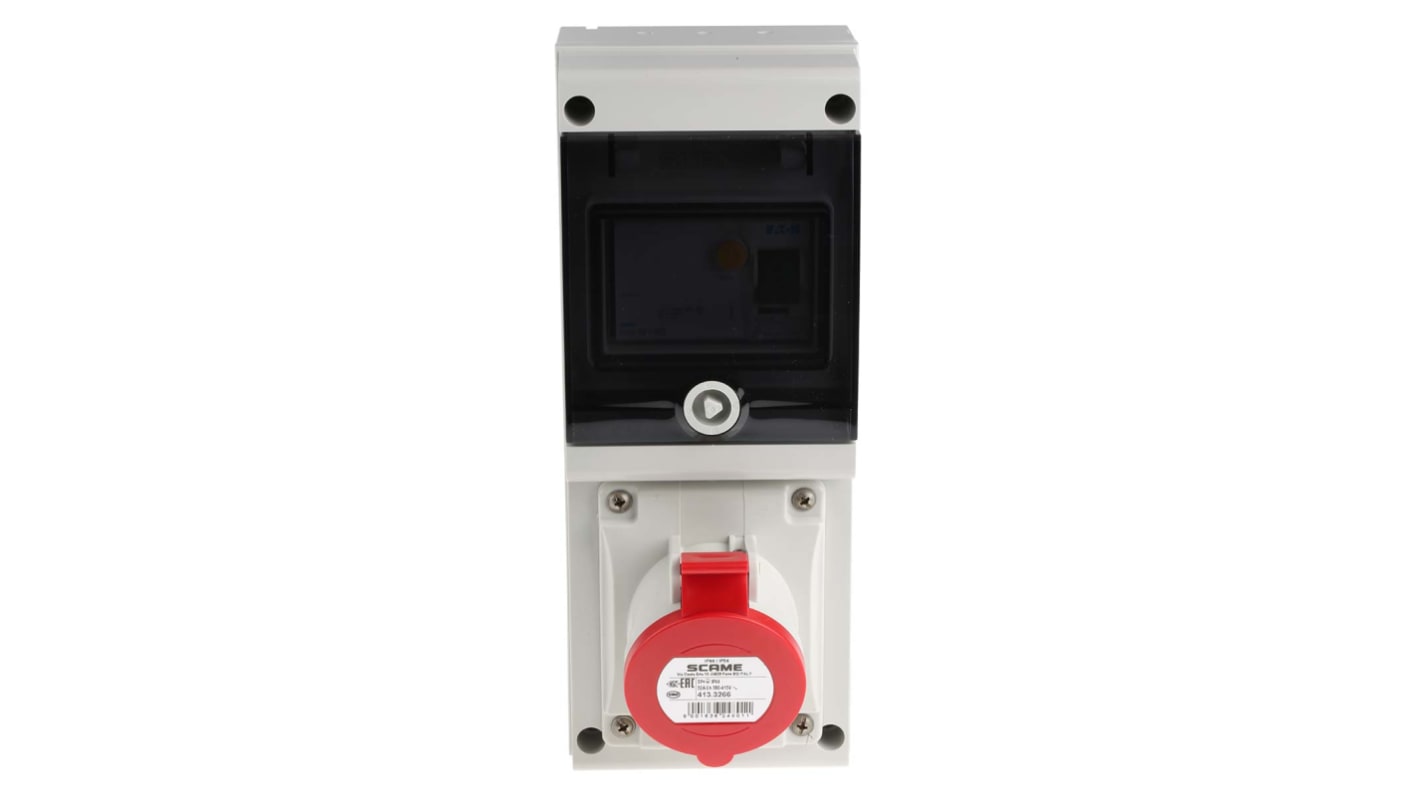

Scame, DOMINO IP44 Red Wall Mount 3P + E RCD Industrial Power Connector Socket, Rated At 32A, 415 V
