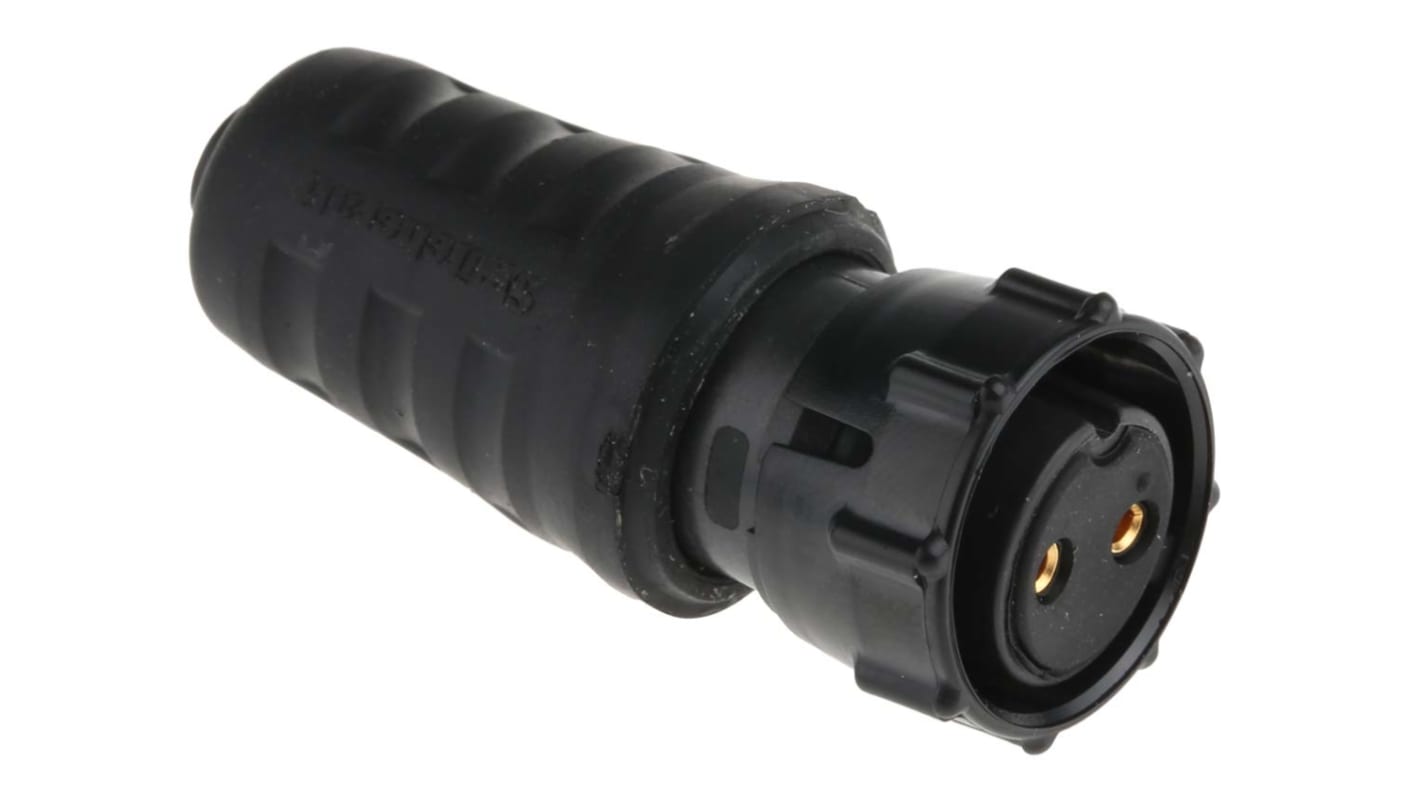

Switchcraft Circular Connector, 2 Contacts, Cable Mount, Socket, Female, IP68, IP69K, EN3 Series

View this category
Bulk discount available

Subtotal (1 unit)*

£13.14

(exc. VAT)

£15.77

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible
Units
Per unit
1 - 9£13.14
10 - 24£12.77
25 +£12.43

*price indicative

RS Stock No.:
878-7023
Mfr. Part No.:
EN3C2F16X
Brand:
Switchcraft
Find similar products by selecting one or more attributes.
Select all

Brand

Switchcraft

Number of Contacts

2

Mounting Type

Cable Mount

Connector Size

Standard

Plug/Socket

Socket

Contact Gender

Female

Termination Method

Solder

IP Rating

IP68, IP69K

Current Rating

13.0A

Series

EN3

Body Orientation

Straight

Voltage Rating

250.0 V

Mating Type

Bayonet

Housing Material

Thermoplastic

Contact Plating

Gold over Nickel

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+65°C

Contact Material

Copper

COO (Country of Origin):
US

Switchcraft Circular Connector


The Switchcraft EN3 series 2-contact female cord connector has a socket in-line connection. This cable mount connector has a voltage rating of 250VAC/DC and a current rating of up to 13A per contact. This connector has thermoplastic rubber housing with copper alloy, gold over nickel-plated contacts. It also has a boot backshell style push fit over the rear of the connector and provides further strain relief for cables up to 6.7mm diameter. This connector features a bayonet locking mechanism for easy and secure connection with an integral O-ring and gasket design. This makes it suitable for a comprehensive range of applications.
Switchcraft EN3 and EN2 series
Mini weather-tight connectors with integral O-ring and gasket offers superior leakage protection and low part count. When mated or covered, the IP68 rating makes them ideal for use in process control, marine, medical instrumentation, transportation, industrial electronic applications and similar hostile environments. A polarising keyway and 1/4 turn locking mechanism prevents misalignment and unintentional disconnection. Cable mounting assemblies feature a snap-in-place strain relief mechanism. Optional protective cap is available separately for panel plugs and sockets when not in use.
Note:
Cable connectors will mate with in-line connectors and panel connectors (plug to a socket or vice-versa). In-line connectors do not mate with panel connectors.

Features and Benefits


Straight body orientation
Solder cup termination
Cable opening ranging between 4.06mm and 6.73mm
Easy mating and unmating
Minimum insulation resistance is 100Mohm
Operating temperature ranging between -40°C and 65°C
Unshielded
Contact size is 16AWG

Applications


General industrial electronic applications
GPS location devices
Instrumentation
Marine applications
Medical data carts
Military and industrial applications
Transportation

Certifications


CFR 46 Part 110.20
IEC 60529
IP68 rated
NEMA 250 (6P)
UL approved
IP66 rated
IP16 rated
IP18 rated
