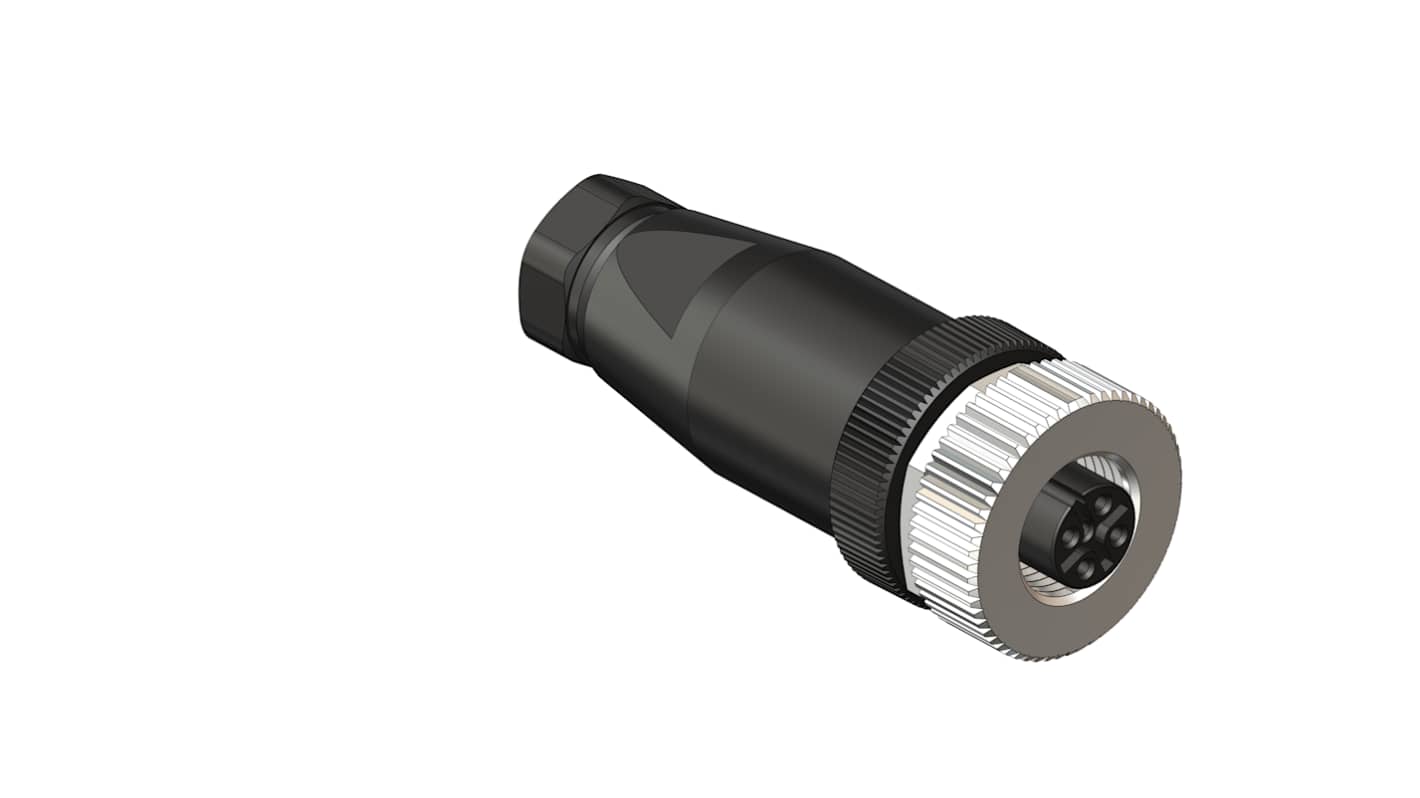

RS PRO Circular Connector, 5 Contacts, Cable Mount, M12 Connector, Socket, Female, IP67
- RS Stock No.:
- 877-1101
- Distrelec Article No.:
- 303-91-272
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£10.51
(exc. VAT)
£12.61
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4,032 unit(s) ready to ship
- Plus 419 unit(s) ready to ship from another location
- Plus 3,010 unit(s) shipping from 02 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £10.51 |
5 - 9 | £9.99 |
10 - 49 | £9.48 |
50 + | £8.42 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£17.76
(exc. VAT)
£21.31
(inc. VAT)
- RS Stock No.:
- 877-1101
- Distrelec Article No.:
- 303-91-272
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Number of Contacts | 5 | |
Mounting Type | Cable Mount | |
Connector Size | M12 | |
Plug/Socket | Socket | |
Contact Gender | Female | |
Termination Method | Screw | |
IP Rating | IP67 | |
Current Rating | 4.0A | |
Body Orientation | Straight | |
Series | CNF12 | |
Voltage Rating | 60.0 V | |
Housing Material | Nylon | |
Contact Plating | Gold | |
Maximum Operating Temperature | +75°C | |
Minimum Operating Temperature | -25°C | |
Contact Material | Copper | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Number of Contacts 5 | ||
Mounting Type Cable Mount | ||
Connector Size M12 | ||
Plug/Socket Socket | ||
Contact Gender Female | ||
Termination Method Screw | ||
IP Rating IP67 | ||
Current Rating 4.0A | ||
Body Orientation Straight | ||
Series CNF12 | ||
Voltage Rating 60.0 V | ||
Housing Material Nylon | ||
Contact Plating Gold | ||
Maximum Operating Temperature +75°C | ||
Minimum Operating Temperature -25°C | ||
Contact Material Copper | ||
- COO (Country of Origin):
- IN
RS M12 Connectors
Brought to you under the trusted RS Brand, this selection of M12 connector assemblies are commonly used in automation and sensory equipment, and are suitable for use in industrial environments. Cable mounted with a convenient cable gland and featuring an O-Ring connector, these cable assemblies offer a sturdy and reliable M12 connection for when uninterrupted data transmission is a must.
Features and Benefits:
• Insulation Resistance >= 100 MΩ
• Brass nickel plated coupling nut
• PG7 Cable Gland
• Neoprene O-Ring
• Insulation Resistance >= 100 MΩ
• Brass nickel plated coupling nut
• PG7 Cable Gland
• Neoprene O-Ring
RS PRO Connector, 5 contacts Cable Mount M12 Socket, Screw IP67
A rugged connector that fits your on-site needs, the RS PRO M12 5-contact female connector achieves quick and hassle-free wired connections in the field. Screw-type termination on this connector eliminates the need for soldering or crimping, meaning you can make wire connections even when you don't have access to equipment. Simply strip the cable insulation, screw onto the adaptor, fully insert into the cable gland and securely close the connections.
To protect your equipment from damage, this connector offers insulation resistance of more than 100 MΩ. The gold-plated copper contacts protect it from rust. With an IP67 waterproof rating, the connector guarantees protection when immersed in up to 1 metre of water for 30 minutes. Part of the RS PRO range, this product is strictly tested for quality.
M12 connectors are ideal for automation and sensory applications that call for uninterrupted data transmission.
To protect your equipment from damage, this connector offers insulation resistance of more than 100 MΩ. The gold-plated copper contacts protect it from rust. With an IP67 waterproof rating, the connector guarantees protection when immersed in up to 1 metre of water for 30 minutes. Part of the RS PRO range, this product is strictly tested for quality.
M12 connectors are ideal for automation and sensory applications that call for uninterrupted data transmission.
Features and Benefits
•>=100 MΩ insulation resistance prevents electric shocks and protects equipment from damage due to accidental discharge
• IP67 waterproof rating guarantees protection in water up to 1m for 30 minutes
• PG7 screw-type cable gland for on-site convenience
• Operating temperature range from -25°C to 75°C
• Voltage rating of 60 V
• Current rating of 4 A
• 5 contacts
• Nylon housing
• Copper contacts
• Gold contact plating
• PG7 screw-type cable gland for on-site convenience
• Operating temperature range from -25°C to 75°C
• Voltage rating of 60 V
• Current rating of 4 A
• 5 contacts
• Nylon housing
• Copper contacts
• Gold contact plating
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
