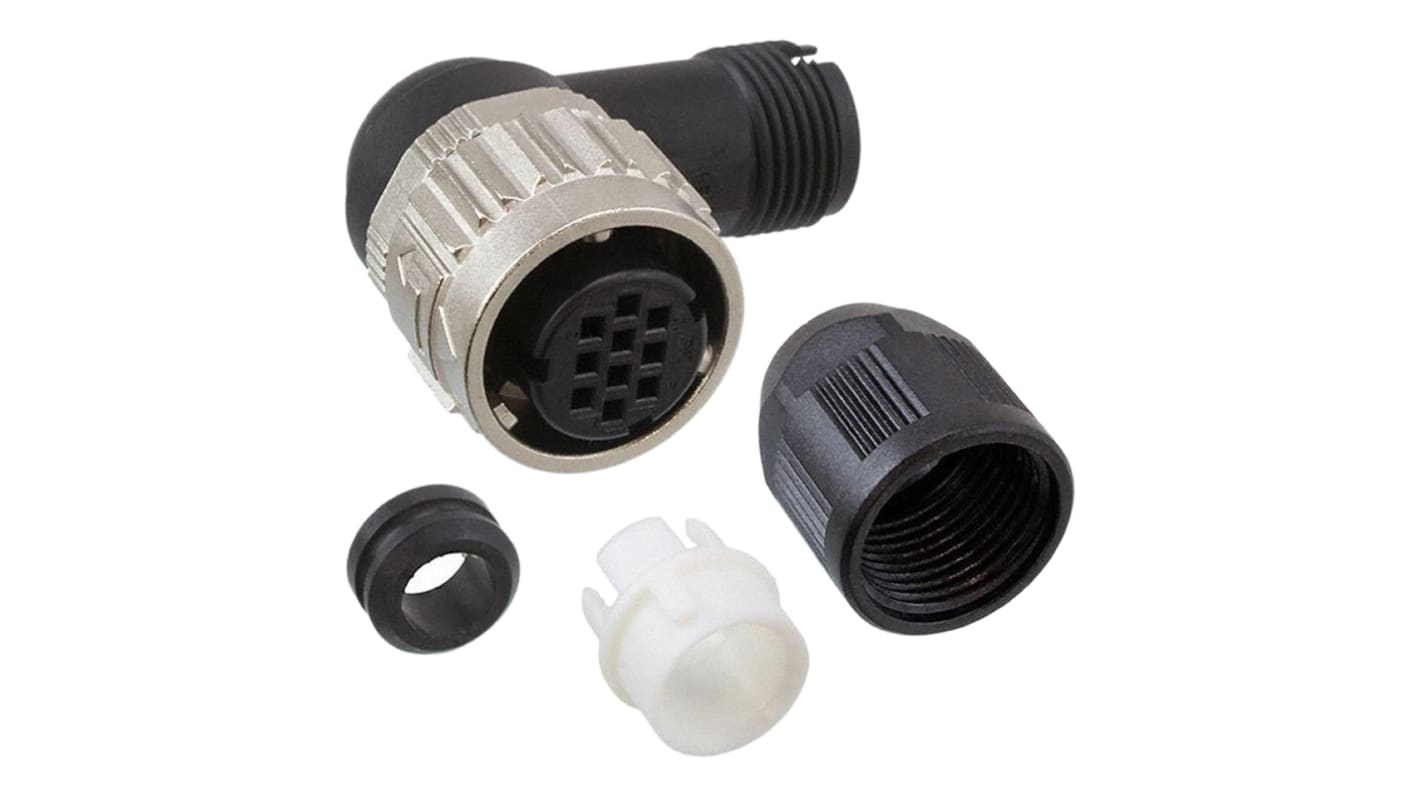

Hirose Connector, 10 Contacts, Cable Mount, Plug, Female, IP67, IP68, HR08D Series
- RS Stock No.:
- 875-2721
- Mfr. Part No.:
- HR08D-12WLPM-10SC
- Brand:
- Hirose
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 875-2721
- Mfr. Part No.:
- HR08D-12WLPM-10SC
- Brand:
- Hirose
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hirose | |
| Number of Contacts | 10 | |
| Mounting Type | Cable Mount | |
| Plug/Socket | Plug | |
| Contact Gender | Female | |
| Termination Method | Crimp | |
| IP Rating | IP67, IP68 | |
| Current Rating | 3.0A | |
| Body Orientation | Right Angle | |
| Series | HR08D | |
| Voltage Rating | 200.0 V , 250.0 V | |
| Shell Size | 12 | |
| Mating Type | Bayonet | |
| Housing Material | Aluminium Alloy, Polyamide Resin, Zinc Alloy | |
| Contact Plating | Gold | |
| Priced to Clear | Yes | |
| Contact Material | Bronze | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -20°C | |
Select all | ||
|---|---|---|
Brand Hirose | ||
Number of Contacts 10 | ||
Mounting Type Cable Mount | ||
Plug/Socket Plug | ||
Contact Gender Female | ||
Termination Method Crimp | ||
IP Rating IP67, IP68 | ||
Current Rating 3.0A | ||
Body Orientation Right Angle | ||
Series HR08D | ||
Voltage Rating 200.0 V , 250.0 V | ||
Shell Size 12 | ||
Mating Type Bayonet | ||
Housing Material Aluminium Alloy, Polyamide Resin, Zinc Alloy | ||
Contact Plating Gold | ||
Priced to Clear Yes | ||
Contact Material Bronze | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- JP
Hirose HR08D Series Push-On Bayonet Lock Connectors
From Hirose, this HR08D series connector is compact and waterproof. This RoHS complaint circular connector has push-on bayonet locking and is designed for harsh environments. The HR08D series of M12 connectors are oil-proof and are rated to IP68. The mating guide keys are at three points to prevent contact damage, and assist with blind mating. Un-mating of the connector is achieved by rotating the locking collar to release the lock then pulling it apart.
Features and Benefits:
• Bayonet lock type
• Oil-proof and waterproof IP68 rated
• Secure cable strain relief
• Secure lock with high resistance to vibrations
• Excellent tactile click mating
• RoHS compliant
• Oil-proof and waterproof IP68 rated
• Secure cable strain relief
• Secure lock with high resistance to vibrations
• Excellent tactile click mating
• RoHS compliant
Applications
• Servo motor construction
• Industrial equipment
• Test and measurement equipment
• Robotics
• Industrial equipment
• Test and measurement equipment
• Robotics
Note
Manufacturers part numbers ending in SC are crimp variants, ending in S, are solder buckets. Crimp contacts not provided. See stock number 875-2762
