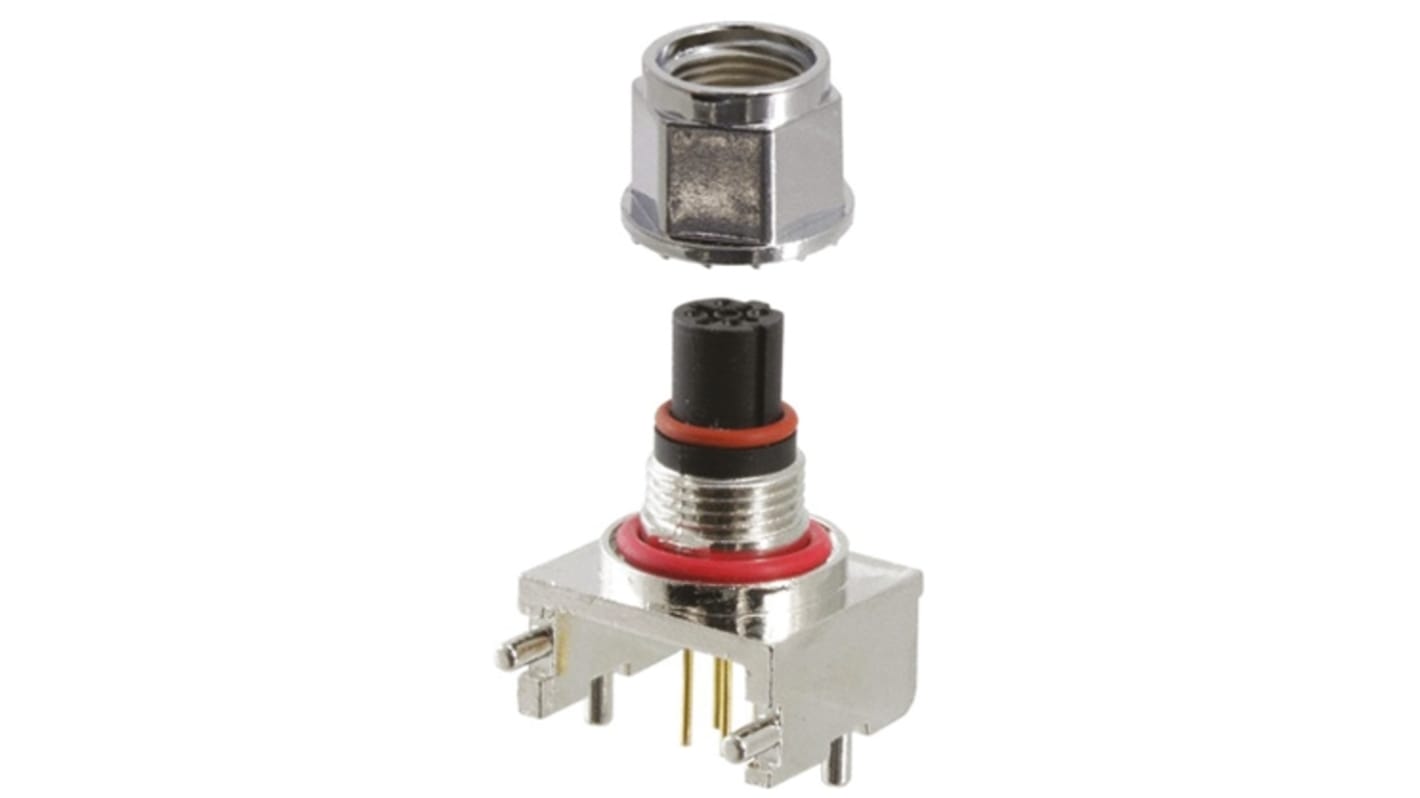

Molex Connector, 4 Contacts, Panel Mount, Micro Connector, Socket, Female, IP67, 130299 Series
- RS Stock No.:
- 798-9543
- Mfr. Part No.:
- 130299-0200
- Brand:
- Molex
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 798-9543
- Mfr. Part No.:
- 130299-0200
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Number of Contacts | 4 | |
| Mounting Type | Panel Mount | |
| Connector Size | Micro | |
| Plug/Socket | Socket | |
| Contact Gender | Female | |
| Termination Method | Solder | |
| IP Rating | IP67 | |
| Current Rating | 4A | |
| Body Orientation | Straight | |
| Series | 130299 | |
| Voltage Rating | 250 V ac/dc | |
| Mating Type | Plug-In | |
| Housing Material | Die Cast Zinc | |
| Contact Plating | Gold | |
| Contact Material | Brass | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -40°C | |
| Priced to Clear | Yes | |
Select all | ||
|---|---|---|
Brand Molex | ||
Number of Contacts 4 | ||
Mounting Type Panel Mount | ||
Connector Size Micro | ||
Plug/Socket Socket | ||
Contact Gender Female | ||
Termination Method Solder | ||
IP Rating IP67 | ||
Current Rating 4A | ||
Body Orientation Straight | ||
Series 130299 | ||
Voltage Rating 250 V ac/dc | ||
Mating Type Plug-In | ||
Housing Material Die Cast Zinc | ||
Contact Plating Gold | ||
Contact Material Brass | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -40°C | ||
Priced to Clear Yes | ||
- COO (Country of Origin):
- MX
Brad® Micro-Change® M12 D-Code Harsh-Duty PCB Mount Receptacle Connectors
Brad Micro-Change® M12 PCB mount connectors are rugged, compact, sealed connectors with D coding, used for sensor/actuator connectivity in industrial control applications, these M12 connectors are designed to withstand harsh-industrial and weather environments.
These high-quality M12 connectors allow fast and simple replacement of sensors, encoders, switches and other input and output devices in industrial machinery. Brad Micro-Change M12 Harsh-Duty receptacle connectors offer a sealed connection with superior EMI/RFI shielding in high-vibration systems, which makes them ideal for petrochemical, aerospace, heavy duty commercial vehicles and industrial automation uses.
These high-quality M12 connectors allow fast and simple replacement of sensors, encoders, switches and other input and output devices in industrial machinery. Brad Micro-Change M12 Harsh-Duty receptacle connectors offer a sealed connection with superior EMI/RFI shielding in high-vibration systems, which makes them ideal for petrochemical, aerospace, heavy duty commercial vehicles and industrial automation uses.
Features and Benefits:
• Rated at 4A, 250Vac/dc
• Operating temperature range -40 to +85 °C
• Panel mount
• IP67 rated
• Rated at 4A, 250Vac/dc
• Operating temperature range -40 to +85 °C
• Panel mount
• IP67 rated
BRAD - M12
