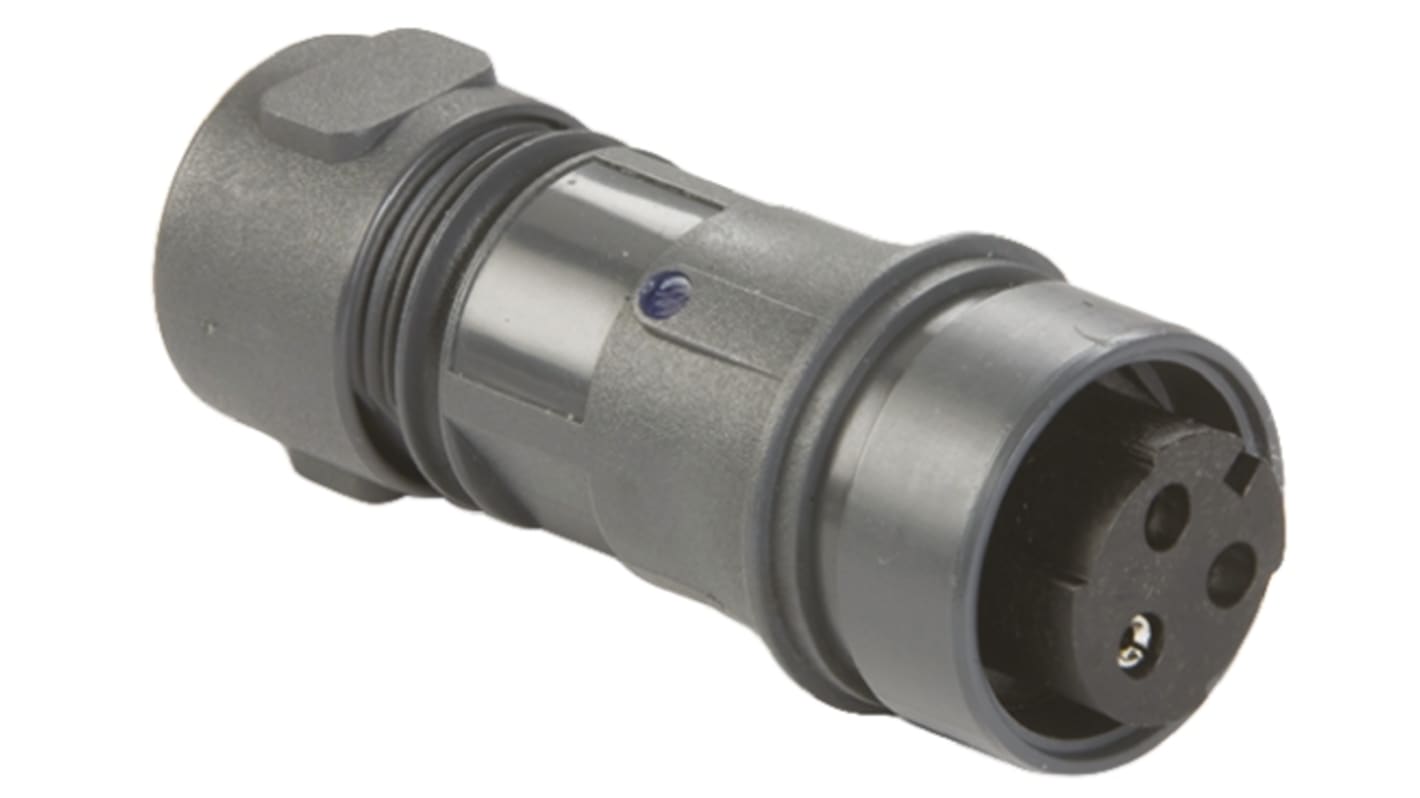

Bulgin Circular Connector, 3 Contacts, Cable Mount, Socket, Female, IP66, IP68, IP69K, Buccaneer 6000 Series
- RS Stock No.:
- 765-9738
- Distrelec Article No.:
- 303-26-703
- Mfr. Part No.:
- PXP6011/03S/ST/0507
- Brand:
- Bulgin
Save 19% when you buy 100 units
Subtotal (1 unit)*
£69.51
(exc. VAT)
£83.41
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 99 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £69.51 |
10 - 49 | £63.95 |
50 - 99 | £60.54 |
100 + | £55.61 |
*price indicative
- RS Stock No.:
- 765-9738
- Distrelec Article No.:
- 303-26-703
- Mfr. Part No.:
- PXP6011/03S/ST/0507
- Brand:
- Bulgin
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Bulgin | |
Number of Contacts | 3 | |
Mounting Type | Cable Mount | |
Plug/Socket | Socket | |
Contact Gender | Female | |
Termination Method | Screw | |
IP Rating | IP66, IP68, IP69K | |
Current Rating | 16.0A | |
Series | Buccaneer 6000 | |
Body Orientation | Straight | |
Voltage Rating | 277.0 V | |
Mating Type | Push-Pull | |
Shell Size | 26 | |
Housing Material | Polymer | |
Strain Relief | No | |
Shielded/Unshielded | Unshielded | |
Contact Plating | Nickel | |
Maximum Operating Temperature | +120°C | |
Minimum Operating Temperature | -40°C | |
Contact Material | Brass | |
Select all | ||
---|---|---|
Brand Bulgin | ||
Number of Contacts 3 | ||
Mounting Type Cable Mount | ||
Plug/Socket Socket | ||
Contact Gender Female | ||
Termination Method Screw | ||
IP Rating IP66, IP68, IP69K | ||
Current Rating 16.0A | ||
Series Buccaneer 6000 | ||
Body Orientation Straight | ||
Voltage Rating 277.0 V | ||
Mating Type Push-Pull | ||
Shell Size 26 | ||
Housing Material Polymer | ||
Strain Relief No | ||
Shielded/Unshielded Unshielded | ||
Contact Plating Nickel | ||
Maximum Operating Temperature +120°C | ||
Minimum Operating Temperature -40°C | ||
Contact Material Brass | ||
- COO (Country of Origin):
- TN
Bulgin Buccaneer, 6000 Series Flex In-Line Circular Connectors, Plastic
Bulgin Buccaneer, 6000 series flex in-line connectors are robust waterproof harsh environment circular connectors suitable for a wide range of dust and water borne environments, with a durable thermo plastic construction and scoop proof connector contacts. These Bulgin Buccaneer plastic bodied, flex in-line circular connectors are suitable for signal and power applications and feature a push-pull secure, instant latching mechanism. Suitable for a wide range of harsh environment connector applications, such as industrial automation or food processing. One of the unique features of this range of connectors is that they are fully interchangable with the Bulgin Buccaneer 6000 series metal circular connectors. These circular connectors mate with flex cable connectors: PXP6010.
Mates with Flex Cable connector PXP6010 Flex in-line cable connection
Pin or socket versions
Leading earth on 3 pole connectors
Cable braid termination
Nickel plated brass contacts
2 and 3 pole screw terminals have contact fitted, all others need to be ordered separately.
IP66, 68 and 69K rated when mated
Pin or socket versions
Leading earth on 3 pole connectors
Cable braid termination
Nickel plated brass contacts
2 and 3 pole screw terminals have contact fitted, all others need to be ordered separately.
IP66, 68 and 69K rated when mated
Note
Approvals
UL1977, IEC 61984:2009, CSA C22.2 No.182.3-M1987 (R2009), CCC GB/T11918 and GB/T11919
