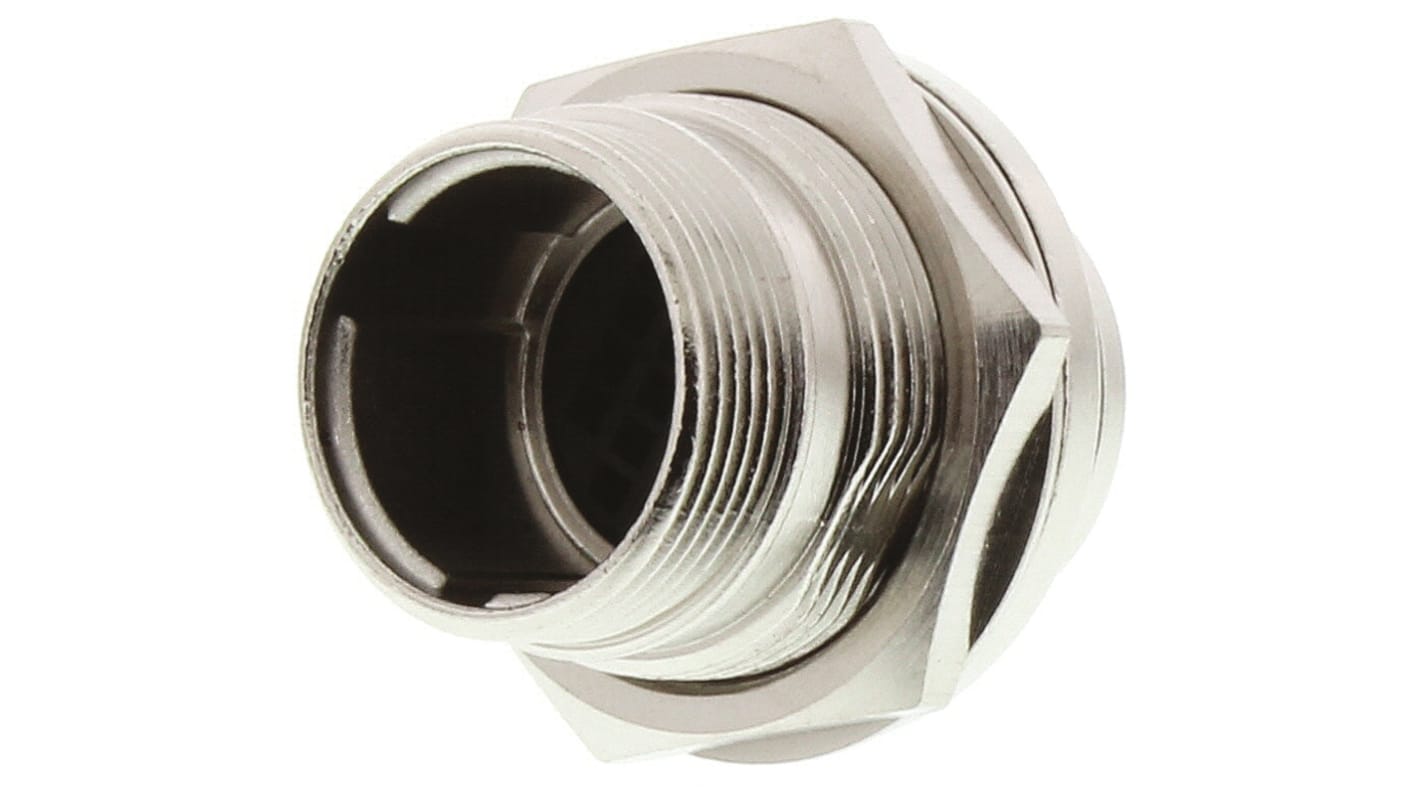

Hirose Circular Connector, 20 Contacts, Panel Mount, Miniature Connector, Socket, Male, IP67, IP68, HR22 Series
- RS Stock No.:
- 764-5095
- Mfr. Part No.:
- HR22-12WTRA-20PC(73)
- Brand:
- Hirose
Save 34% when you buy 250 units
Subtotal (1 unit)*
£11.22
(exc. VAT)
£13.46
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 32 unit(s) ready to ship
- Plus 999,999,967 unit(s) shipping from 29 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £11.22 |
| 10 - 49 | £10.12 |
| 50 - 99 | £9.09 |
| 100 - 249 | £8.20 |
| 250 + | £7.37 |
*price indicative
- RS Stock No.:
- 764-5095
- Mfr. Part No.:
- HR22-12WTRA-20PC(73)
- Brand:
- Hirose
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hirose | |
| Number of Contacts | 20 | |
| Mounting Type | Panel Mount | |
| Connector Size | Miniature | |
| Plug/Socket | Socket | |
| Contact Gender | Male | |
| Termination Method | Crimp | |
| IP Rating | IP67, IP68 | |
| Current Rating | 2.0A | |
| Body Orientation | Straight | |
| Series | HR22 | |
| Voltage Rating | 100.0 V | |
| Shell Size | 12 | |
| Mating Type | Screw Lock | |
| Housing Material | Brass, Zinc | |
| Contact Plating | Silver | |
| Contact Material | Bronze | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand Hirose | ||
Number of Contacts 20 | ||
Mounting Type Panel Mount | ||
Connector Size Miniature | ||
Plug/Socket Socket | ||
Contact Gender Male | ||
Termination Method Crimp | ||
IP Rating IP67, IP68 | ||
Current Rating 2.0A | ||
Body Orientation Straight | ||
Series HR22 | ||
Voltage Rating 100.0 V | ||
Shell Size 12 | ||
Mating Type Screw Lock | ||
Housing Material Brass, Zinc | ||
Contact Plating Silver | ||
Contact Material Bronze | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +85°C | ||
- COO (Country of Origin):
- ID
Hirose HR22 Series Waterproof Compact Circular Connectors
Hirose HR22 series compact circular connectors were developed for use between machine tool motors and associated operation panels. These compact 20 pin circular connectors are waterproof and feature a screw coupling locking mechanism to prevent accidental unlocking due to vibration, available in panel mount receptacle and cable plug versions.
Features and Benefits
• Connector shell zinc alloy and brass with nickel plating
• Waterproof connector
• PBT insulator
• Silver plated connector contacts
• Waterproof connector
• PBT insulator
• Silver plated connector contacts
Hirose HR22 Series Connectors
Hirose HR22 series compact circular connectors were developed for use between machine tool motors and associated operation panels. These compact 20 pin circular connectors are waterproof and feature a screw coupling locking mechanism to prevent accidental unlocking due to vibration.
