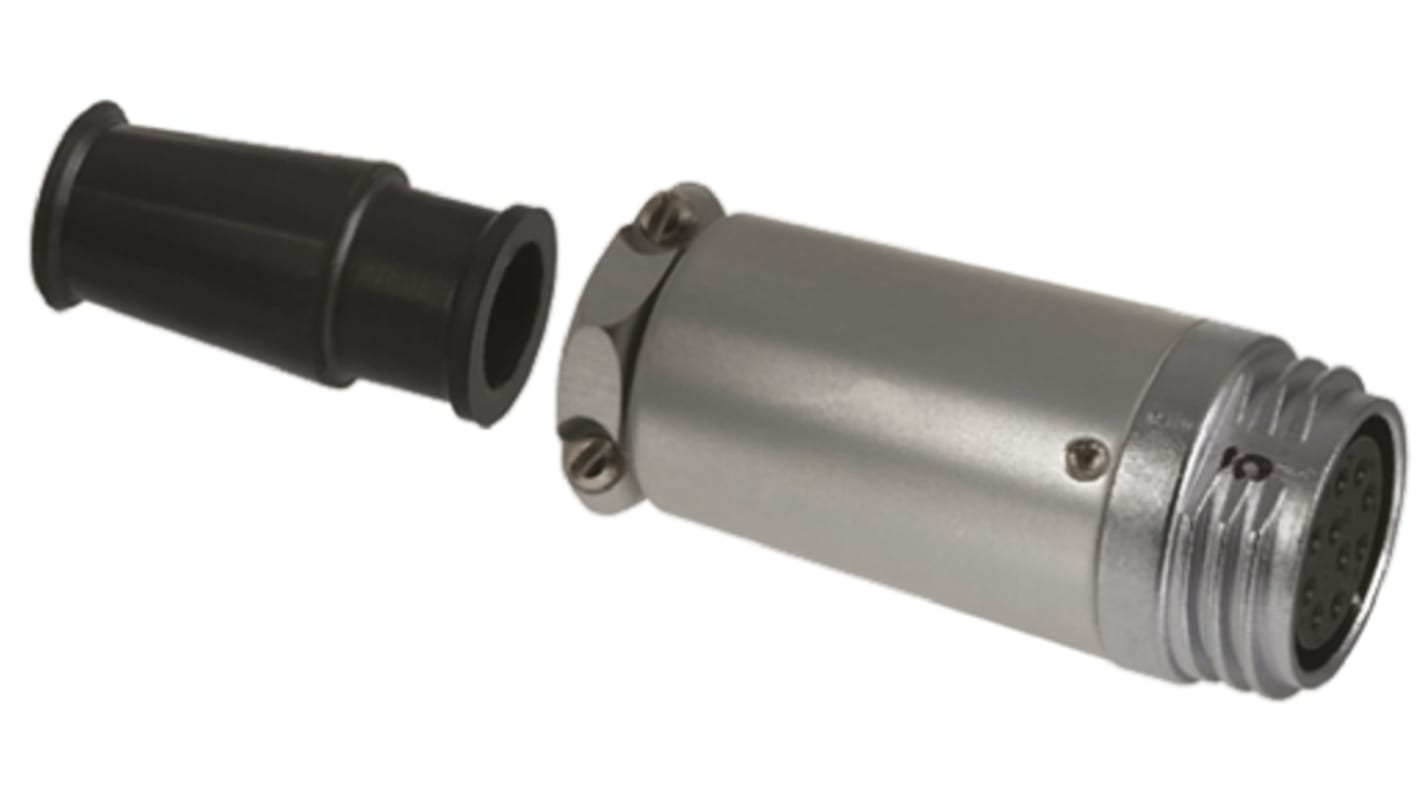

Hirose Connector, 12 Contacts, Cable Mount, Miniature Connector, Socket, Female, RM Series
- RS Stock No.:
- 738-9026
- Mfr. Part No.:
- RM15TJD-12S(71)
- Brand:
- Hirose
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 738-9026
- Mfr. Part No.:
- RM15TJD-12S(71)
- Brand:
- Hirose
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hirose | |
| Number of Contacts | 12 | |
| Mounting Type | Cable Mount | |
| Connector Size | Miniature | |
| Plug/Socket | Socket | |
| Contact Gender | Female | |
| Termination Method | Solder | |
| Current Rating | 5.0A | |
| Series | RM | |
| Body Orientation | Straight | |
| Voltage Rating | 350.0 V | |
| Mating Type | Screw On | |
| Shell Size | 15 | |
| Housing Material | Brass, Zinc | |
| Contact Plating | Silver | |
| Minimum Operating Temperature | -25.0°C | |
| Contact Material | Copper | |
| Maximum Operating Temperature | 85.0°C | |
Select all | ||
|---|---|---|
Brand Hirose | ||
Number of Contacts 12 | ||
Mounting Type Cable Mount | ||
Connector Size Miniature | ||
Plug/Socket Socket | ||
Contact Gender Female | ||
Termination Method Solder | ||
Current Rating 5.0A | ||
Series RM | ||
Body Orientation Straight | ||
Voltage Rating 350.0 V | ||
Mating Type Screw On | ||
Shell Size 15 | ||
Housing Material Brass, Zinc | ||
Contact Plating Silver | ||
Minimum Operating Temperature -25.0°C | ||
Contact Material Copper | ||
Maximum Operating Temperature 85.0°C | ||
- COO (Country of Origin):
- JP
RM15T (D Type) Connectors with Threaded Couplings
RM15T (D Type) connectors with threaded couplings and a shell size of 15. These D type RM15T circular connectors are designed for high grade commercial applications such as VTR and have a highly refined design. The D type RM15T circular connector has a nickel plated brass and zinc alloy shell, a synthetic resin insulator and uses 30° trapezoidal locking threads.
Note
The D type RM15T circular connector uses 30° trapezoidal locking threads so is not compatible with other RM15T connectors
Hirose RM Range
10-way standard (15mm mating face dia.) connectors for video equipment. Consisting of cable or chassis mounting plugs and sockets with metal shells and solder type terminations.
• A rugged miniaturized circular connector
• Gives excellent mechanical and electrical performance
• Gives excellent mechanical and electrical performance
HIROSE 15mm Circular Video Connectors (Threaded)
