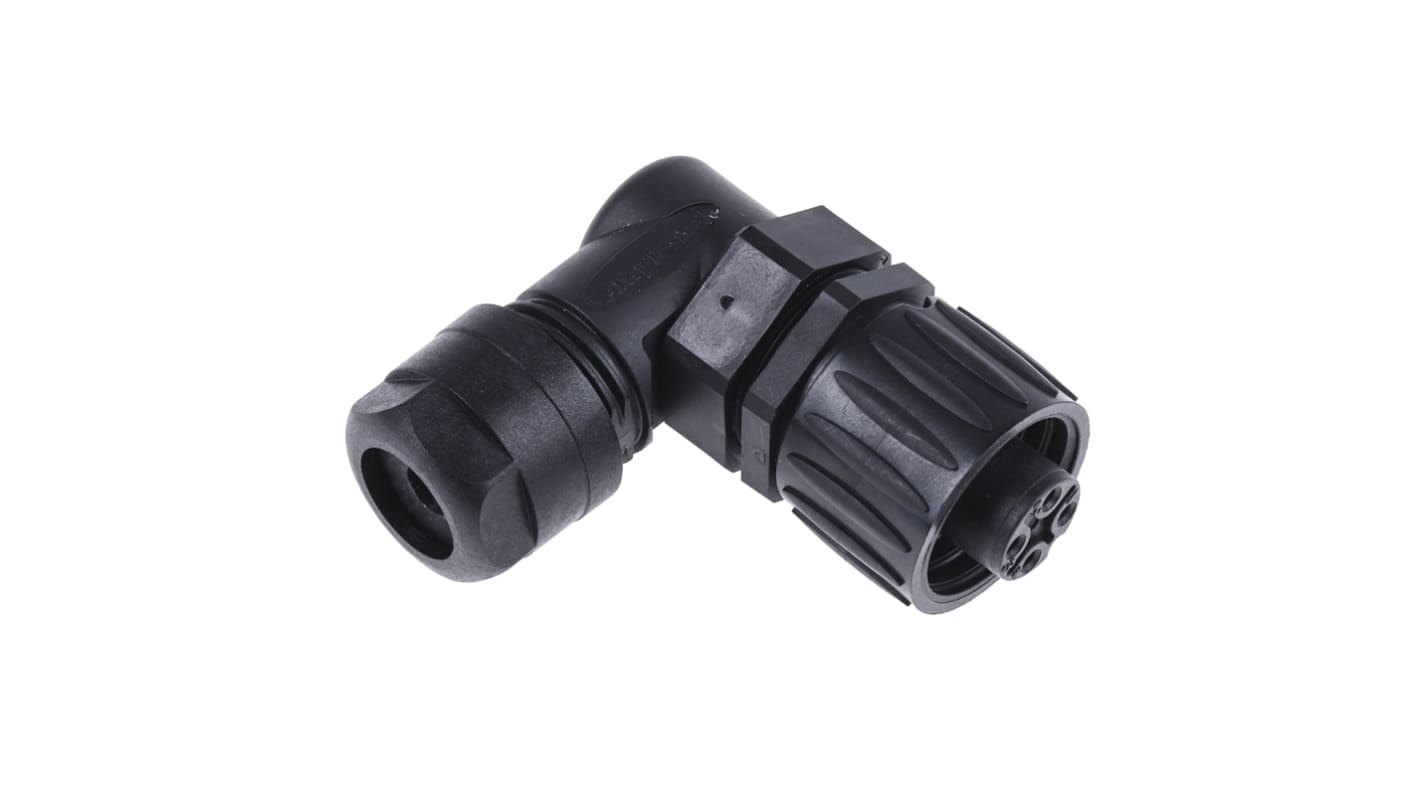

Amphenol Industrial Circular Connector, 3 + PE Contacts, Cable Mount, Socket, Female, IP67, Ecomate M Series
- RS Stock No.:
- 696-1614
- Distrelec Article No.:
- 144-02-590
- Mfr. Part No.:
- C016-20F003-100-12
- Brand:
- Amphenol Industrial
Save 14% when you buy 50 units
Subtotal (1 unit)*
£20.33
(exc. VAT)
£24.40
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 131 unit(s) ready to ship
- Plus 44 unit(s) ready to ship from another location
- Plus 300 unit(s) shipping from 13 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £20.33 |
5 - 24 | £19.29 |
25 - 49 | £18.34 |
50 + | £17.45 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£11.72
(exc. VAT)
£14.06
(inc. VAT)
- RS Stock No.:
- 696-1614
- Distrelec Article No.:
- 144-02-590
- Mfr. Part No.:
- C016-20F003-100-12
- Brand:
- Amphenol Industrial
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Amphenol Industrial | |
Number of Contacts | 3 + PE | |
Mounting Type | Cable Mount | |
Connector Size | Standard | |
Plug/Socket | Socket | |
Contact Gender | Female | |
Termination Method | Screw | |
IP Rating | IP67 | |
Current Rating | 16.0A | |
Body Orientation | Right Angle | |
Series | Ecomate M | |
Voltage Rating | 400.0 V | |
Housing Material | Polymer | |
Pole Format | 3 + PE | |
Strain Relief | Yes | |
Contact Plating | Silver | |
Maximum Operating Temperature | +100°C | |
Minimum Operating Temperature | -40°C | |
Select all | ||
---|---|---|
Brand Amphenol Industrial | ||
Number of Contacts 3 + PE | ||
Mounting Type Cable Mount | ||
Connector Size Standard | ||
Plug/Socket Socket | ||
Contact Gender Female | ||
Termination Method Screw | ||
IP Rating IP67 | ||
Current Rating 16.0A | ||
Body Orientation Right Angle | ||
Series Ecomate M | ||
Voltage Rating 400.0 V | ||
Housing Material Polymer | ||
Pole Format 3 + PE | ||
Strain Relief Yes | ||
Contact Plating Silver | ||
Maximum Operating Temperature +100°C | ||
Minimum Operating Temperature -40°C | ||
Amphenol Circular Connector
The Amphenol Eco-Mate series black, 3+PE, female receptacle circular connector has a socket type connection. This cable mount connector has a voltage rating of 400VDC and current rating is up to 16A per contact. These circular connectors are easy to assemble and are supplied with fittings which include mounted gaskets, cable glands and clamping rings. This connector is made of premium moulding material with copper alloy contacts silver over nickel plating. The circular connector has a compact and robust design, with a screw lock connection that meets the high requirements of industrial technology applications.
FAQ
Q: Are there accessories available for these connectors?
A: Connector caps are available to retain IP rating when unmated.
Q: What are the advantages of Eco-Mate over similar connectors?
A: As well as being easy to handle and quick mating, these connectors are impact, vibration and UV resistant. They present a robust connector solution for almost any environment.
Q: Does this connector require special tooling?
A: A ratchet crimp tool is available for affixing crimp contacts. (See 241-2786)
FAQ
Q: Are there accessories available for these connectors?
A: Connector caps are available to retain IP rating when unmated.
Q: What are the advantages of Eco-Mate over similar connectors?
A: As well as being easy to handle and quick mating, these connectors are impact, vibration and UV resistant. They present a robust connector solution for almost any environment.
Q: Does this connector require special tooling?
A: A ratchet crimp tool is available for affixing crimp contacts. (See 241-2786)
Features and Benefits
Quick and easy assembly
Robust and ergonomic design
Screw down termination
Keyed orientation
Right angled body orientation
Pre-loaded ground contact
Operating temperature ranges between -40°C and 100°C
Robust and ergonomic design
Screw down termination
Keyed orientation
Right angled body orientation
Pre-loaded ground contact
Operating temperature ranges between -40°C and 100°C
Applications
Power supply technology
Measuring and controlling applications
Industrial applications
Measuring and controlling applications
Industrial applications
Certifications
IEC60664-1
IEC60512-5-2
Test 5b
IEC60512-3-1
IEC60512-2-1
IP65 rated
IP67 rated
IEC60512-5-2
Test 5b
IEC60512-3-1
IEC60512-2-1
IP65 rated
IP67 rated
