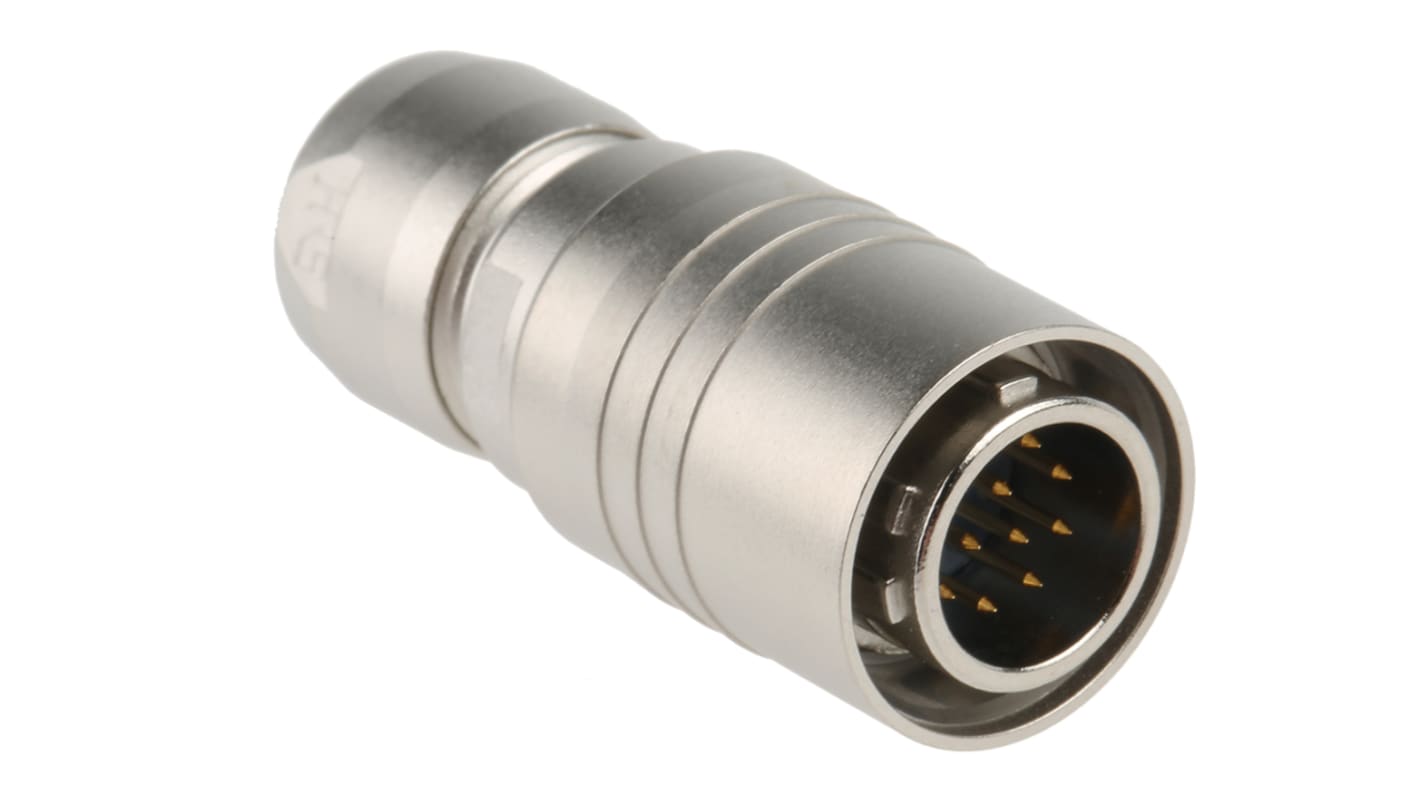

Hirose Circular Connector, 12 Contacts, Cable Mount, Miniature Connector, Plug, Male, HR10 Series
- RS Stock No.:
- 608-0226
- Mfr. Part No.:
- HR10-10P-12P (73)
- Brand:
- Hirose
Bulk discount available
Subtotal (1 unit)*
£21.70
(exc. VAT)
£26.04
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 258 unit(s) ready to ship
- Plus 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £21.70 |
| 10 - 24 | £19.73 |
| 25 - 49 | £18.08 |
| 50 - 149 | £16.80 |
| 150 + | £16.32 |
*price indicative
- RS Stock No.:
- 608-0226
- Mfr. Part No.:
- HR10-10P-12P (73)
- Brand:
- Hirose
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hirose | |
| Number of Contacts | 12 | |
| Mounting Type | Cable Mount | |
| Connector Size | Miniature | |
| Plug/Socket | Plug | |
| Contact Gender | Male | |
| Termination Method | Solder | |
| Current Rating | 2.0A | |
| Body Orientation | Straight | |
| Series | HR10 | |
| Voltage Rating | 100.0 V | |
| Shell Size | 10 | |
| Mating Type | Push-Pull | |
| Housing Material | Brass, Zinc | |
| Contact Plating | Gold | |
| Contact Material | Bronze | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -25°C | |
Select all | ||
|---|---|---|
Brand Hirose | ||
Number of Contacts 12 | ||
Mounting Type Cable Mount | ||
Connector Size Miniature | ||
Plug/Socket Plug | ||
Contact Gender Male | ||
Termination Method Solder | ||
Current Rating 2.0A | ||
Body Orientation Straight | ||
Series HR10 | ||
Voltage Rating 100.0 V | ||
Shell Size 10 | ||
Mating Type Push-Pull | ||
Housing Material Brass, Zinc | ||
Contact Plating Gold | ||
Contact Material Bronze | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -25°C | ||
- COO (Country of Origin):
- CN
Push-Pull Connectors
A highly durable and reliable range of compact, subminiature connectors featuring easy action "push-pull" latching mechanism for quick connecting and disconnecting. A five key polarisation system helps prevent misconnections. Solder bucket contacts.
Note
A cable mounting socket will mate with a jack plug or panel mounting plug. A cable mounting plug will mate with a jack socket or panel mounting socket.
