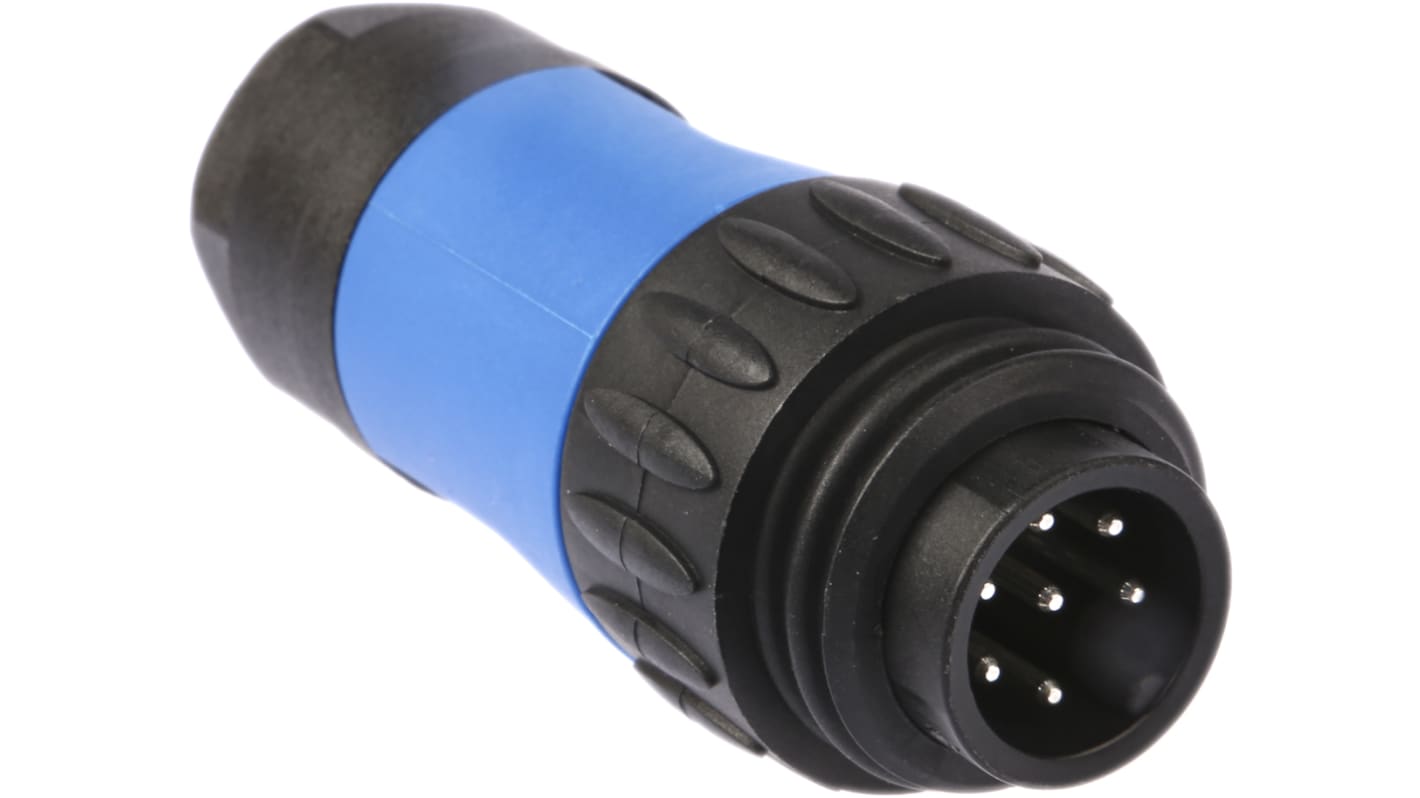

Amphenol Industrial Circular Connector, 6 + PE Contacts, Cable Mount, Plug, Male, IP67, Ecomate M Series

View this category
Bulk discount available

Subtotal (1 unit)*

£18.69

(exc. VAT)

£22.43

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 630 unit(s) shipping from 27 October 2025
  • Plus 51 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£18.69
10 - 49£17.78
50 - 99£16.92
100 +£16.00

*price indicative

RS Stock No.:
540-1688
Distrelec Article No.:
304-00-722
Mfr. Part No.:
C01630H00610010
Brand:
Amphenol Industrial
Find similar products by selecting one or more attributes.
Select all

Brand

Amphenol Industrial

Number of Contacts

6 + PE

Mounting Type

Cable Mount

Connector Size

Standard

Plug/Socket

Plug

Contact Gender

Male

Termination Method

Solder

IP Rating

IP67

Current Rating

10.0A

Series

Ecomate M

Body Orientation

Straight

Voltage Rating

250.0 V

Housing Material

Polymer

Pole Format

6 + PE

Strain Relief

Yes

Contact Plating

Silver

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+125°C

COO (Country of Origin):
CZ

Amphenol Circular Connector


The Amphenol Eco-Mate series 6+PE male circular connector has a plug-type connection. This cable mount connector has a voltage rating of 250VAC and a current rating of up to 10A per contact. These Eco Mate circular connectors are easy to assemble and are supplied with fittings which include strain relief and clamping rings. This can be made of polyamide with a copper alloy contacts -silver over nickel plating. The circular connector has a compact and robust design, with a screw lock connection that meets the high requirements of industrial technology applications.
FAQ
Q: Are there accessories available for these connectors?
A: Connector caps are available to retain IP rating when unmated.
Q: What are the advantages of Eco-Mate over similar connectors?
A: As well as being easy to handle and quick mating, these connectors are impact, vibration and UV resistant. They present a robust connector solution for almost any environment.
Q: Does this connector require special tooling?
A: A ratchet crimp tool is available for affixing crimp contacts. (See 241-2786)

Features and Benefits


Clamping ring of 6mm to 12.5mm
Keyed orientation
Mechanical life is greater than 500 mating cycles
Operating temperature ranging between -40°C and 125°C
Pre-loaded ground contact
Quick and easy assembly
Robust, ergonomic design
Solder termination
Straight body orientation

Applications


Industrial applications
Measuring and controlling applications
Power supply technology

Certifications


IEC60512-2-1
IEC60512-3-1
IEC60512-5-2
IEC60664-1
IP65 rated
IP67 rated
Test 5b
