ITT Cannon Circular Connector, 15 Contacts, Panel Mount, Socket, Male, IP67, Trident Neptune Series

Save 19% when you buy 40 units

Subtotal (1 unit)*

£18.21

(exc. VAT)

£21.85

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 183 unit(s) ready to ship
  • Plus 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 19£18.21
20 - 39£16.43
40 +£14.71

*price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

RS Stock No.:
446-6319
Mfr. Part No.:
TN0S16-0213P1L / 192900-0582
Brand:
ITT Cannon
Find similar products by selecting one or more attributes.
Select all

Brand

ITT Cannon

Number of Contacts

15

Mounting Type

Panel Mount

Connector Size

Standard

Plug/Socket

Socket

Contact Gender

Male

Termination Method

Crimp

IP Rating

IP67

Series

Trident Neptune

Body Orientation

Straight

Contact Plating

Nickel

Maximum Operating Temperature

+105°C

Contact Material

Copper

Minimum Operating Temperature

-55°C

Non Compliant

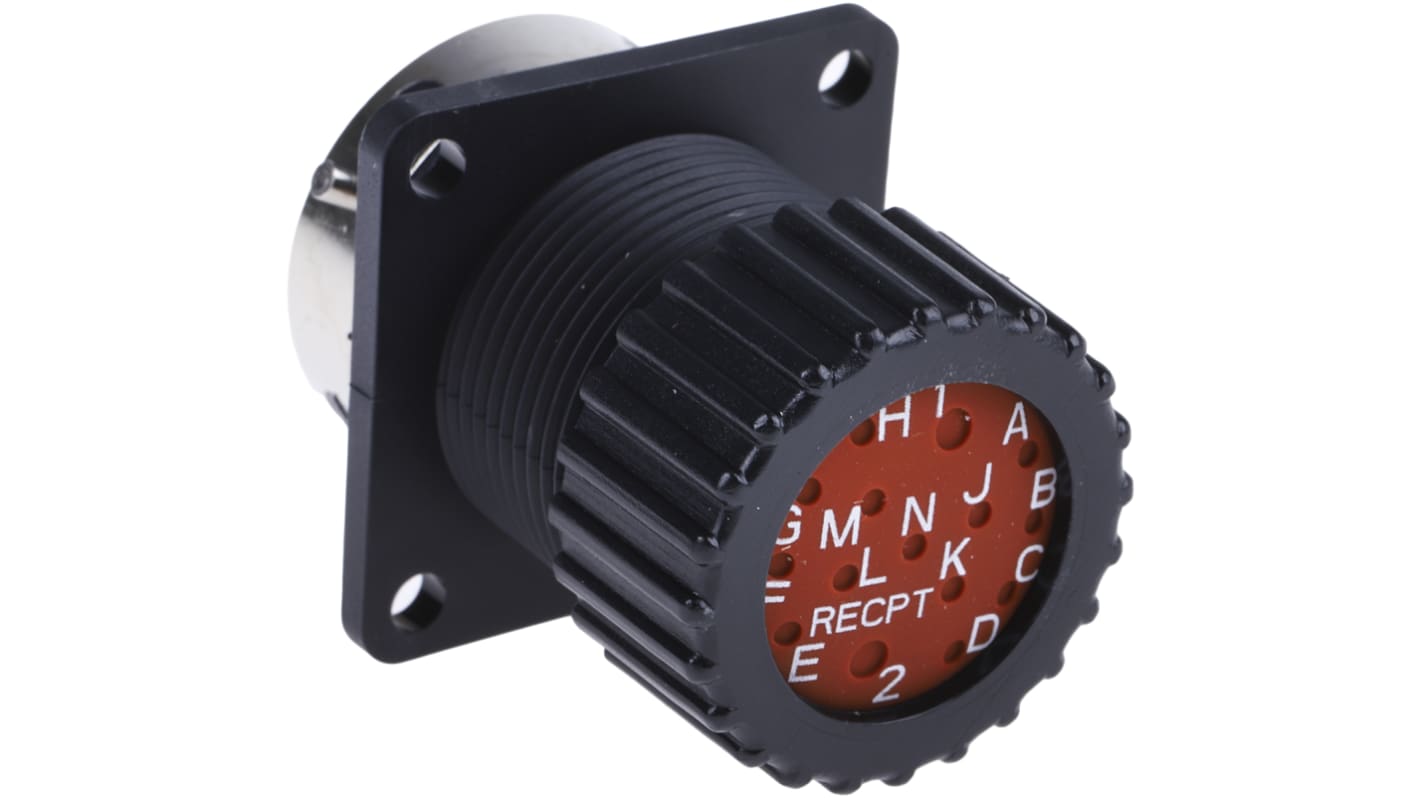

ITT Cannon Circular Connector


The ITT Cannon Neptune series 15-contacts (13-signal contacts and 2-power contacts), the male circular connector has a plug-type connection. This panel mount connector has a voltage rating of 25V and a current rating of up to 13A per contact. This connector is made from nylon and nickel-plated copper alloy coupling ring with stainless steel bayonet pins integrally moulded into the body. This circular plastic connector comes with a metal coupling nut and bayonet retention mechanism, providing the cost and weight benefits of a plastic connector with the durability of a metal connector.
Neptune:
Based on the Trident Ringlok series, the Neptune range combines power and signal contacts. Widely used in automotive, marine and process control industries, it features a strong bayonet coupling system with standard and reversed pin/socket combinations. A wide selection of backshell accessories, rear housings and dust caps are available. To maintain IP67 rating, the rear of the connectors have a rubber seal, which is pierced upon contact insertion. The seal is held in place by a screw ring (as supplied) which can be replaced with the backshell of appropriate size. For IP67 rating to be maintained, wire insulation diameters should be within the following diameters: Signal wires: 1.7 to 2.7mm, Power wires: 2.7 to 4.0mm. The number of contacts shown as power/signal, e.g.: 2//13.

Features and Benefits


Flanged receptacle pin
Shell size is 16
Robust, cost-effective design
Straight body orientation
Crimp termination method
Water submersible
Durability of 500 mating cycles
Mixes signal and 30A power contacts in one housing
Full interface and cable sealing
Operation temperature ranging between -55°C and 105°C

Applications


Off road vehicles
Truck and bus
Agricultural equipment
Construction equipment
Printing machines
Industrial automation
Stamping machines

Certifications


IP67 rated
UL approved
