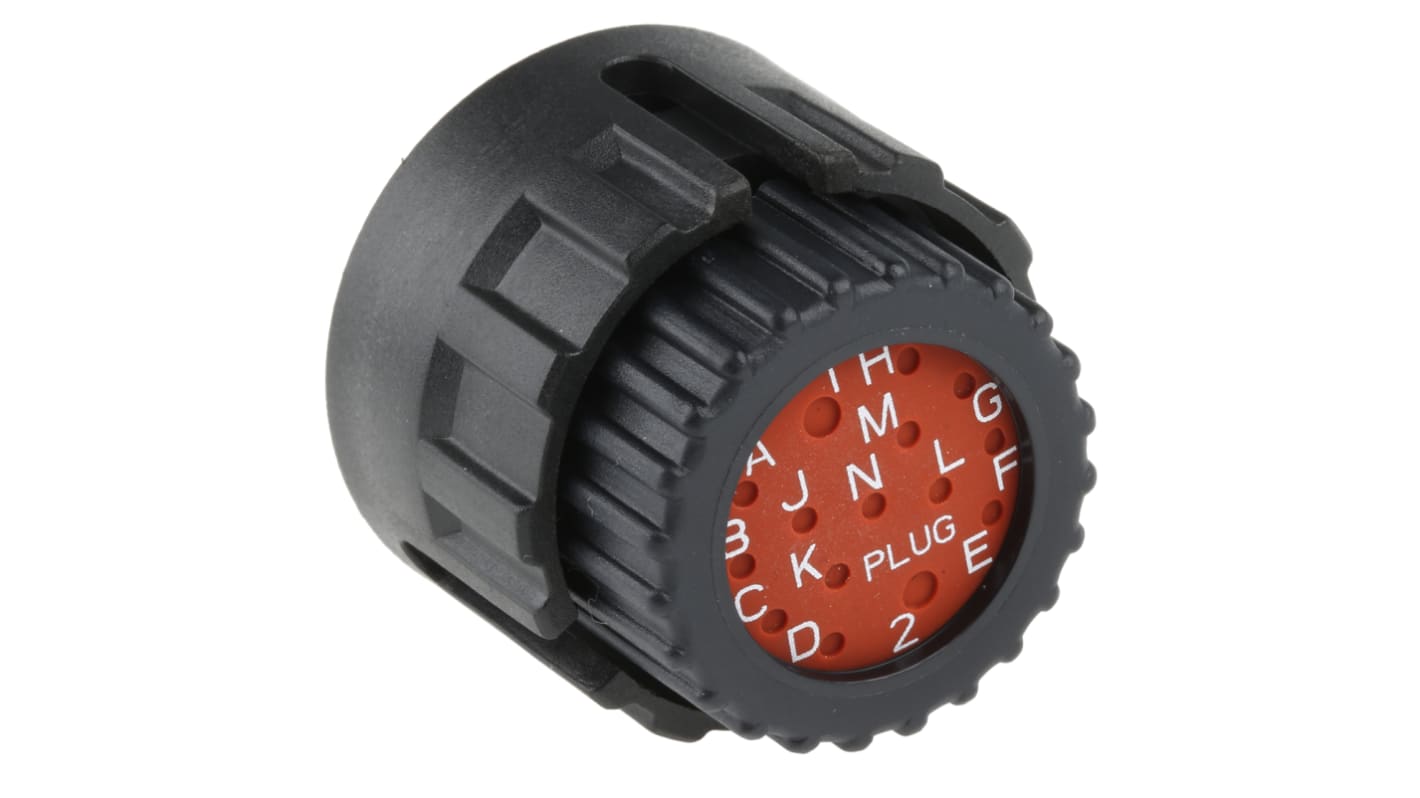

ITT Cannon Circular Connector, 15 Contacts, Cable Mount, Plug, Female, IP67, Trident Neptune Series

View this category
Bulk discount available

Subtotal (1 unit)*

£18.80

(exc. VAT)

£22.56

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 79 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 19£18.80
20 - 39£16.90
40 +£15.24

*price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
RS PRO M12 Anti Vibration Mount with 360kg Compression Load
RS Stock No.
162-3214

Each

£31.53

(exc. VAT)

£37.84

(inc. VAT)

RS Stock No.:
446-6268
Mfr. Part No.:
TN6S16-0213S2L / 192900-0562
Brand:
ITT Cannon
Find similar products by selecting one or more attributes.
Select all

Brand

ITT Cannon

Number of Contacts

15

Mounting Type

Cable Mount

Connector Size

Standard

Plug/Socket

Plug

Contact Gender

Female

Termination Method

Crimp

IP Rating

IP67

Body Orientation

Straight

Series

Trident Neptune

Contact Plating

Nickel

Maximum Operating Temperature

+105°C

Minimum Operating Temperature

-55°C

Contact Material

Copper

Non Compliant

COO (Country of Origin):
HU

Trident Neptune Cable Connectors with Plastic Coupling Ring


From ITT Cannon, the Trident connector system is designed for use in harsh environments. With membrane wire seals and a corrosion resistant plastic coupling ring, this connector is ideal for use in outdoor electronics and automobile applications.

Note

Cable mount plugs only mate with panel sockets and cable mount sockets only mate with panel plugs. Plugs accept pin contacts, Sockets accept socket contacts.


Neptune


Based on Trident Ringlok series, the Neptune range combines power and signal contacts. Widely used in automotive, marine and process control industries, they feature a strong bayonet coupling system with standard and reversed pin/socket combinations. A wide selection of backshell accessories, rear housings and dust caps are available.,To maintain IP67 rating the rear of the connectors have a rubber seal which is pierced upon contact insertion. The seal is held in place by a screw ring (as supplied) which may be replaced with the appropriate size backshell. For IP67 rating to be maintained, wire insulation diameters should be within the following diameters: Signal wires: 1.7 to 2.7mm, Power wires : 2.7 to 4.0mm.,Number of contacts shown as power/signal eg 2//13.
