Bulgin Circular Connector, 4 Contacts, Panel Mount, Socket, Female, IP68, Buccaneer 900 Series
- RS Stock No.:
- 344-4223
- Mfr. Part No.:
- PX0931/04/S
- Brand:
- Bulgin
Bulk discount available
Subtotal (1 unit)*
£33.73
(exc. VAT)
£40.48
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 384 unit(s) ready to ship
- Plus 123 unit(s) shipping from 16 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £33.73 |
| 10 - 49 | £31.00 |
| 50 - 99 | £29.35 |
| 100 + | £27.02 |
*price indicative
- RS Stock No.:
- 344-4223
- Mfr. Part No.:
- PX0931/04/S
- Brand:
- Bulgin
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bulgin | |
| Number of Contacts | 4 | |
| Mounting Type | Panel Mount | |
| Connector Size | Standard | |
| Plug/Socket | Socket | |
| Contact Gender | Female | |
| Termination Method | Screw | |
| IP Rating | IP68 | |
| Current Rating | 25A | |
| Body Orientation | Straight | |
| Series | Buccaneer 900 | |
| Voltage Rating | 600.0 V | |
| Shell Size | 50 | |
| Mating Type | Threaded | |
| Housing Material | Polyamide | |
| Shielded/Unshielded | Unshielded | |
| Contact Plating | Nickel | |
| Strain Relief | No | |
| Minimum Operating Temperature | -40°C | |
| Contact Material | Brass | |
| Series Number | PX0931 | |
| Maximum Operating Temperature | +85°C | |
| Outer Diameter | 50mm | |
Select all | ||
|---|---|---|
Brand Bulgin | ||
Number of Contacts 4 | ||
Mounting Type Panel Mount | ||
Connector Size Standard | ||
Plug/Socket Socket | ||
Contact Gender Female | ||
Termination Method Screw | ||
IP Rating IP68 | ||
Current Rating 25A | ||
Body Orientation Straight | ||
Series Buccaneer 900 | ||
Voltage Rating 600.0 V | ||
Shell Size 50 | ||
Mating Type Threaded | ||
Housing Material Polyamide | ||
Shielded/Unshielded Unshielded | ||
Contact Plating Nickel | ||
Strain Relief No | ||
Minimum Operating Temperature -40°C | ||
Contact Material Brass | ||
Series Number PX0931 | ||
Maximum Operating Temperature +85°C | ||
Outer Diameter 50mm | ||
- COO (Country of Origin):
- TN
Bulgin Buccaneer 900 Series Circular Connector, 4 Contacts, IP68 - PX0931/04/S
This panel mount connector is designed for robust performance in harsh environments. It features a standard socket configuration with four contacts, ensuring strong electrical connections. The connector has a durable plastic body and is compatible with panel thicknesses ranging from 3mm to 7mm, making it ideal for various applications where space and reliability are crucial.
Features & Benefits
• Waterproof and dustproof to IP68 when mated
• Positive fast-acting locking ring, easy to operate
• High current rating of 25A supports various applications
• Suitable for use with 10AWG to 14AWG conductors
• Single hole fitting with anti-rotation key for stability
• Supplied with a high-grade sealing gasket for added reliability
• Positive fast-acting locking ring, easy to operate
• High current rating of 25A supports various applications
• Suitable for use with 10AWG to 14AWG conductors
• Single hole fitting with anti-rotation key for stability
• Supplied with a high-grade sealing gasket for added reliability
Applications
• Installed in outdoor electrical equipment enclosures
• Designed for use in industrial machinery connections
• Ideal for connections in harsh weather environments
• Designed for use in industrial machinery connections
• Ideal for connections in harsh weather environments
What are the temperature limits for operational reliability?
The connector operates effectively between -40°C and +85°C, ensuring reliability in extreme conditions without performance degradation.
How does the sealing mechanism contribute to its function?
The high-grade sealing gasket ensures that the connector maintains its IP68 rating, protecting against dust and water ingress for enhanced durability.
Can this connector accommodate different conductor sizes?
Yes, it is capable of accommodating conductors from 2.5mm² to 4mm², making it versatile for various electrical configurations and needs.
What methods are recommended for installation to ensure optimal performance?
Proper mounting using the anti-rotation key and ensuring tightness of the coupling will promote optimal performance and reliability during use.
Approvals
UL

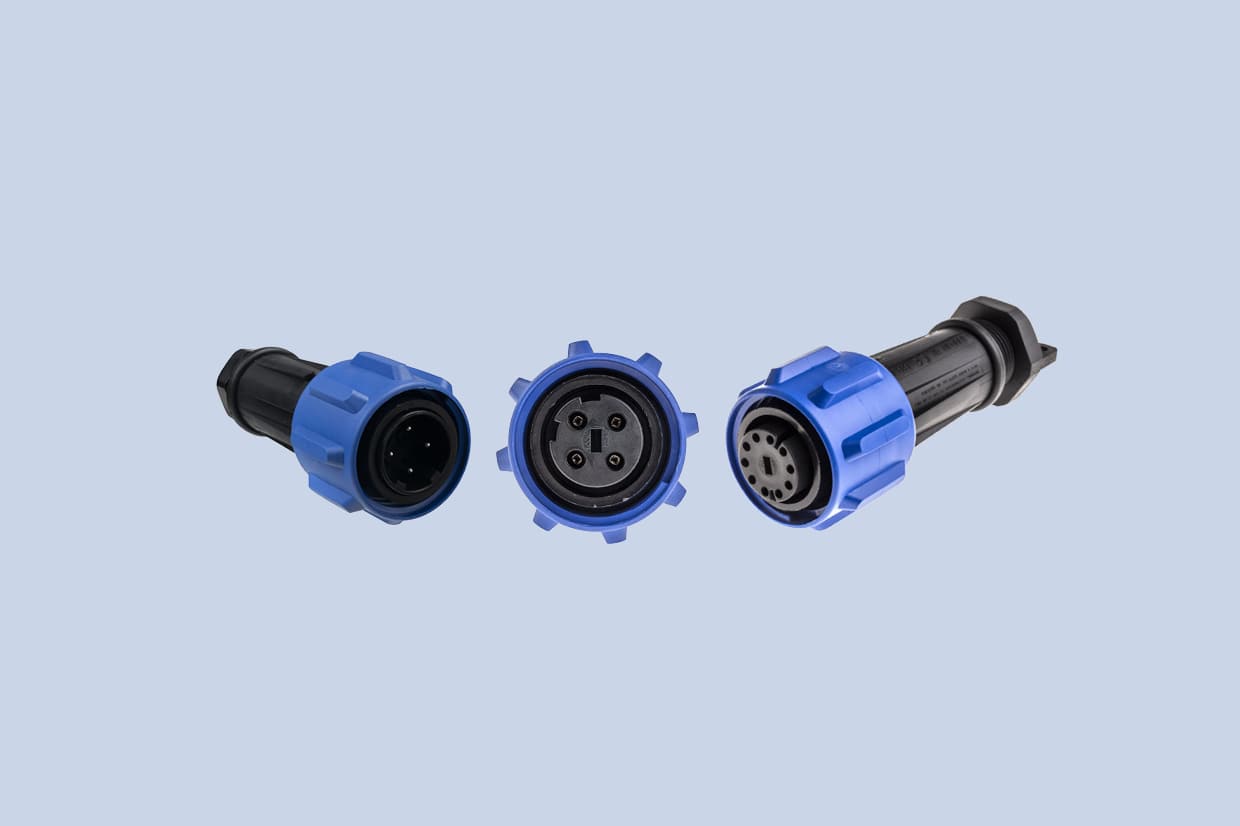

Maxi Buccaneer
Heavy duty, rugged connectors, suitable for single and three phase,applications in a variety of harsh environments such as sewage and water works, construction sites, gas/petrol chemical works, external lighting, HVAC equipment and general industrial uses. Based on the standard and Mini Buccaneer series, these connectors offer versatile configurations with interchangeable plug and socket inserts.
Water and dustproof
Leading earth pin
Scoop proof contacts
Easy assembly, no special tooling required
Field serviceable, screw termination
Positive locking keyways, cannot be mis-mated
Bulkhead adaptor suitable for 45° or 90° mounting with Flange Plugs & Sockets
Leading earth pin
Scoop proof contacts
Easy assembly, no special tooling required
Field serviceable, screw termination
Positive locking keyways, cannot be mis-mated
Bulkhead adaptor suitable for 45° or 90° mounting with Flange Plugs & Sockets
