MPN

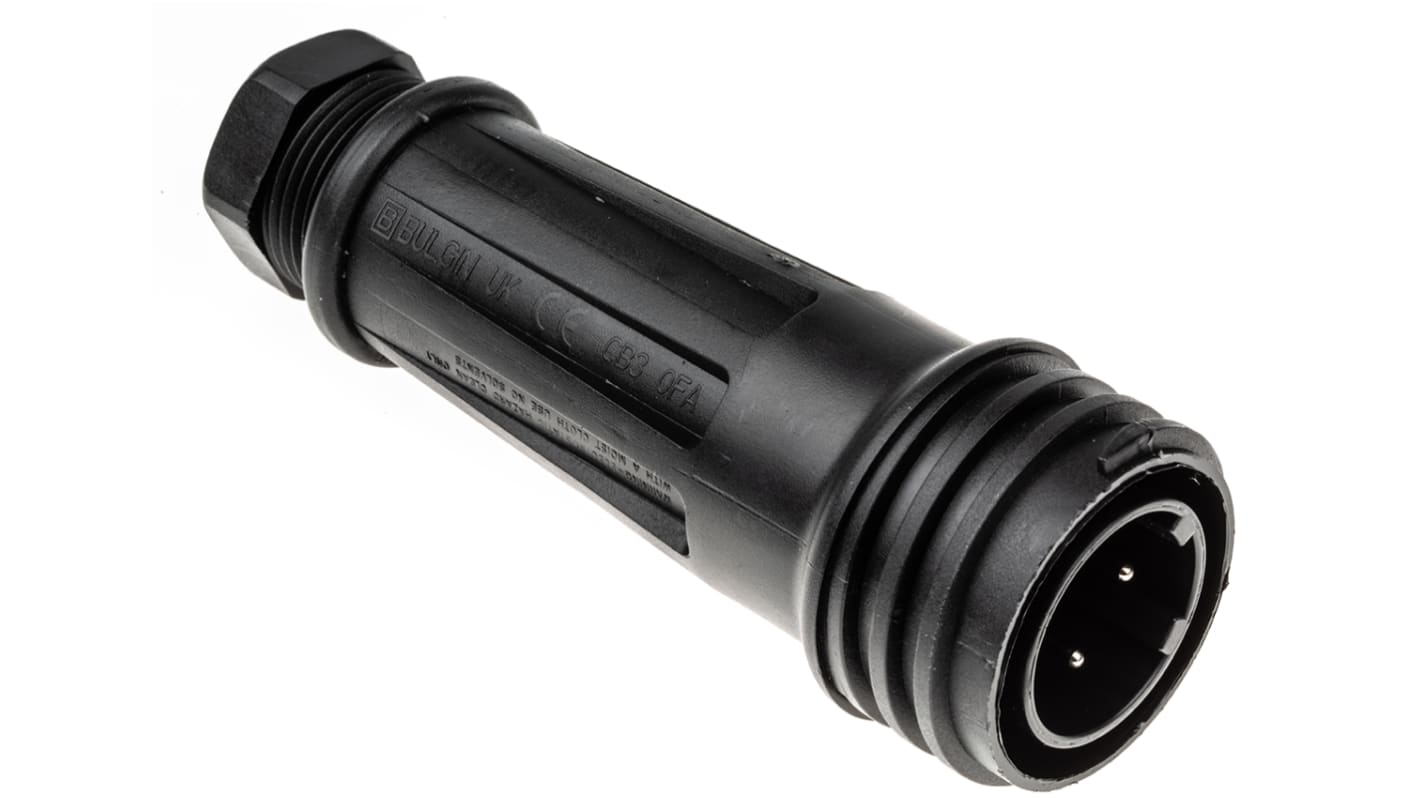

Bulgin Circular Connector, 4 Contacts, Cable Mount, Plug, Male, IP68, Buccaneer 900 Series

RS Stock No.:: 344-4093
Distrelec Article No.:: 302-14-974
Mfr. Part No.:: PX0921/04/P
Brand:: Bulgin

Bulgin Circular Connector, 4 Contacts, Cable Mount, Plug, Male, IP68, Buccaneer 900 Series

Subtotal (1 unit)*

£23.66

(exc. VAT)

£28.39

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

649 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£23.66

*price indicative

RS Stock No.:: 344-4093
Distrelec Article No.:: 302-14-974
Mfr. Part No.:: PX0921/04/P
Brand:: Bulgin

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Bulgin
	Number of Contacts	4
	Mounting Type	Cable Mount
	Connector Size	Standard
	Plug/Socket	Plug
	Contact Gender	Male
	Termination Method	Screw
	IP Rating	IP68
	Current Rating	32.0A
	Body Orientation	Straight
	Series	Buccaneer 900
	Voltage Rating	600.0 V
	Mating Type	Threaded
	Shell Size	46
	Housing Material	Polyamide
	Contact Plating	Nickel
	Shielded/Unshielded	Unshielded
	Strain Relief	No
	Minimum Operating Temperature	-40°C
	Outer Diameter	46mm
	Series Number	PX0921
	Maximum Operating Temperature	+85°C
	Contact Material	Brass

	Select all
	Brand Bulgin
	Number of Contacts 4
	Mounting Type Cable Mount
	Connector Size Standard
	Plug/Socket Plug
	Contact Gender Male
	Termination Method Screw
	IP Rating IP68
	Current Rating 32.0A
	Body Orientation Straight
	Series Buccaneer 900
	Voltage Rating 600.0 V
	Mating Type Threaded
	Shell Size 46
	Housing Material Polyamide
	Contact Plating Nickel
	Shielded/Unshielded Unshielded
	Strain Relief No
	Minimum Operating Temperature -40°C
	Outer Diameter 46mm
	Series Number PX0921
	Maximum Operating Temperature +85°C
	Contact Material Brass

Bulgin Buccaneer 900 Series Circular Connector, 32A Current Rating, 600.0V Voltage Rating - PX0921/04/P

This inline cable connector is designed to provide reliable power connections in challenging environments. Engineered for durability, it features a robust polyamide housing and can accommodate cables ranging from 7mm to 9mm in diameter. With an impressive IP68 rating, this waterproof electrical connector ensures protection against dust and water ingress, making it ideal for various applications.

Features & Benefits

• IP68 rated connector ensures reliable performance in wet conditions
• Screw termination connector offers easy and secure installation
• 4-pin circular plug enables efficient electrical connectivity
• High current capacity with a maximum rating of 32A
• Polyamide connector housing provides excellent mechanical strength
• Designed for straightforward operation with a positive locking mechanism

Applications

• Used for connecting equipment in outdoor environments
• Ideal for automation systems requiring high current connections
• Suitable for electrical installations in damp or dusty conditions
• Compatible with PX0911 series flex connectors for versatile

What cabling specifications are required for optimal performance?

The connector is compatible with cable sizes accommodating 7mm to 9mm, with the capability to accept 2.6mm² to 4mm² conductors, ensuring adequate connection for various applications.

How does this connector maintain its performance in extreme temperatures?

Operating temperatures range from -40°C to +85°C, allowing for effective performance in diverse environmental conditions, from freezing temperatures to high heat situations.

Can this connector be easily mated and unmated in various conditions?

Yes, the positive fast-acting locking ring allows for easy handling, even while wearing gloves, facilitating quick connections and disconnections as needed.

What material is used for the contact to enhance durability?

The male circular connector is fitted with brass contacts, ensuring high conductivity and resistance to corrosion, which is crucial for long-lasting performance.

Approvals

UL; VDE

Maxi Buccaneer

Heavy duty, rugged connectors, suitable for single and three phase,applications in a variety of harsh environments such as sewage and water works, construction sites, gas/petrol chemical works, external lighting, HVAC equipment and general industrial uses. Based on the standard and Mini Buccaneer series, these connectors offer versatile configurations with interchangeable plug and socket inserts.

Water and dustproof
Leading earth pin
Scoop proof contacts
Easy assembly, no special tooling required
Field serviceable, screw termination
Positive locking keyways, cannot be mis-mated
Bulkhead adaptor suitable for 45° or 90° mounting with Flange Plugs & Sockets
