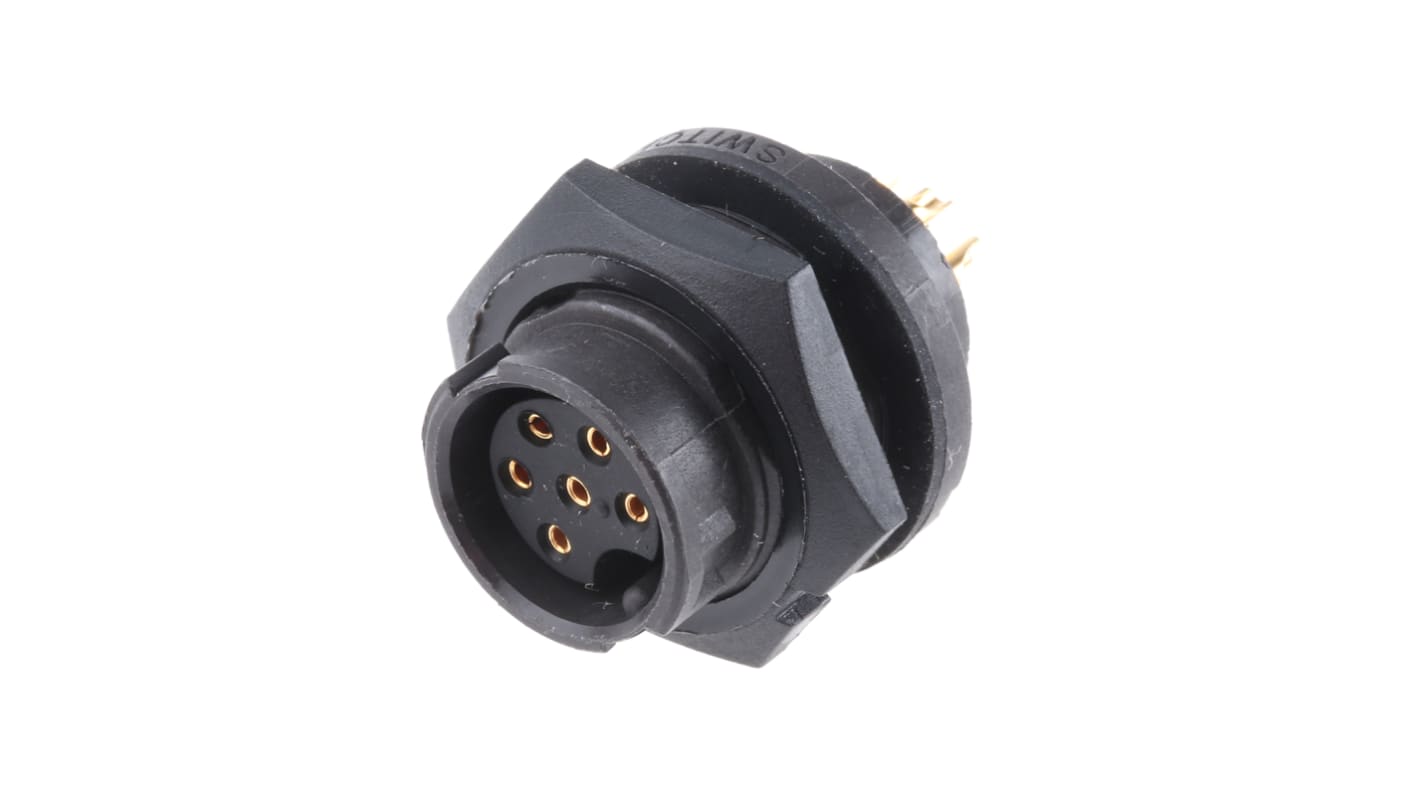

Switchcraft Circular Connector, 6 Contacts, Panel Mount, Socket, Female, IP68, IP69K, EN3 Series

View this category
Bulk discount available

Subtotal (1 unit)*

£23.46

(exc. VAT)

£28.15

(inc. VAT)

Add to Basket
Select or type quantity
Limited stock
  • 15 left, ready to ship
  • Plus 4 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£23.46
10 - 49£22.81
50 - 99£22.20
100 - 249£21.61
250 +£21.05

*price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
Switchcraft Circular Connector, 6 Contacts, Cable Mount, Socket, Female, IP68, IP69K, EN3 Series
RS Stock No.
307-9986

Each

£26.31

(exc. VAT)

£31.57

(inc. VAT)

RS Stock No.:
308-0021
Mfr. Part No.:
EN3P6FX
Brand:
Switchcraft
Find similar products by selecting one or more attributes.
Select all

Brand

Switchcraft

Number of Contacts

6

Mounting Type

Panel Mount

Connector Size

Standard

Plug/Socket

Socket

Contact Gender

Female

Termination Method

Solder

IP Rating

IP68, IP69K

Series

EN3

Body Orientation

Straight

Voltage Rating

600.0 V

Contact Plating

Gold over Nickel

Contact Material

Copper

COO (Country of Origin):
US

Panel mount


From Switchcraft, this EN3 Series panel mount connector boasts secure connection and exceptional environmental qualities- surpassing Coast Guard requirements in terms of water-tightness.

Note

Cable connectors will mate with in-line connectors and panel connectors (plug to socket or vice-versa). In-line connectors do NOT mate with panel connectors.


Switchcraft EN3 and EN2 Series


Mini weather-tight connectors with integral O-ring and gasket, offering superior leakage protection and low part count. When mated or covered, the IP68 rating makes them ideal for use in process control, marine, medical instrumentation, transportation, industrial electronic applications and similar hostile environments.,A polarising keyway and 1//4 turn locking mechanism prevent misalignment and unintentional disconnection. Cable mounting assemblies feature a snap-in place strain relief mechanism. Thermoplastic rubber boots push fit over the rear of the connector and provide further strain relief for cables up to 6.7mm dia.Optional protective cap available separately for panel plugs and sockets when not in use.

Note

Cable connectors will mate with in-line connectors and panel connectors (plug to socket or vice-versa). In-line connectors do NOT mate with panel connectors.
