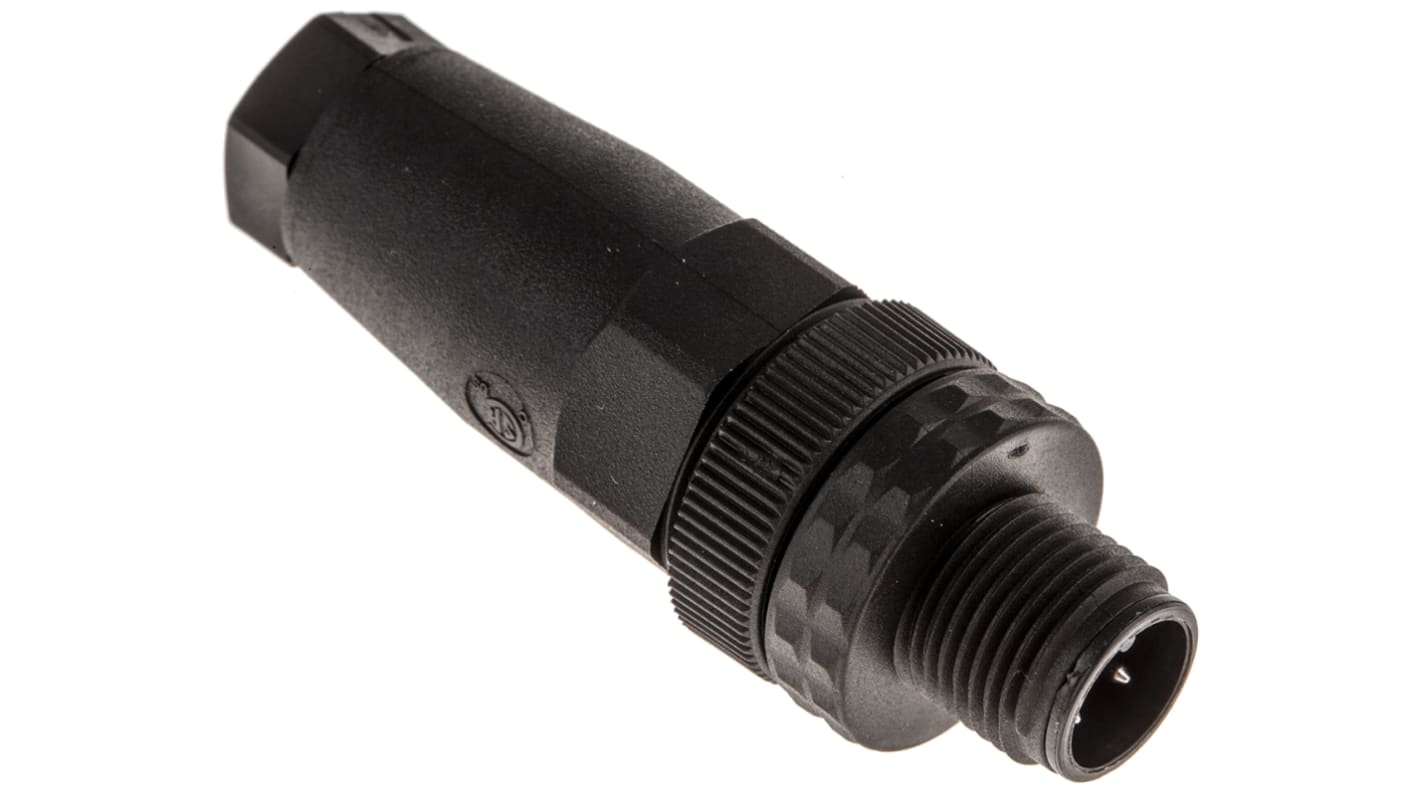

Hirschmann Circular Connector, 4 Contacts, Cable Mount, M12 Connector, Plug, Male, IP67, E Series
- RS Stock No.:
- 290-6562
- Mfr. Part No.:
- 933727100 ELST 4012 K PG7
- Brand:
- Hirschmann
Bulk discount available
Subtotal (1 unit)*
£9.21
(exc. VAT)
£11.05
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 804 unit(s) ready to ship
- Plus 42 unit(s) ready to ship from another location
- Plus 10 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £9.21 |
5 - 9 | £8.75 |
10 - 49 | £8.29 |
50 + | £7.84 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£11.41
(exc. VAT)
£13.69
(inc. VAT)
- RS Stock No.:
- 290-6562
- Mfr. Part No.:
- 933727100 ELST 4012 K PG7
- Brand:
- Hirschmann
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Hirschmann | |
Number of Contacts | 4 | |
Mounting Type | Cable Mount | |
Connector Size | M12 | |
Plug/Socket | Plug | |
Contact Gender | Male | |
Termination Method | Screw | |
IP Rating | IP67 | |
Current Rating | 4.0A | |
Series | E | |
Body Orientation | Straight | |
Coding | A | |
Voltage Rating | 250.0 V | |
Mating Type | A Coded | |
Shell Size | M12 | |
Housing Material | Polymer | |
Strain Relief | Yes | |
Contact Plating | Tin | |
Minimum Operating Temperature | -25°C | |
Maximum Operating Temperature | +90°C | |
Contact Material | Brass | |
Select all | ||
---|---|---|
Brand Hirschmann | ||
Number of Contacts 4 | ||
Mounting Type Cable Mount | ||
Connector Size M12 | ||
Plug/Socket Plug | ||
Contact Gender Male | ||
Termination Method Screw | ||
IP Rating IP67 | ||
Current Rating 4.0A | ||
Series E | ||
Body Orientation Straight | ||
Coding A | ||
Voltage Rating 250.0 V | ||
Mating Type A Coded | ||
Shell Size M12 | ||
Housing Material Polymer | ||
Strain Relief Yes | ||
Contact Plating Tin | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +90°C | ||
Contact Material Brass | ||
- COO (Country of Origin):
- HU
Belden Hirschmann Circular Connector, Straight Body Orientation, Clamping Cage Strain Relief - E Series - 933727100 ELST 4012 K PG7
Shield your sensor wires from wear and impact using this circular connector from Belden Hirschmann. It's made of durable PA that does double duty by providing contact protection and acting as an insulator to prevent electric shocks. The unit's PG7 gland size makes it the right fit for medium-sized cables. As it comes with a Viton/NBR O-ring to block out dust and contaminants, you get an airtight system for optimal electrical signal transmission.
Features & Benefits
• Broad operating temperature range between -25°C and +90°C for use in challenging settings
• Screw termination is simple and doesn't need complex tools, saving you time and hassle
• Screw termination is simple and doesn't need complex tools, saving you time and hassle
Applications
• Transportation industry
• Industrial conveyors
• Pharmaceutical production
• Industrial conveyors
• Pharmaceutical production
What are the electrical characteristics of this connector?
This piece of kit has a 250V AC/DC voltage rating and a 4A current rating. This makes it suitable for use in standard UK circuits.
