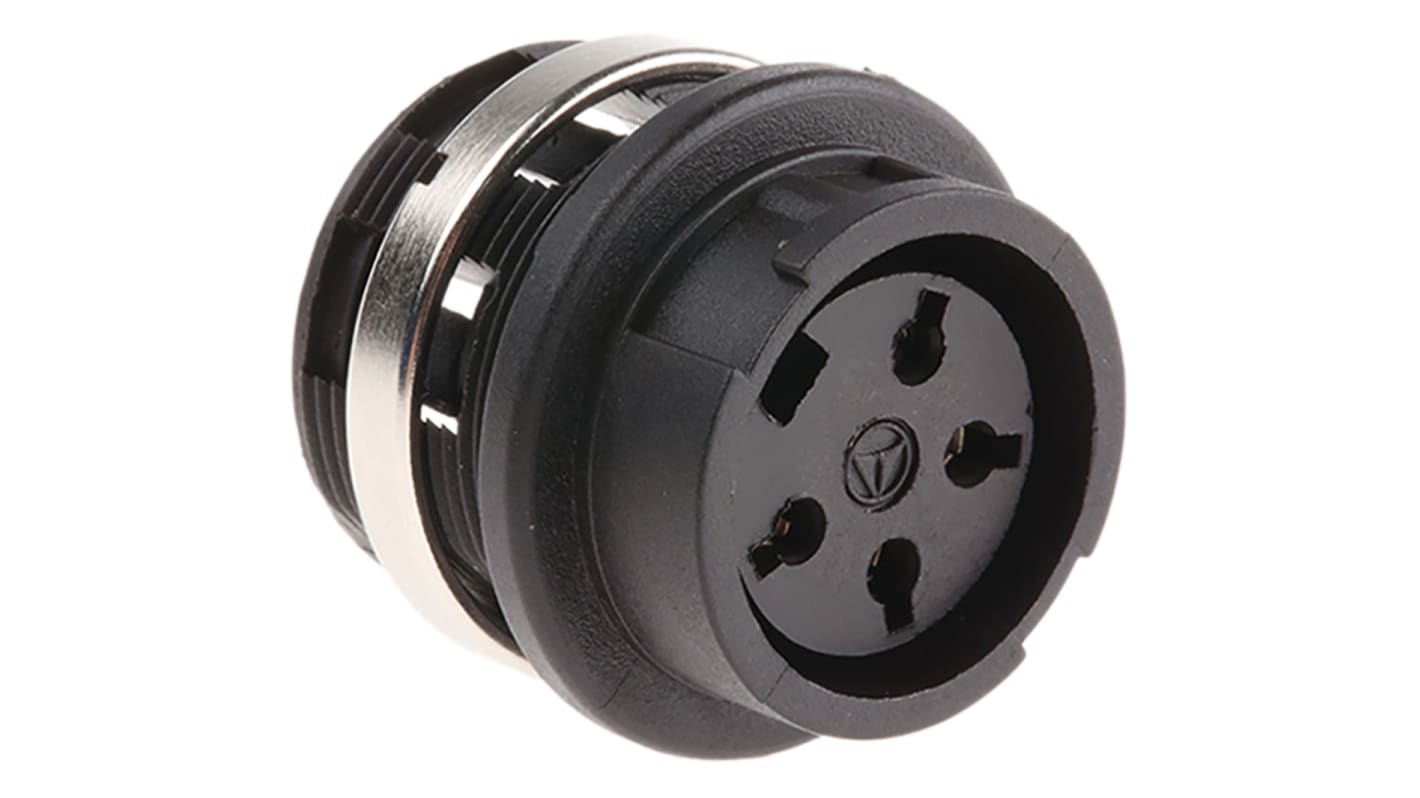

Amphenol Industrial Circular Connector, 4 Contacts, Panel Mount, M16 Connector, Socket, Female, signalmate C091 Series
- RS Stock No.:
- 284-1695
- Distrelec Article No.:
- 142-26-801
- Mfr. Part No.:
- T3327000
- Brand:
- Amphenol Industrial
Bulk discount available
Subtotal (1 unit)*
£18.24
(exc. VAT)
£21.89
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 75 unit(s) ready to ship
- Plus 22 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £18.24 |
10 - 49 | £17.91 |
50 - 99 | £17.48 |
100 + | £17.18 |
*price indicative
- RS Stock No.:
- 284-1695
- Distrelec Article No.:
- 142-26-801
- Mfr. Part No.:
- T3327000
- Brand:
- Amphenol Industrial
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Amphenol Industrial | |
Number of Contacts | 4 | |
Mounting Type | Panel Mount | |
Connector Size | M16 | |
Plug/Socket | Socket | |
Contact Gender | Female | |
Termination Method | Solder | |
Current Rating | 5.0A | |
Series | signalmate C091 | |
Body Orientation | Straight | |
Voltage Rating | 300.0 V | |
Contact Plating | Silver | |
Strain Relief | Yes | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +100°C | |
Select all | ||
---|---|---|
Brand Amphenol Industrial | ||
Number of Contacts 4 | ||
Mounting Type Panel Mount | ||
Connector Size M16 | ||
Plug/Socket Socket | ||
Contact Gender Female | ||
Termination Method Solder | ||
Current Rating 5.0A | ||
Series signalmate C091 | ||
Body Orientation Straight | ||
Voltage Rating 300.0 V | ||
Contact Plating Silver | ||
Strain Relief Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +100°C | ||
Panel Socket, Ring Nut
Length 29mm diameter 21mm
Approvals
UL Recognised


Approvals
UL
C091B - Plastic
Amphenol C091B DIN connectors feature bayonet locking and a plastic outer shell which houses an internal metal snap together contact housing. Cable strain relief is provided by internal screw cable clamp and rubber boot. Termination is solder bucket.,Cable sockets only mate with cable plugs so that in-line connections can be achieved. Cable plug mates with both types of panel mount socket. The screw strain relief and rubber boot can accommodate cable to 6mm diameter.,Two types of panel socket are offered. One has butterfly wings which means the socket can be pushed through and will snap into position. The other uses a conventional ring nut to screw tighten the socket (use the same spanner as for C091D metal screwlocking DIN connectors). Maximum panel thickness for butterfly mount is 1.5mm.
