RS PRO Circular Connector, 17 Contacts, Flange Mount, Socket, Male, IP67

View this category
Save 8% when you buy 25 units

Subtotal (1 unit)*

£17.04

(exc. VAT)

£20.45

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 7 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£17.04
5 - 9£16.71
10 - 24£16.36
25 +£15.56

*price indicative

RS Stock No.:
250-6250
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Number of Contacts

17

Mounting Type

Flange Mount

Connector Size

Standard

Plug/Socket

Socket

Contact Gender

Male

Termination Method

Solder

IP Rating

IP67

Current Rating

10A

Series

SY29

Body Orientation

Straight

Voltage Rating

500V

Mating Type

Bayonet

Housing Material

Nylon 66, PC

Pole Format

17P

Strain Relief

No

Contact Plating

Gold

Outer Diameter

13→16mm

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

COO (Country of Origin):
CN

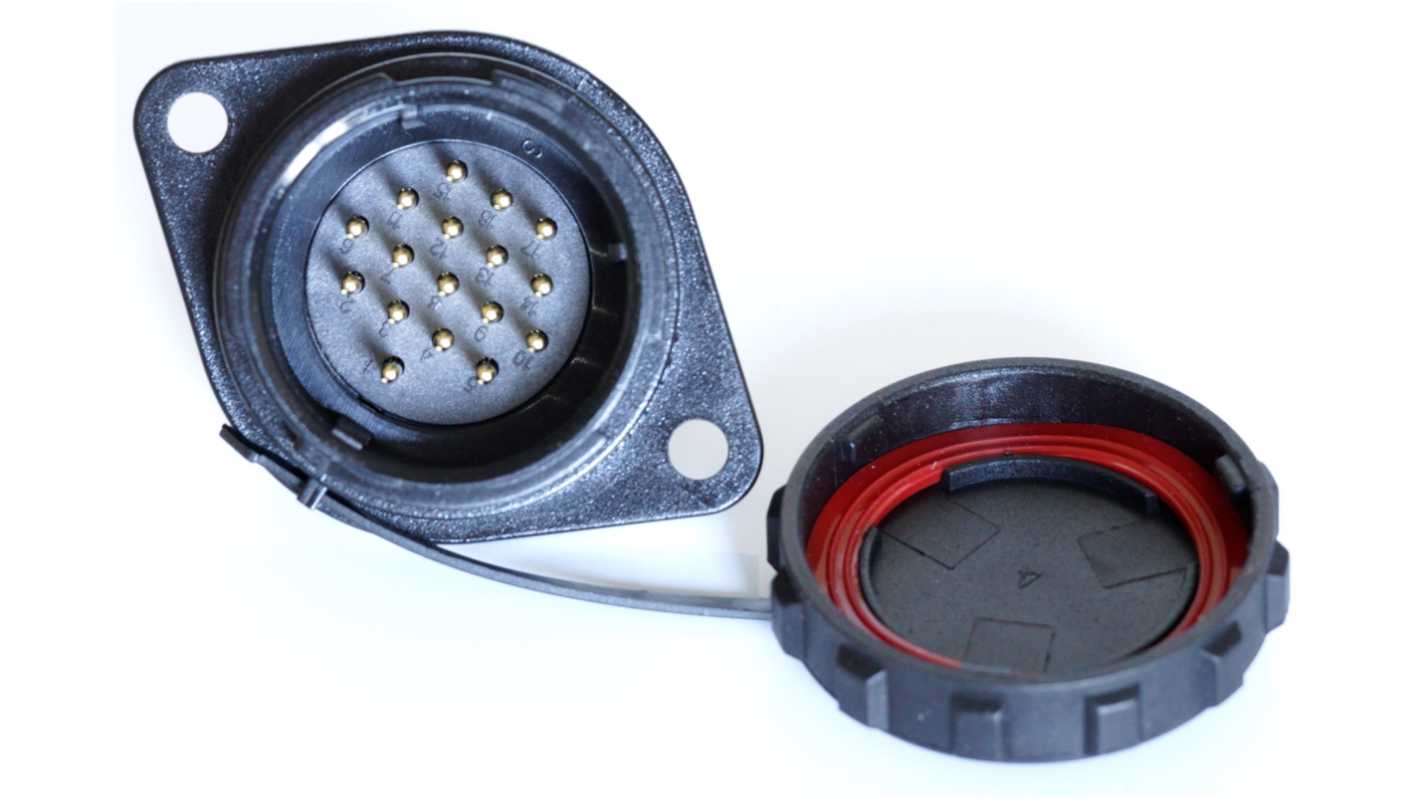

RS PRO 17 Pole 10A Flanged Panel Mount Connector (SY29)


RS PRO SY29 series of connectors offer a reliable way to panel mount wire connections in industrial and automated applications.

Complete with a secure flanged design and a quick connecting bayonet fitting it is simple and easy to connect to and features numbered receptacles reducing soldering errors and saving time and rework.

Constructed from a fire-resistant Polycarbonate and Nylon shell protecting Gold Plated Brass contacts and an Ingress Protection rating of IP67 the RS PRO industrial connector is designed for use in harsh and heavy-duty environments.

Features and benefits


  • IP67 rating

  • Panel mount

  • Bayonet coupling

  • Maximum wire size of <2mm (14AWG)

  • 28mm diameter Panel Cut Out

Suitable Applications


  • Factory and Industrial Automation

  • Manufacturing

  • Process Control

  • Industrial networking
