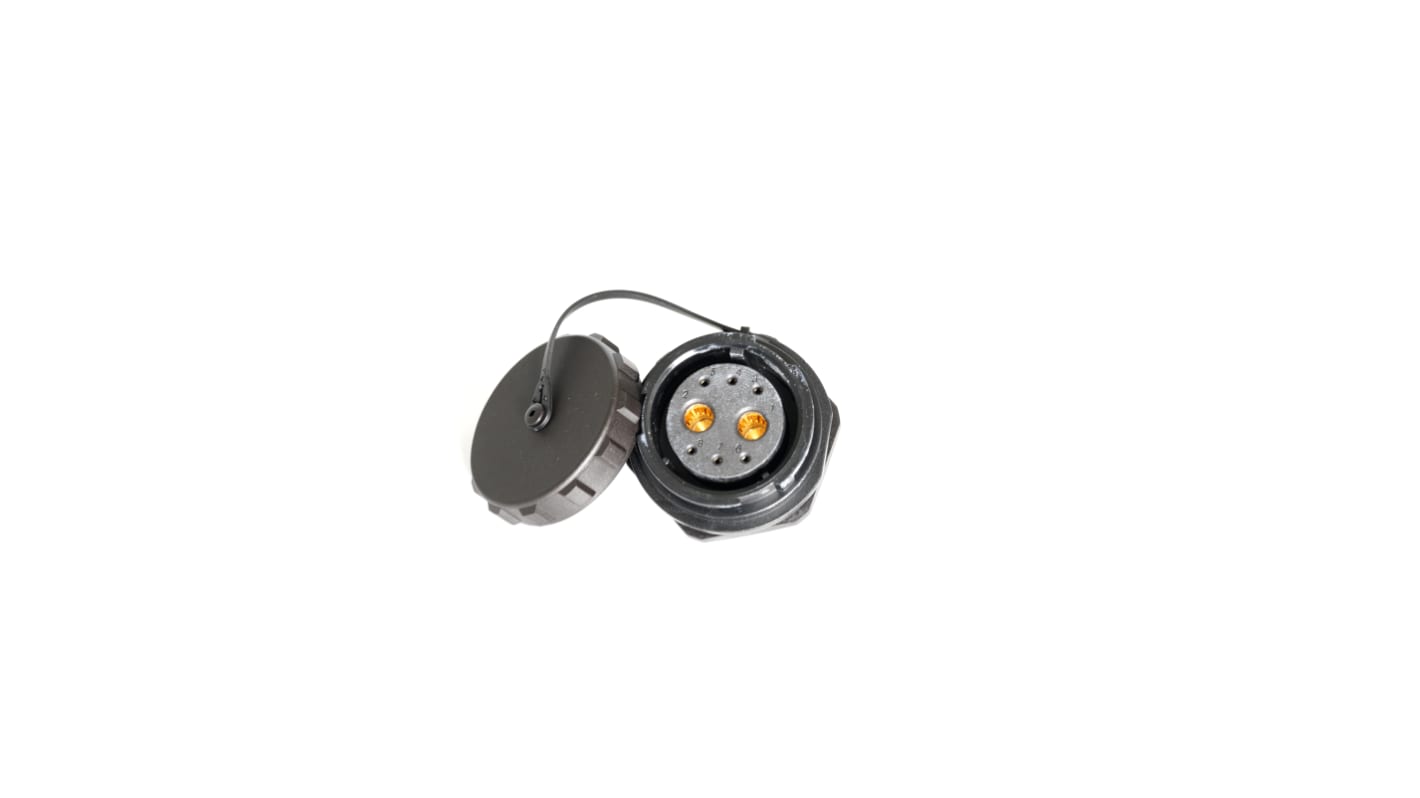

RS PRO Circular Connector, 8 Contacts, Front Mount, Socket, Female, IP67

View this category
Bulk discount available

Subtotal (1 unit)*

£17.04

(exc. VAT)

£20.45

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 9 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£17.04
5 - 9£16.71
10 - 24£16.36
25 +£15.56

*price indicative

RS Stock No.:
250-6245
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Number of Contacts

8

Mounting Type

Front Mount

Connector Size

Standard

Plug/Socket

Socket

Contact Gender

Female

Termination Method

Solder

IP Rating

IP67

Current Rating

60 + 5A

Series

SY29

Body Orientation

Straight

Voltage Rating

500 + 400V

Mating Type

Bayonet

Housing Material

Nylon 66, PC

Pole Format

2 + 6P

Contact Plating

Gold

Strain Relief

No

Minimum Operating Temperature

-40°C

Outer Diameter

13→16mm

Maximum Operating Temperature

85°C

COO (Country of Origin):
CN

RS PRO 2 + 6 Pole 60A Panel Mount Connector (SY29)


RS PRO SY29 series of connectors offer a reliable way to panel mount wire connections in industrial and automated applications.

Complete with a quick secure bayonet fitting it is simple and quick to connect to and features numbered receptacles reducing soldering errors and saving time and rework.

Constructed from a fire-resistant Polycarbonate and Nylon shell protecting Gold Plated Brass contacts and an Ingress Protection rating of IP67 the RS PRO industrial connector is designed for use in harsh and heavy-duty environments.

Features and benefits


  • IP67 rating

  • Panel mount

  • Bayonet coupling

  • Maximum wire size of <16mm (5AWG)

  • 29.2 x 26.2mm Panel Cut Out

  • 41mm Diameter front

Suitable Applications


  • Factory and Industrial Automation

  • Manufacturing

  • Process Control

  • Industrial networking
