- RS Stock No.:
- 250-6066
- Brand:
- RS PRO
8 In stock - FREE next working day delivery available
Added
Price Each
£6.28
(exc. VAT)
£7.54
(inc. VAT)
Units | Per unit |
1 - 4 | £6.28 |
5 - 9 | £6.16 |
10 - 24 | £6.03 |
25 + | £5.72 |
- RS Stock No.:
- 250-6066
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

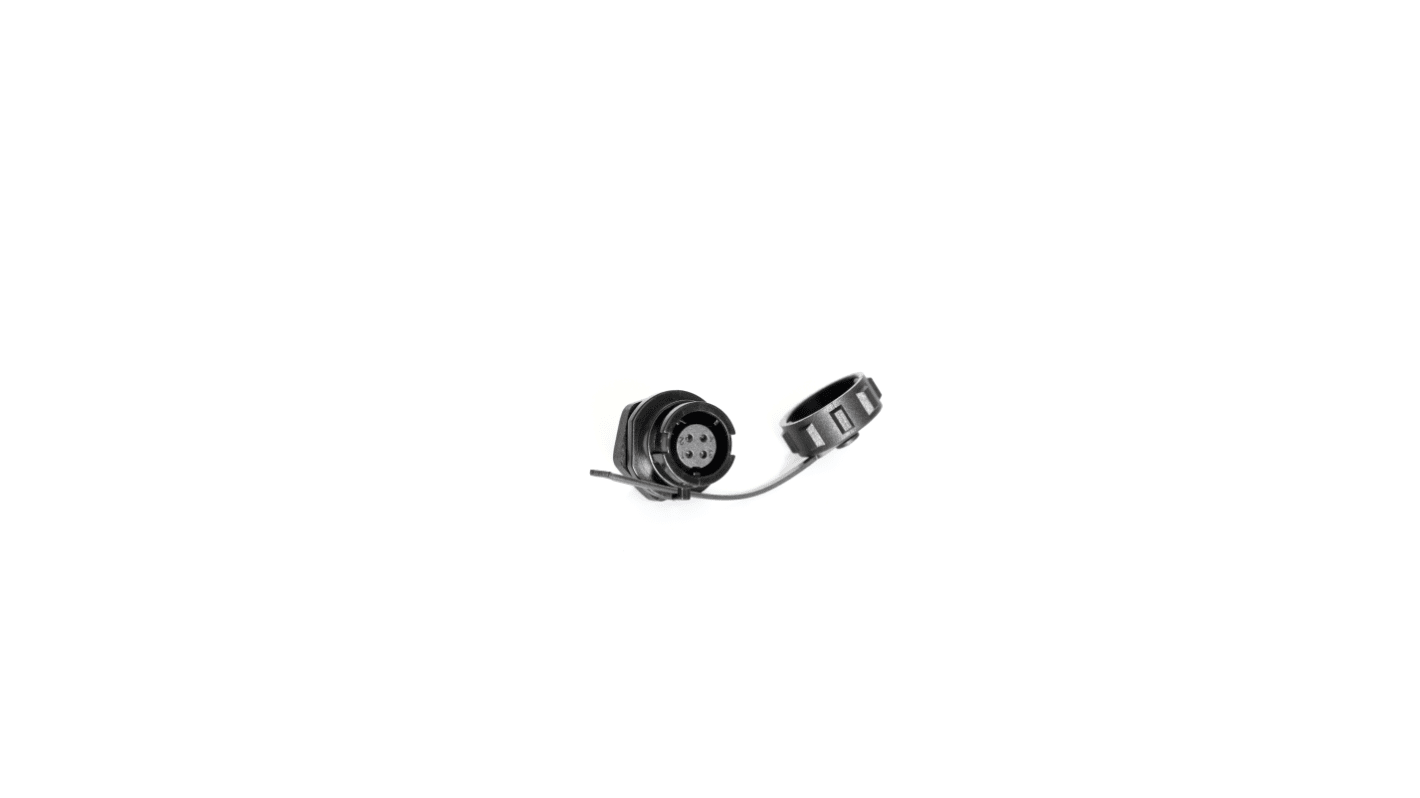

RS PRO 5 Pole 3 A Panel Mount Connector (SY11)
RS PRO SY11 series of connectors offer a reliable way to panel mount wire connections in industrial and automated applications.
Complete with a quick secure bayonet fitting it is simple and quick to connect to and features numbered receptacles reducing soldering errors and saving time and rework.
Constructed from a fire-resistant Polycarbonate and Nylon shell protecting Gold Plated Brass contacts and an Ingress Protection rating of IP67 the RS PRO industrial connector is designed for use in harsh and heavy-duty environments.
Features and benefits
- IP67 rating
- Panel mount
- Bayonet coupling
- Maximum wire size of <0.5mm (20AWG)
- 11 x 9.9mm Panel Cut Out
- 17.5mm Diameter front
Suitable Applications
- Factory and Industrial Automation
- Manufacturing
- Process Control
- Industrial networking
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
Specifications
Attribute | Value |
---|---|
Number of Contacts | 5 |
Mounting Type | Panel Mount |
Connector Size | Standard |
Plug/Socket | Plug |
Contact Gender | Male |
Termination Method | Solder |
IP Rating | IP67 |
Current Rating | 3A |
Body Orientation | Straight |
Series | SY11 |
Voltage Rating | 125 V |
Mating Type | Bayonet |
Pole Format | 5P |
