LEMO Circular Connector, 7 Contacts, Cable Mount, Socket, Female, IP50, 1B Series
- RS Stock No.:
- 248-4034
- Mfr. Part No.:
- PHG.1B.307.CLLD62Z
- Brand:
- LEMO
Bulk discount available
Subtotal (1 unit)*
£38.42
(exc. VAT)
£46.10
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 68 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
- Plus 25 unit(s) shipping from 29 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £38.42 |
5 - 9 | £37.27 |
10 - 19 | £36.12 |
20 - 49 | £34.97 |
50 + | £33.03 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£38.42
(exc. VAT)
£46.10
(inc. VAT)
- RS Stock No.:
- 248-4034
- Mfr. Part No.:
- PHG.1B.307.CLLD62Z
- Brand:
- LEMO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | LEMO | |
Number of Contacts | 7 | |
Mounting Type | Cable Mount | |
Plug/Socket | Socket | |
Contact Gender | Female | |
Termination Method | Solder | |
IP Rating | IP50 | |
Current Rating | 7.0A | |
Body Orientation | Straight | |
Series | 1B | |
Shell Size | 1 | |
Housing Material | Brass | |
Minimum Operating Temperature | -55°C | |
Maximum Operating Temperature | +250°C | |
Select all | ||
---|---|---|
Brand LEMO | ||
Number of Contacts 7 | ||
Mounting Type Cable Mount | ||
Plug/Socket Socket | ||
Contact Gender Female | ||
Termination Method Solder | ||
IP Rating IP50 | ||
Current Rating 7.0A | ||
Body Orientation Straight | ||
Series 1B | ||
Shell Size 1 | ||
Housing Material Brass | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +250°C | ||
- COO (Country of Origin):
- CH

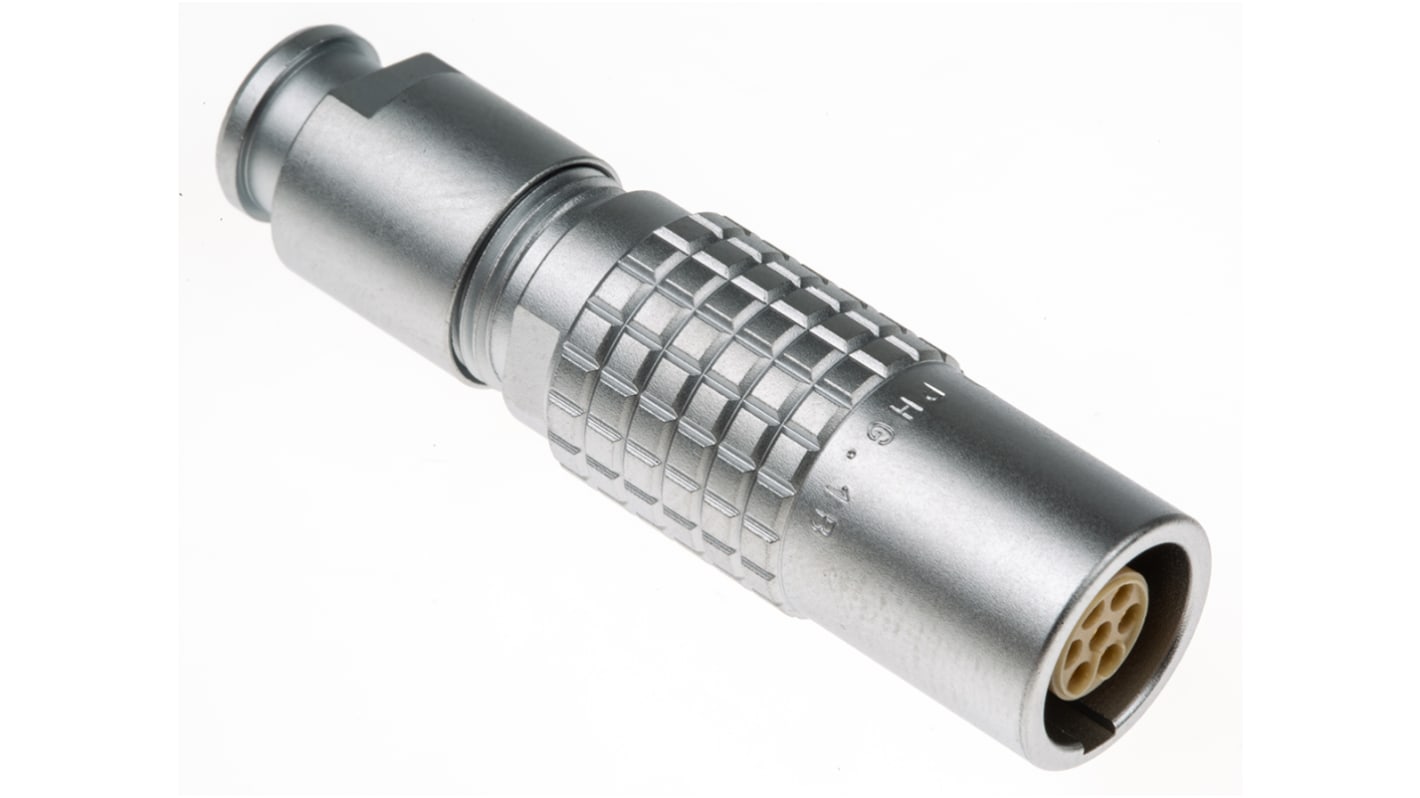

Lemo Circular Connector
The Lemo 1B series 7-contacts female circular connector has a socket in-line connection. This cable mount connector has a current rating of up to 7A per contact. This connector features a highly precise push-pull self-latching system equipped with a cable collet and nut for fitting a bend relief for an easy and secure connection. This connector is made from chrome-plated brass that includes a nickel-plated brass latch inner sleeve and collet nut.
Cable plug and socket
From Lemo, this FGG 1B class connector is well suited for most applications and features a 'push-pull' latching mechanism for an easy and secure connection. With a rugged design, this connector is not only manufactured with precision quality in mind, but also durability.
Cable plug and socket
From Lemo, this FGG 1B class connector is well suited for most applications and features a 'push-pull' latching mechanism for an easy and secure connection. With a rugged design, this connector is not only manufactured with precision quality in mind, but also durability.
Features and Benefits
Straight body orientation
Solder termination
Cable acceptance ranges between 5.30mm and 6.20mm
EMC shielding
Endurance is 5000 mating cycles
G keyed
High vibration and shock resistance
Operating temperature ranges between -55°C and 250°C
PEEK insulating material
Shell size is 1mm
Solder termination
Cable acceptance ranges between 5.30mm and 6.20mm
EMC shielding
Endurance is 5000 mating cycles
G keyed
High vibration and shock resistance
Operating temperature ranges between -55°C and 250°C
PEEK insulating material
Shell size is 1mm
Applications
Medical devices
Research
Test and measurement instrumentation
Research
Test and measurement instrumentation
Certifications
IP50 rated
UL approved
UL approved
