BALLUFF Circular Connector, 5 Contacts, Cable Mount, M12 Connector, Socket, IP67
- RS Stock No.:
- 242-0047
- Mfr. Part No.:
- BCC06ZH
- Brand:
- BALLUFF
Subtotal (1 unit)*
£7.02
(exc. VAT)
£8.42
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 35 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £7.02 |
*price indicative
- RS Stock No.:
- 242-0047
- Mfr. Part No.:
- BCC06ZH
- Brand:
- BALLUFF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | BALLUFF | |
Number of Contacts | 5 | |
Mounting Type | Cable Mount | |
Connector Size | M12 | |
Plug/Socket | Socket | |
Termination Method | Screw | |
IP Rating | IP67 | |
Body Orientation | Right Angle | |
Coding | A | |
Select all | ||
---|---|---|
Brand BALLUFF | ||
Number of Contacts 5 | ||
Mounting Type Cable Mount | ||
Connector Size M12 | ||
Plug/Socket Socket | ||
Termination Method Screw | ||
IP Rating IP67 | ||
Body Orientation Right Angle | ||
Coding A | ||
- COO (Country of Origin):
- DE

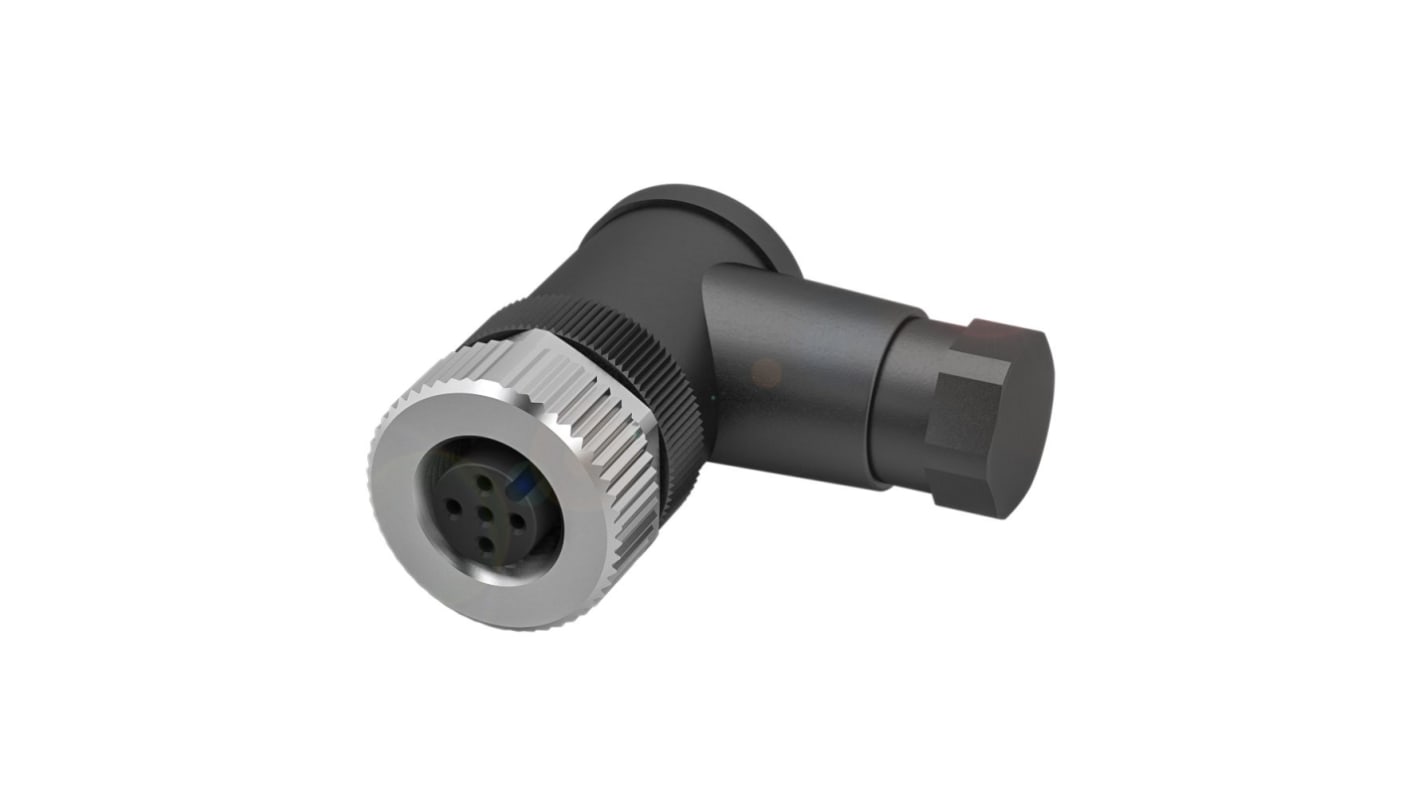

The Balluff field attachable connector is used for the secure transmission of signals, data and power. It has M12x1-female, angled, 5-pin, A-coded connection with 5 connectable contacts and 4.0 A rated current (at 40 °C).
Screw terminals wire mounting
0.14 to 0.75 mm² Connection cross-section
4 to 6 mm Cable diameter D
125 VDC / 125 VAC Operating voltage Ub
IP67 protection rating
-40 °C to 85 °C ambient temperature
CE, cURus, EAC, WEEE Approval/Conformity
0.14 to 0.75 mm² Connection cross-section
4 to 6 mm Cable diameter D
125 VDC / 125 VAC Operating voltage Ub
IP67 protection rating
-40 °C to 85 °C ambient temperature
CE, cURus, EAC, WEEE Approval/Conformity
