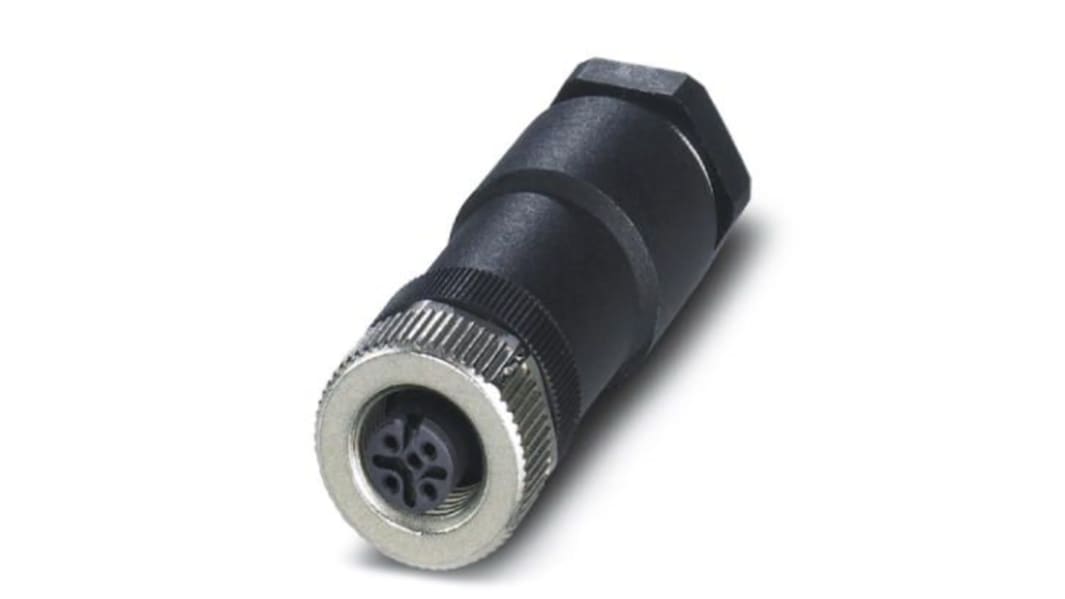

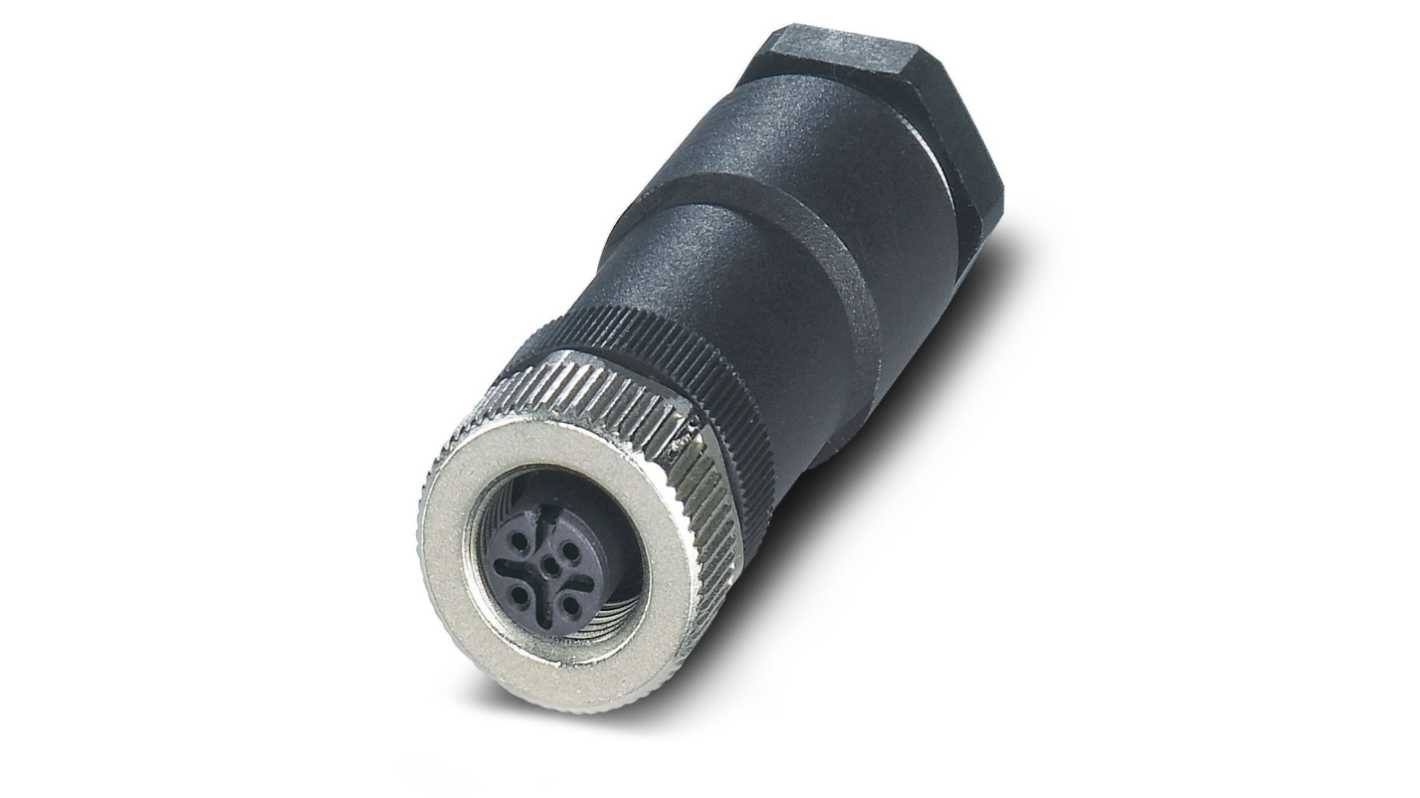

Phoenix Contact Circular Connector, 5 Contacts, Screw, M12 Connector, Socket, IP67, SACC Series
- RS Stock No.:
- 240-7287
- Mfr. Part No.:
- 1404418
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£28.06
(exc. VAT)
£33.67
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 18 unit(s) ready to ship
- Plus 10 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £28.06 |
*price indicative
- RS Stock No.:
- 240-7287
- Mfr. Part No.:
- 1404418
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 5 | |
| Product Type | Circular Connector | |
| Mount Type | Screw | |
| Current | 8A | |
| Connector Size | M12 | |
| Plug/Socket | Socket | |
| IP Rating | IP67 | |
| Series | SACC | |
| Orientation | Straight | |
| Voltage | 48, 60V ac | |
| Coding | A | |
| Termination Type | Screw | |
| Minimum Operating Temperature | -40°C | |
| Mating Type | Screw | |
| Maximum Operating Temperature | 85°C | |
| Housing Material | Die Cast Zinc | |
| Standards/Approvals | M12 connector IEC 61076-2-101 | |
| Contact Plating | Nickel Gold Alloy | |
| Contact Material | Copper Zinc Alloy | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 5 | ||
Product Type Circular Connector | ||
Mount Type Screw | ||
Current 8A | ||
Connector Size M12 | ||
Plug/Socket Socket | ||
IP Rating IP67 | ||
Series SACC | ||
Orientation Straight | ||
Voltage 48, 60V ac | ||
Coding A | ||
Termination Type Screw | ||
Minimum Operating Temperature -40°C | ||
Mating Type Screw | ||
Maximum Operating Temperature 85°C | ||
Housing Material Die Cast Zinc | ||
Standards/Approvals M12 connector IEC 61076-2-101 | ||
Contact Plating Nickel Gold Alloy | ||
Contact Material Copper Zinc Alloy | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
The Phoenix contact SACC-M12FS series of Power Connector offer 5-positions. It is a M12 straight socket. The connection method is screw connection. The knurl material is Zinc die-cast and it is nickel-plated. The cable gland is pg11 and the external cable diameter can range from 8 mm to 10 mm.
Safe use in the field, thanks to a high degree of protection
Screw connection is proven connection technology for a large selection of different conductors
