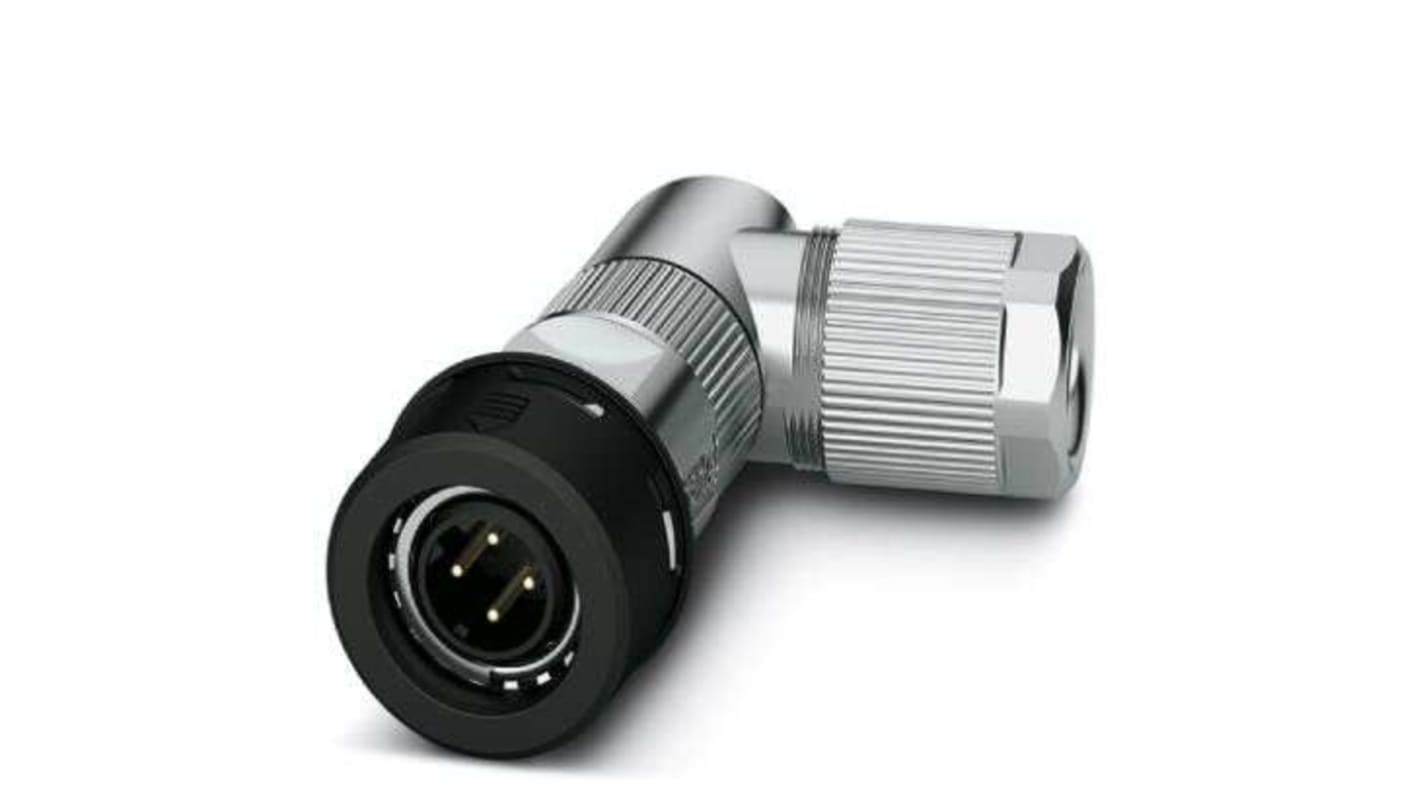

Phoenix Contact Circular Connector, 4 Contacts, Cable, M12 Connector, Plug, IP65, IP67, SACC Series
- RS Stock No.:
- 239-5017
- Mfr. Part No.:
- 1021831
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£29.72
(exc. VAT)
£35.66
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 30 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £29.72 |
*price indicative
- RS Stock No.:
- 239-5017
- Mfr. Part No.:
- 1021831
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 4 | |
| Product Type | Circular Connector | |
| Mount Type | Cable | |
| Current | 4A | |
| Connector Size | M12 | |
| Plug/Socket | Plug | |
| IP Rating | IP65, IP67 | |
| Series | SACC | |
| Orientation | Right Angle | |
| Coding | D | |
| Voltage | 60V | |
| Termination Type | Crimp | |
| Minimum Operating Temperature | -40°C | |
| Mating Type | Push Pull | |
| Maximum Operating Temperature | 85°C | |
| Housing Material | Die Cast Zinc | |
| Standards/Approvals | EAC, EN, IEC, RoHS | |
| Contact Material | Copper Zinc Alloy | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 4 | ||
Product Type Circular Connector | ||
Mount Type Cable | ||
Current 4A | ||
Connector Size M12 | ||
Plug/Socket Plug | ||
IP Rating IP65, IP67 | ||
Series SACC | ||
Orientation Right Angle | ||
Coding D | ||
Voltage 60V | ||
Termination Type Crimp | ||
Minimum Operating Temperature -40°C | ||
Mating Type Push Pull | ||
Maximum Operating Temperature 85°C | ||
Housing Material Die Cast Zinc | ||
Standards/Approvals EAC, EN, IEC, RoHS | ||
Contact Material Copper Zinc Alloy | ||
- COO (Country of Origin):
- DE
The Phoenix Contact Connector has plug and produce convenient and secure connection, independent locking system. It has 4-position extremely compact, small wiring space and high contact density. The connector springs back when not snapped into place correctly. Suitable for railway applications with high shock and vibration loads.
Rated current at 40°C 4 A
Rated voltage 48 V AC/60 V DC
Number of positions 4
Insulation resistance ≥ 100 Mohm
Coding D - data
