LEMO Circular Connector, 5 Contacts, Cable Mount, Plug, Male, IP50, Redel P Series
- RS Stock No.:
- 237-3704
- Mfr. Part No.:
- PAG.M0.5GL.AC52A
- Brand:
- LEMO
Bulk discount available
Subtotal (1 unit)*
£15.50
(exc. VAT)
£18.60
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 17 unit(s) ready to ship
- Plus 75 unit(s) shipping from 29 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £15.50 |
| 5 - 9 | £15.04 |
| 10 - 19 | £14.57 |
| 20 - 49 | £14.09 |
| 50 + | £13.33 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£15.50
(exc. VAT)
£18.60
(inc. VAT)
- RS Stock No.:
- 237-3704
- Mfr. Part No.:
- PAG.M0.5GL.AC52A
- Brand:
- LEMO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | LEMO | |
| Number of Contacts | 5 | |
| Mounting Type | Cable Mount | |
| Plug/Socket | Plug | |
| Contact Gender | Male | |
| Termination Method | Solder | |
| IP Rating | IP50 | |
| Current Rating | 7.0A | |
| Body Orientation | Straight | |
| Series | Redel P | |
| Voltage Rating | 500.0 V | |
| Shell Size | 1 | |
| Housing Material | Polymer | |
| Contact Plating | Gold over Nickel | |
| Contact Material | Copper | |
| Minimum Operating Temperature | -50°C | |
| Maximum Operating Temperature | +150°C | |
Select all | ||
|---|---|---|
Brand LEMO | ||
Number of Contacts 5 | ||
Mounting Type Cable Mount | ||
Plug/Socket Plug | ||
Contact Gender Male | ||
Termination Method Solder | ||
IP Rating IP50 | ||
Current Rating 7.0A | ||
Body Orientation Straight | ||
Series Redel P | ||
Voltage Rating 500.0 V | ||
Shell Size 1 | ||
Housing Material Polymer | ||
Contact Plating Gold over Nickel | ||
Contact Material Copper | ||
Minimum Operating Temperature -50°C | ||
Maximum Operating Temperature +150°C | ||
- COO (Country of Origin):
- CH
Lemo Circular Connector

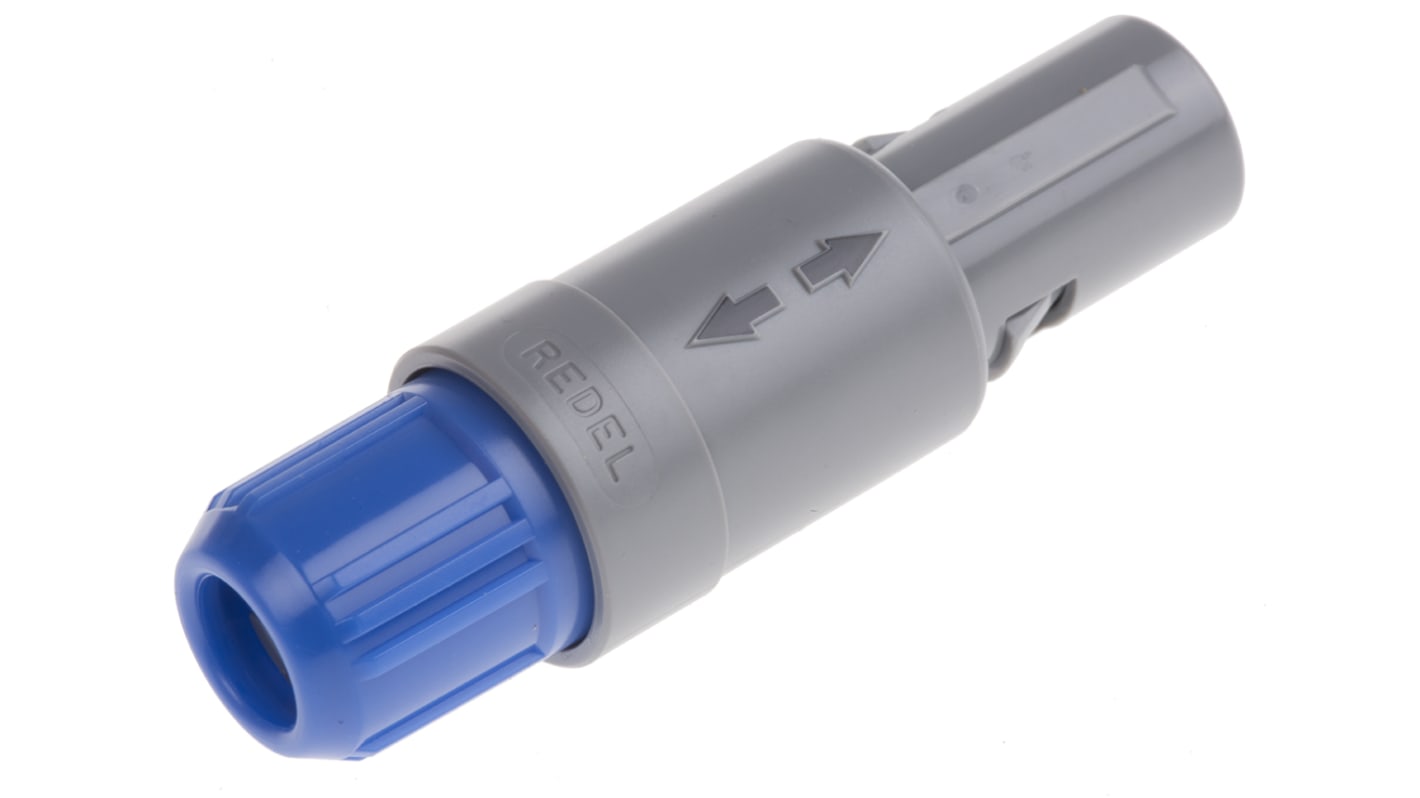

The Lemo Redel P series 5-contacts male circular connector has a plug in-line connection. This cable mount connector has a current rating of up to 8A per contact. This connector features a highly precise push-pull self-latching system equipped with blue cable collet nut for an easy and secure connection. This connector is made from grey-coloured polysulphone (PSU) with gold-plated copper contacts. It offers a lightweight connection with high pin-count density and LEMO durability.
Features and Benefits
Straight body orientation
Solder termination
Cable acceptance ranges between 4mm and 5.20mm
Endurance is greater than 2000 mating cycles
G keyed
High vibration and shock resistance
Operating temperature ranges between -55°C and 150°C
PEEK insulating material
Unshielded
Solder termination
Cable acceptance ranges between 4mm and 5.20mm
Endurance is greater than 2000 mating cycles
G keyed
High vibration and shock resistance
Operating temperature ranges between -55°C and 150°C
PEEK insulating material
Unshielded
Applications
Medical devices
Research
Test and measurement instrumentation
Research
Test and measurement instrumentation
Certifications
IP50 rated
UL approved
UL approved
