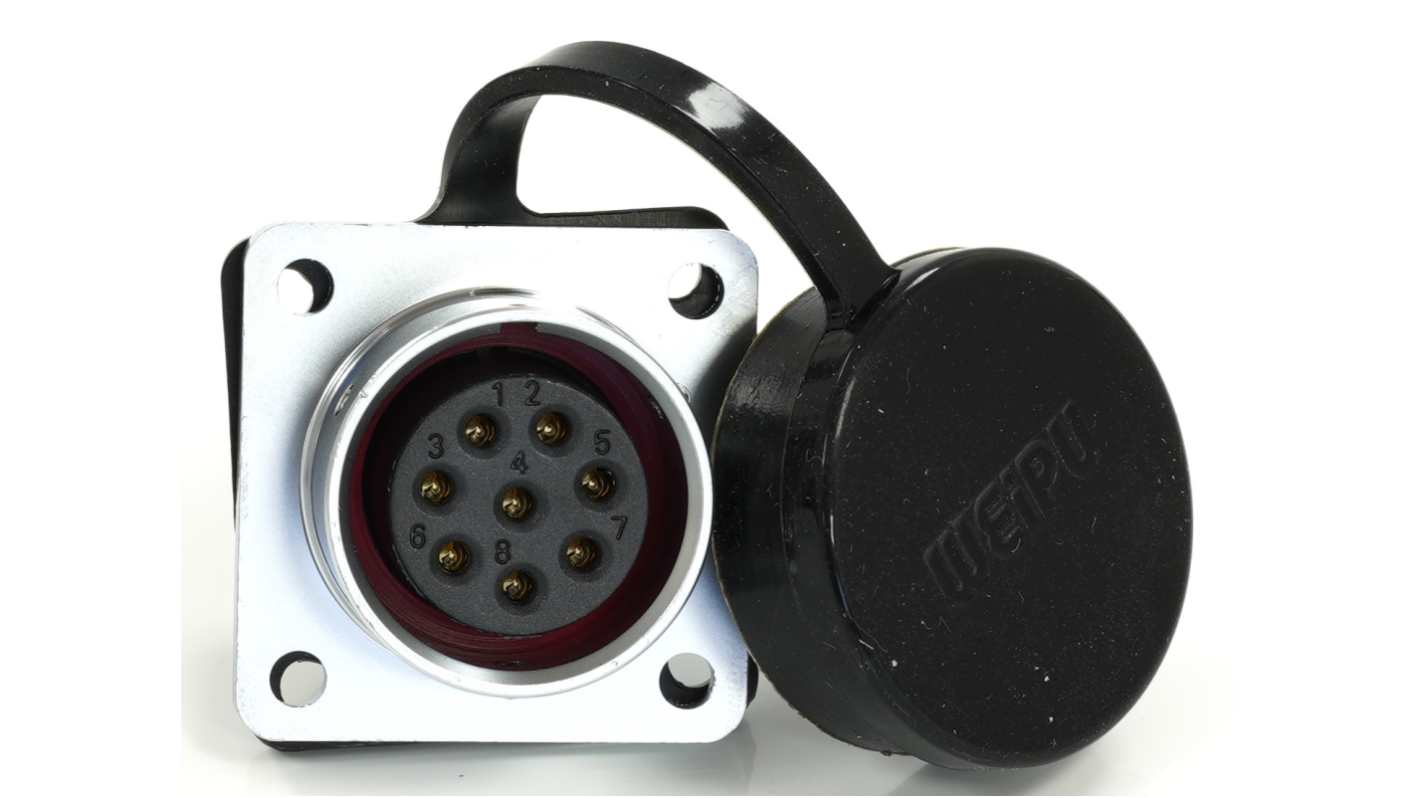

RS PRO Circular Connector, 8 Contacts, Panel Mount, M20 Connector, Socket, Female, IP67

RS Stock No.:: 233-8220
Brand:: RS PRO

RS PRO Circular Connector, 8 Contacts, Panel Mount, M20 Connector, Socket, Female, IP67

Bulk discount available

Price Each**

£17.63

(exc. VAT)

£21.16

(inc. VAT)

Sorry, we couldn't check our stock levels right now. Please try refreshing the page.

FREE delivery for orders over £50.00

Not available for guaranteed pre 9am/10am delivery

Units	Per unit
1 - 9	£17.63
10 - 24	£16.92
25 +	£15.57

**price indicative

RS Stock No.:: 233-8220
Brand:: RS PRO

RS PRO Datasheet

RS PRO Circular Panel Mount Connector, Square Flanged

Introducing the range of RS PRO Circular Connectors, ideal for mounting in production and manufacturing environments. This connector has been designed with a push-pull locking interface and an industry-standard compatibility. This means it can easily mate with cable mount plugs, allowing complete flexibility for connection and easy to incorporation into any sensory or automation applications. The waterproof circular connector is IP67 rated and made with a chrome plated brass material for optimum durability and performance, making it an ideal solution for use in machinery, testing and other equipment where a secure and reliable connection is required in harsh environments.

Features and Benefits:

This high-performance RS PRO circular connector comes with a push-pull latching interface and industry-standard compatibility which prevents miss-mating

The ultra-durable connector is IP67 rated and made from chrome plated brass, making it corrosion and impact resistant, ideal for use in medium duty environments

It is quick and easy to install thanks to the push-pull coupling, making it user-friendly and saving on valuable installation time

This type of circular connector is most suited to use in automation and robotics, testing and audio applications, as well as other high-end indoor environments where a secure and high performing connection is required

Applications:

Industrial circular connectors are heavy-duty and versatile products that transmit data, electrical signals, or power to machinery or peripheral components, like sensors and actuators. They are generally designed to withstand extreme temperature changes and moisture, exposure to chemicals, oils and UV, as well as any abrasions or wear that can be caused by machinery vibration to ensure the protection of the internal wires. These types of industrial connectors are most commonly found in:

Instrumentation

Process control

Robotics

Assembly lines and manufacturing

Industrial automation and control

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards

they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

2 Pin, 25A, 500 V

RS stock no 206-5184
3 Pin, 25A, 500 V

RS stock no 206-5186
4 Pin, 25A, 500 V

RS stock no 206-5189

RS PRO Female Socket Square Flange Panel Mount Cable Connector Options - Screw Termination

2 Socket, 25A, 500 V

RS stock no 206-5196
3 Socket, 25A, 500 V

RS stock no 206-5198
4 Socket, 25A, 500 V

RS stock no 206-5200

RS PRO Male Plug Square Flange Panel Mount Cable Connector Options - Solder Termination

2 Pin, 25A, 500 V

RS stock no 206-5183
3 Pin, 25A, 500 V

RS stock no 206-5185
4 Pin, 25A, 500 V

RS stock no 206-5187
5 Pin, 10A, 500 V

RS stock no 206-5190
7 Pin, 10A, 500 V

RS stock no 206-5191
9 Pin, 5A, 400 V

RS stock no 206-5192
12 Pin, 5

RS PRO Female Socket Square Flange Panel Mount Cable Connector Options - Solder Termination

2 Socket, 25A, 500 V

RS stock no 206-5195
3 Socket, 25A, 500 V

RS stock no 206-5197
4 Socket, 25A, 500 V

RS stock no 206-5199
5 Socket, 10A, 500 V

RS stock no 206-5202
7 Socket, 10A, 500 V

RS stock no 206-5203
9 Socket, 5A, 400 V

RS stock no 2

2 Socket, 25A, 500 V; RS stock no 206-5195
3 Socket, 25A, 500 V; RS stock no 206-5197
4 Socket, 25A, 500 V; RS stock no 206-5199
5 Socket, 10A, 500 V; RS stock no 206-5202
7 Socket, 10A, 500 V; RS stock no 206-5203
9 Socket, 5A, 400 V; RS stock no 2

Interconnects with RS PRO SF2010 cable mount connectors

Applications

Suitable for use in Medical, Telecommunications, Test & Measurement, and Industrial applications.

Why would you choose RS PRO for Industrial Circular Connectors?

Approvals

CE, ROHS

Attribute	Value
Number of Contacts	8
Mounting Type	Panel Mount
Connector Size	M20
Plug/Socket	Socket
Contact Gender	Female
Termination Method	Solder
IP Rating	IP67
Current Rating	10.0A
Body Orientation	Straight
Voltage Rating	500.0 V
Housing Material	Chrome Plated Brass
Pole Format	8
Contact Plating	Gold
Maximum Operating Temperature	+85°C
Minimum Operating Temperature	-40°C
Contact Material	Brass
