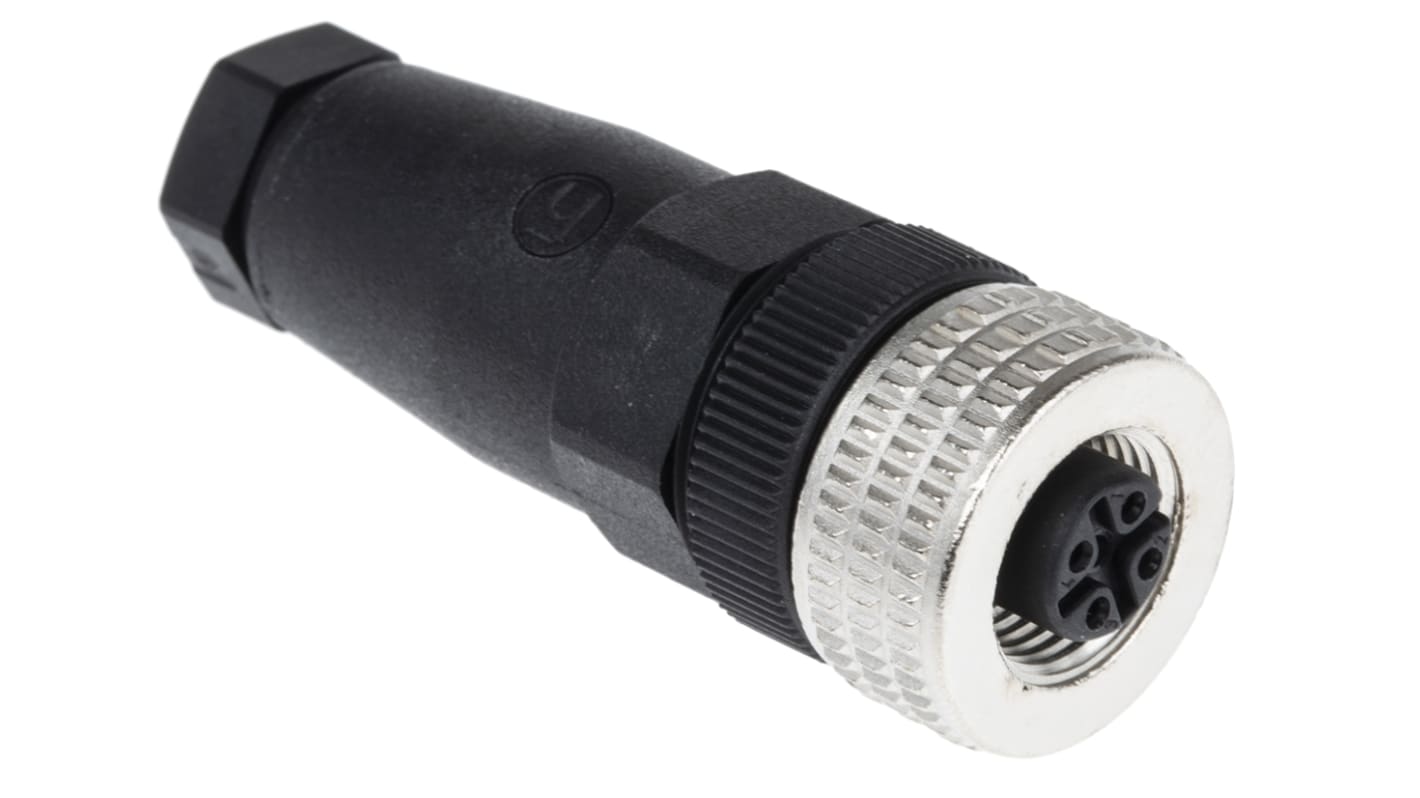

Hirschmann Circular Connector, 4 Contacts, Cable Mount, M12 Connector, Socket, Female, IP67, E Series
- RS Stock No.:
- 231-1245
- Distrelec Article No.:
- 304-09-342
- Mfr. Part No.:
- 933139100 ELKA 4012 PG7 black
- Brand:
- Hirschmann
Bulk discount available
Subtotal (1 unit)*
£11.54
(exc. VAT)
£13.85
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 156 left, ready to ship
- Plus 1,309 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £11.54 |
5 - 24 | £10.94 |
25 - 49 | £10.36 |
50 + | £9.82 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£22.86
(exc. VAT)
£27.43
(inc. VAT)
- RS Stock No.:
- 231-1245
- Distrelec Article No.:
- 304-09-342
- Mfr. Part No.:
- 933139100 ELKA 4012 PG7 black
- Brand:
- Hirschmann
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Hirschmann | |
Number of Contacts | 4 | |
Mounting Type | Cable Mount | |
Connector Size | M12 | |
Plug/Socket | Socket | |
Contact Gender | Female | |
Termination Method | Screw | |
IP Rating | IP67 | |
Current Rating | 4.0A | |
Series | E | |
Body Orientation | Straight | |
Voltage Rating | 250.0 V | |
Coding | A | |
Mating Type | A Coded | |
Shell Size | M12 | |
Housing Material | Polymer | |
Strain Relief | Yes | |
Contact Plating | Tin | |
Minimum Operating Temperature | -25°C | |
Contact Material | Brass | |
Maximum Operating Temperature | +90°C | |
Select all | ||
---|---|---|
Brand Hirschmann | ||
Number of Contacts 4 | ||
Mounting Type Cable Mount | ||
Connector Size M12 | ||
Plug/Socket Socket | ||
Contact Gender Female | ||
Termination Method Screw | ||
IP Rating IP67 | ||
Current Rating 4.0A | ||
Series E | ||
Body Orientation Straight | ||
Voltage Rating 250.0 V | ||
Coding A | ||
Mating Type A Coded | ||
Shell Size M12 | ||
Housing Material Polymer | ||
Strain Relief Yes | ||
Contact Plating Tin | ||
Minimum Operating Temperature -25°C | ||
Contact Material Brass | ||
Maximum Operating Temperature +90°C | ||
- COO (Country of Origin):
- CZ
Belden Hirschmann Cable Mount Socket, M12, Female - E Series - 933139100 ELKA 4012 PG7 black
To make reliable connections in your electrical system, choose this reliable M12 socket from Belden's Hirschmann range. It's a flexible and robust sensor and actuator connector and provides a long-lasting wiring solution. Standardised connection technology makes the unit quick to assemble for maximum productivity. Simply screw it on and off to enjoy time-saving installation and minimal maintenance. The connector is protected against dust and moisture as well as abrasive substances, such as chemicals and oils.
Features & Benefits
• Clamping cage stops the cable from straining and cracking when bent
• Polyamide housing withstands above-average wear and tear for an extended service life
• Tin-plated contacts for improved electrical conductivity and enhanced performance
• Wide operating temperature range of -25°C to +90°C, so suitable to use in extreme environments
• Polyamide housing withstands above-average wear and tear for an extended service life
• Tin-plated contacts for improved electrical conductivity and enhanced performance
• Wide operating temperature range of -25°C to +90°C, so suitable to use in extreme environments
Applications
• Food and beverage industry
• Transportation applications
• Material handling
• Industrial automation
• Transportation applications
• Material handling
• Industrial automation
Can this connector withstand hygienic cleaning in industrial factories?
Yes, this connector has an IP67 (ingress protection) rated housing that's dust-tight and protected against high-pressure water jets from any direction. It's also resistant to cleaning agents, so offers a durable and air-tight connection even in environments where strict cleaning protocols need to be adhered to.
