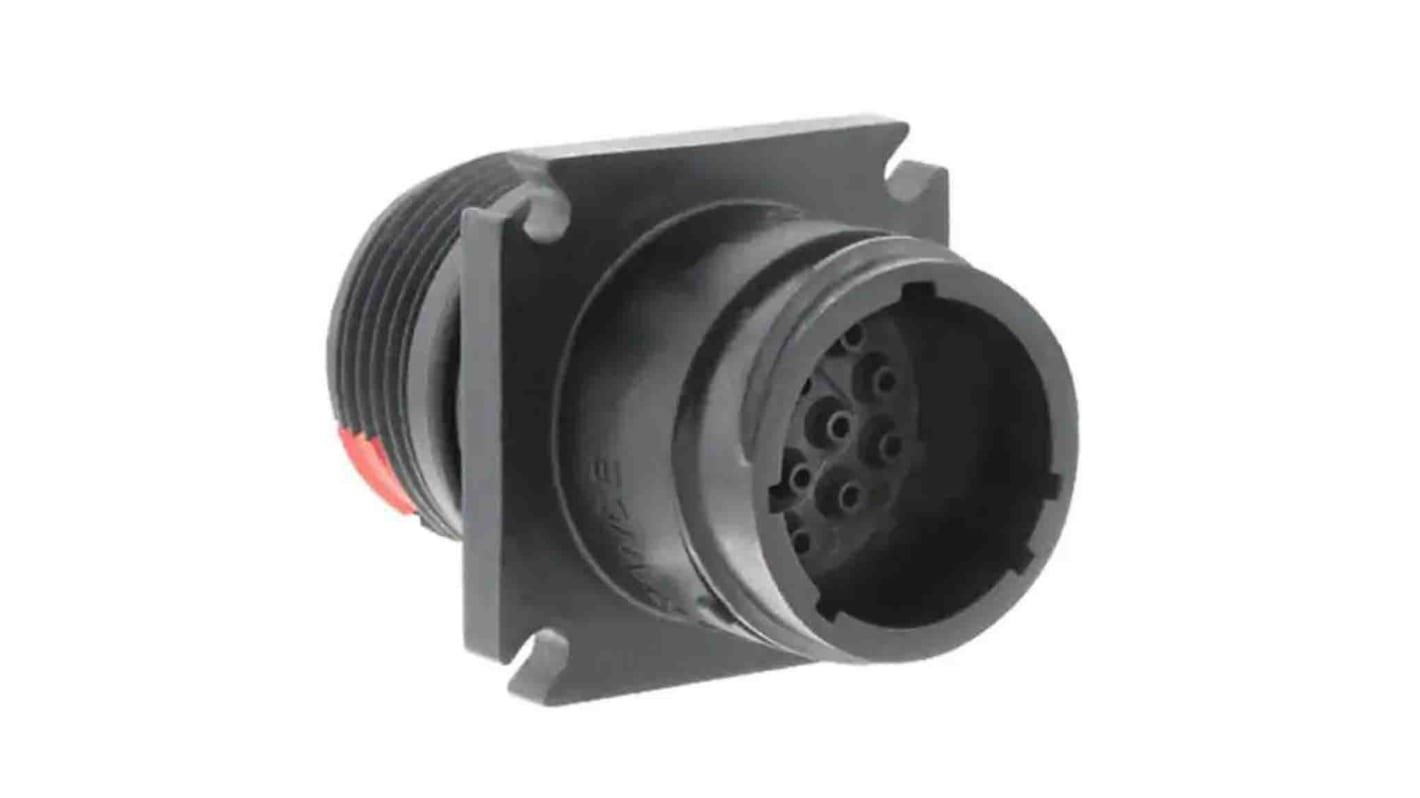

Souriau Sunbank by Eaton Circular Connector, 14 Contacts, Flange Mount, Plug, Male, IP68, Clipper Series
- RS Stock No.:
- 220-2753
- Mfr. Part No.:
- CL1M2201
- Brand:
- Souriau Sunbank by Eaton
Bulk discount available
Subtotal (1 unit)*
£8.31
(exc. VAT)
£9.97
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 100 unit(s) shipping from 18 November 2025
- Plus 50 unit(s) shipping from 02 December 2025
- Plus 300 unit(s) shipping from 20 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £8.31 |
5 - 9 | £7.04 |
10 - 24 | £6.65 |
25 - 49 | £6.43 |
50 + | £6.24 |
*price indicative
- RS Stock No.:
- 220-2753
- Mfr. Part No.:
- CL1M2201
- Brand:
- Souriau Sunbank by Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Souriau Sunbank by Eaton | |
Number of Contacts | 14 | |
Mounting Type | Flange Mount | |
Plug/Socket | Plug | |
Contact Gender | Male | |
Termination Method | Crimp | |
IP Rating | IP68 | |
Current Rating | 7.0A | |
Series | Clipper | |
Body Orientation | Straight | |
Mating Type | Threaded | |
Shell Size | 2 | |
Housing Material | Thermoplastic | |
Strain Relief | No | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +125°C | |
Select all | ||
---|---|---|
Brand Souriau Sunbank by Eaton | ||
Number of Contacts 14 | ||
Mounting Type Flange Mount | ||
Plug/Socket Plug | ||
Contact Gender Male | ||
Termination Method Crimp | ||
IP Rating IP68 | ||
Current Rating 7.0A | ||
Series Clipper | ||
Body Orientation Straight | ||
Mating Type Threaded | ||
Shell Size 2 | ||
Housing Material Thermoplastic | ||
Strain Relief No | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +125°C | ||
- COO (Country of Origin):
- FR


Souriau Industrial Plastic Connector
The Souriau clipper series 14-contacts male industrial plastic connector has a plug-type connection. This in-line connector has a 7A current rating per contact. It features a retention plate system allowing insertion/extraction of the contacts without the need for tooling. It has an adaptor with electrical PG thread for PG backshells with 1/2 turn bayonet coupling allowing a quick-connection to the system. This connector has thermoplastic housing with gold plated copper alloy contacts.
Clipper series
Plastic industrial connectors, which provide sealing to IP67. The system offers connector shells with a retention plate system, allowing easy insertion/extraction of the crimp contacts without tooling. Contacts to be purchased separately. The cable mount sockets can accept straight cable clamps, conduit adaptors or sealing glands giving great flexibility in usage. For added safety, the connectors are designed to be scoop proof: in that, they may be coupled and uncoupled without the risk of damaging contacts, even if blind mating is necessary. High-density formats are available using 1mm contacts.
Clipper series
Plastic industrial connectors, which provide sealing to IP67. The system offers connector shells with a retention plate system, allowing easy insertion/extraction of the crimp contacts without tooling. Contacts to be purchased separately. The cable mount sockets can accept straight cable clamps, conduit adaptors or sealing glands giving great flexibility in usage. For added safety, the connectors are designed to be scoop proof: in that, they may be coupled and uncoupled without the risk of damaging contacts, even if blind mating is necessary. High-density formats are available using 1mm contacts.
Features and Benefits
Crimp termination
Straight body orientation
180° screw coupling with positive audible safety latch
Contact resistance is less than 10Mohm
Durability of 250 mating cycles
High vibration resistance
Operation temperature ranges between -40°C and 125°C
Scoop proof contacts
Shell size is 2mm
Unshielded
Straight body orientation
180° screw coupling with positive audible safety latch
Contact resistance is less than 10Mohm
Durability of 250 mating cycles
High vibration resistance
Operation temperature ranges between -40°C and 125°C
Scoop proof contacts
Shell size is 2mm
Unshielded
Applications
Factory automation and machine tools
Test and measurement instrumentation
Test and measurement instrumentation
Certifications
IP68 rated
