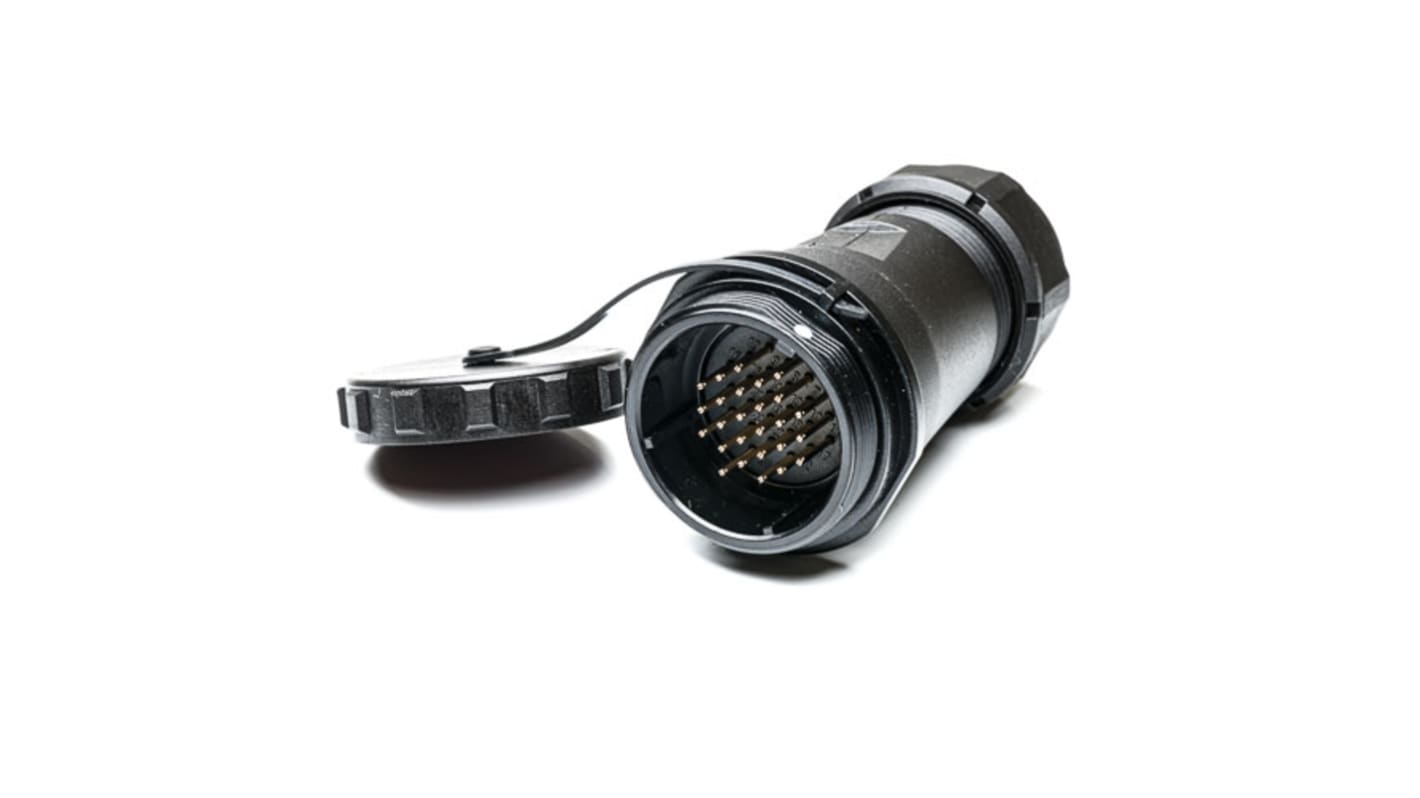

RS PRO Circular Connector, 26 Contacts, Cable Mount, Socket, Male, IP68

RS Stock No.:: 207-0722
Distrelec Article No.:: 304-04-457
Brand:: RS PRO

RS PRO Circular Connector, 26 Contacts, Cable Mount, Socket, Male, IP68

Bulk discount available

Subtotal (1 unit)*

£24.75

(exc. VAT)

£29.70

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

10 unit(s) ready to ship
Plus 10 unit(s) ready to ship from another location
Plus 10 unit(s) shipping from 08 October 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£24.75
5 - 9	£24.51
10 - 49	£24.02
50 - 99	£23.02
100 +	£21.29

*price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

RS PRO Industrial Circular Connectors, 26 Contacts, In-line, SP29 Connector, Socket, Male, IP68

RS Stock No.: 304-524

Each

£12.15

(exc. VAT)

£14.58

(inc. VAT)

RS Stock No.:: 207-0722
Distrelec Article No.:: 304-04-457
Brand:: RS PRO

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Number of Contacts	26
	Mounting Type	Cable Mount
	Plug/Socket	Socket
	Contact Gender	Male
	Termination Method	Solder
	IP Rating	IP68
	Current Rating	5A
	Series	SP29
	Body Orientation	Straight
	Voltage Rating	400V
	Mating Type	Threaded
	Housing Material	Nylon, PC
	Pole Format	26P
	Strain Relief	No
	Contact Plating	Gold
	Outer Diameter	13→16mm
	Maximum Operating Temperature	85°C
	Minimum Operating Temperature	-40°C
	Contact Material	Brass

	Select all
	Brand RS PRO
	Number of Contacts 26
	Mounting Type Cable Mount
	Plug/Socket Socket
	Contact Gender Male
	Termination Method Solder
	IP Rating IP68
	Current Rating 5A
	Series SP29
	Body Orientation Straight
	Voltage Rating 400V
	Mating Type Threaded
	Housing Material Nylon, PC
	Pole Format 26P
	Strain Relief No
	Contact Plating Gold
	Outer Diameter 13→16mm
	Maximum Operating Temperature 85°C
	Minimum Operating Temperature -40°C
	Contact Material Brass

RS PRO Solder Industrial Power Connector 26 Pin

RS Pro introduces a fantastic range of precision waterproof connector sets, which are sealed to IP68 standards. Threaded coupling ensures a secure connection, even in extremely harsh environments. Manufactured from polycarbonate (PC) plastic to provide robust resistance from heat, corrosion and abrasion. IP68 standard rating allows for a watertight seal whilst also shielding from any unwanted particle interference, for example from dust. Due to their durability, compactness and fantastic temperature operating range these industrial connectors can be used in harsh environments where space is a premium for power or data. These products can be used for either data or power, and are ideal for use in medical, communications and test & measurement applications.

Features and Benefits

Dust cap attached for easy protection

Solder termination for solid connection

Rubber seal inside the inner lid for extra protection making your industrial plug watertight

Made from Polycarbonate (PC) plastic

Male 26 pin circular cable mount connector has a socket type connection

This twenty six-pin male industrial power connector provides an easy assemble with outstanding cable protection

Integral compression nut to provide a reliable connection

Abrasion, heat and corrosion resistant

Temperature range of -40°C to +85 °C

It has a voltage rating of 500V and current rating is up to 5A per contact

Applications

Power connectors are a staple piece of hardware for anyone looking for a reliable and durable power connection. Due to their versatility they are found in a multitude of environments from domestic to industrial applications. These connectors come in either male or female versions and the push pull coupling allows for quick and easy installation making them a fantastic choice and commonly found in
Shipyards and Ports
Heavy Industry
Entertainment and sports
Construction sites
Food industry
Agriculture

What is the difference between Male and Female Connectors?

A Male Connector has solid pins (usually between 3-pin to 7-pins) whereas Female Connector has a central conductor with a-holes.

Why RS PRO?

For a suitable alternative please see RS PRO 304-524
