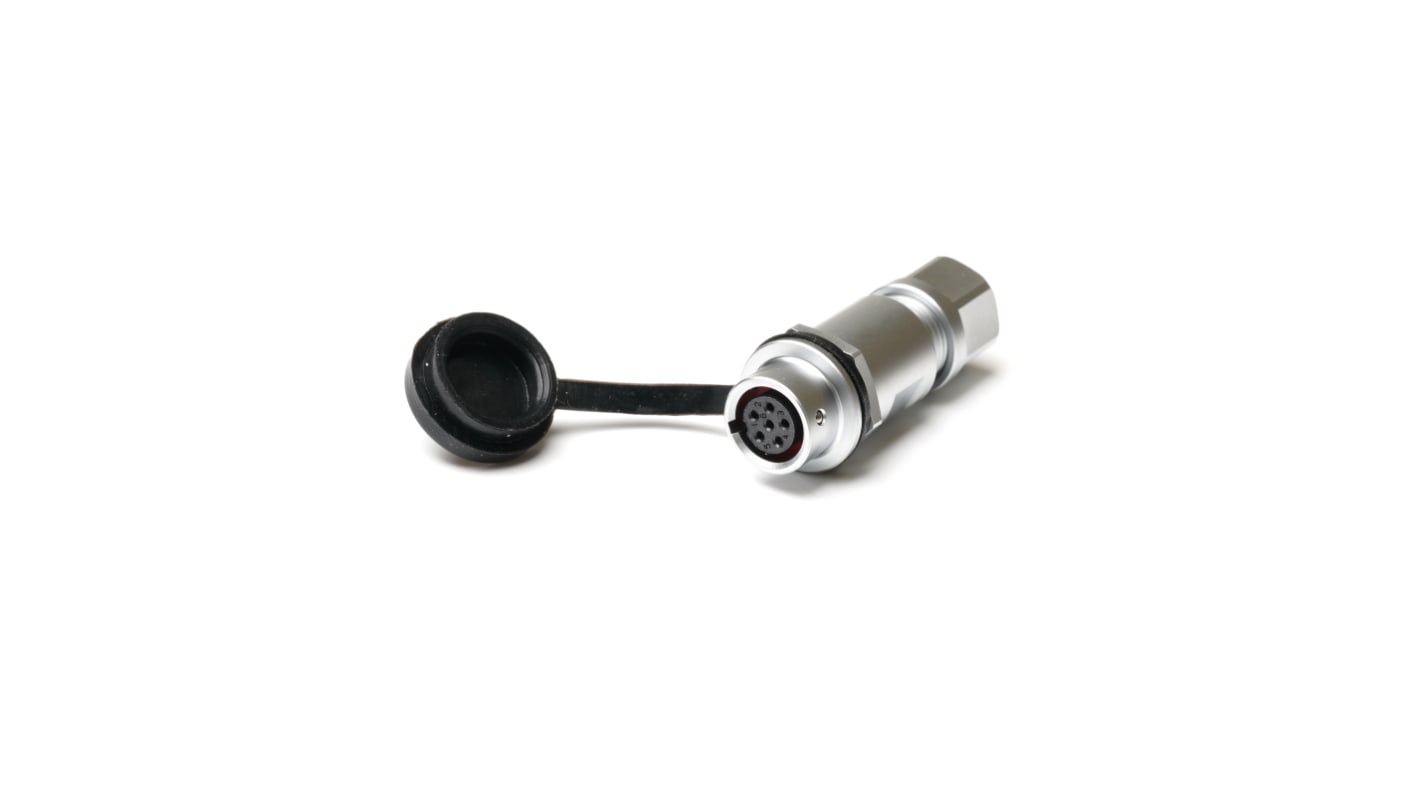

RS PRO Circular Connector, 6 Contacts, Cable Mount, Socket, Female, IP67

View this category
Bulk discount available

Subtotal (1 unit)*

£14.62

(exc. VAT)

£17.54

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3 unit(s) ready to ship
  • Plus 10 unit(s) shipping from 04 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£14.62
5 - 9£14.44
10 - 49£14.17
50 - 99£13.59
100 +£12.57

*price indicative

RS Stock No.:
207-0585
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Number of Contacts

6

Mounting Type

Cable Mount

Plug/Socket

Socket

Contact Gender

Female

Termination Method

Solder

IP Rating

IP67

Current Rating

3A

Body Orientation

Straight

Series

SF8B

Voltage Rating

30V

Mating Type

Push-Pull

Housing Material

Chrome Plated Brass

Pole Format

6P

Contact Plating

Gold

Strain Relief

No

Outer Diameter

4→5mm

Contact Material

Brass

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

COO (Country of Origin):
CN

RS PRO Solder Industrial Power Connector 6 Pin


RS Pro introduces a fantastic range of precision waterproof connectors, which are sealed to IP67 standards. Push-pull coupling enables speedy and reliable mating. Designed with chrome-plated brass bodies to provide robust resistance from heat, corrosion and abrasion with an attractive finish. IP67 standard rating allows for a watertight seal whilst also shielding from any unwanted particle interference, for example from dust. Due to their versatility and fantastic temperature operating range these industrial connectors can be used even in environments that have extreme requirements for power or data.

Versions are available for in-line cable to cable and for cable to panel connections. Plugs and receptacles are available with either male pins or female sockets. These products can be used for either data or power, and are ideal for use in medical, communications and test & measurement applications.

Features and Benefits


  • Dust cap attached for easy protection

  • Solder termination for solid connection

  • Rubber seal inside the inner lid for extra protection making your industrial plug watertight

  • Chrome plated brass finish

  • In-line cable mount connector

  • This six-pin female industrial power connector provides an easy assemble with outstanding cable protection

  • Cable gland and sealing for extra protection

  • Integral cable clamp to provide a reliable connection

  • Abrasion, heat and corrosion resistant

  • Temperature range of -40°C to +85 °C

  • It has a voltage rating of 125V and current rating is up to 5A per contact

Applications


Power connectors are a staple piece of hardware for anyone looking for a reliable and durable power connection. Due to their versatility they are found in a multitude of environments from domestic to industrial applications. These connectors come in either male or female versions and the push pull coupling allows for quick and easy installation making them a fantastic choice and commonly found in
Shipyards and Ports
Heavy Industry
Entertainment and sports
Construction sites
Food industry
Agriculture

What is the difference between Male and Female Connectors?


A Male Connector has solid pins (usually between 3-pin to 7-pins) whereas Female Connector has a central conductor with a-holes.
