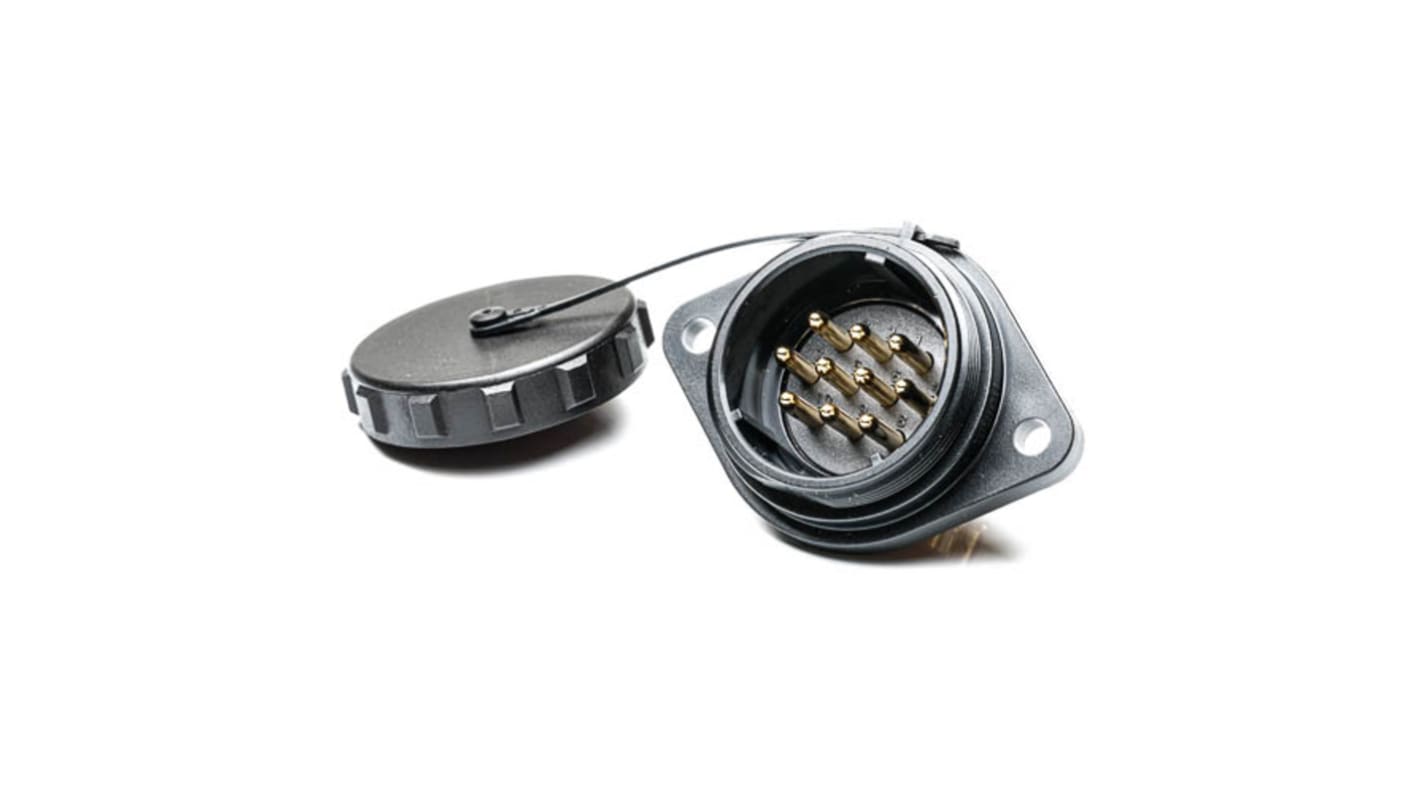

RS PRO Circular Connector, 10 Contacts, Flange Mount, Socket, Male, IP68

From RS PRO a fantastic series of panel mount connectors made from quality materials and designed for use in harsh environments. These panel mount connectors are available as male pins or female receptacles rated from 400 V to 500 V, and 5 A to 50 A current rating. These products are ideal for making your own customised connection for indoor/outdoor applications where a secure waterproof connection is required.

During assembly, these panel mount connectors are easy to install, and the job can be carried out by both engineers or DIY enthusiasts. Prior to installing the panel cut-out must match the connector dimensions, the correct wire AWG should be soldered or screwed to the contacts then panel mounted and secured with the retaining nut.

RS PRO SP29 series has been expertly constructed to ensure high-performance with a watertight connection seal. The SP29 series is a high-voltage power connector, designed with a PC/Nylon 66 panel connector shell, brass contacts, an O ring, and a retaining nut.

• Flanged panel mount connection
• Male plug power connectors
• Threaded coupling
• Solder or screw terminations
• Interconnect with female SP2910 series
• 2, 3 ,4, 7, 8, 10, 12, 16, 17, 20, 24 & 26 pole versions
• Cable outer diameter: 13 -16 mm
• Supplied with sealing cap
• Suitable for extremely harsh environments
• For use in indoor or outdoor applications

• Housing material: Nylon, PC
• Contact Material: Brass nickel plated
• Insulation resistance: 2000 MΩ
• Temperature range: -40∼+85 °C
• Voltage Power Rating: 400 V or 500 V
• Current rating: 5 A to 50 A
• IP68

• 2 Pin, 50A, 500 V; RS stock no: 206-5228
• 3 Pin, 50A, 500 V; RS stock no: 206-5232
• 4 Pin, 25A, 500 V; RS stock no: 206-5234
• 7 Pin, 25A, 500 V; RS stock no: 206-5236
• 8 Pin, 25A, 500 V; RS stock no: 206-5238
• 10 Pin, 25A, 500 V; RS stock no: 206-5221

• 2 Pin, 50A, 500 V; RS stock no: 206-5227
• 3 Pin, 50A, 500 V; RS stock no: 206-5231
• 4 Pin, 25A, 500 V; RS stock no: 206-5233
• 7 Pin, 25A, 500 V; RS stock no: 206-5235
• 8 Pin, 25A, 500 V; RS stock no: 206-5237
• 12 Pin, 10A, 500 V; RS stock no: 206-5222
• 16 Pin, 10A, 500 V; RS stock no: 206-5224
• 17 Pin, 10A, 500 V; RS stock no: 206-5225
• 20 Pin, 5A, 400 V; RS stock no: 206-5226
• 24 Pin, 5A, 400 V; RS stock no: 206-5229
• 26 Pin, 5A, 400 V; RS stock no: 206-5230

RS PRO male panel mount connectors should be used with the equivalent SP2910 series female socket cable mount connectors. Browse our extensive range to find your ideal solution.

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

CE, ROHS
