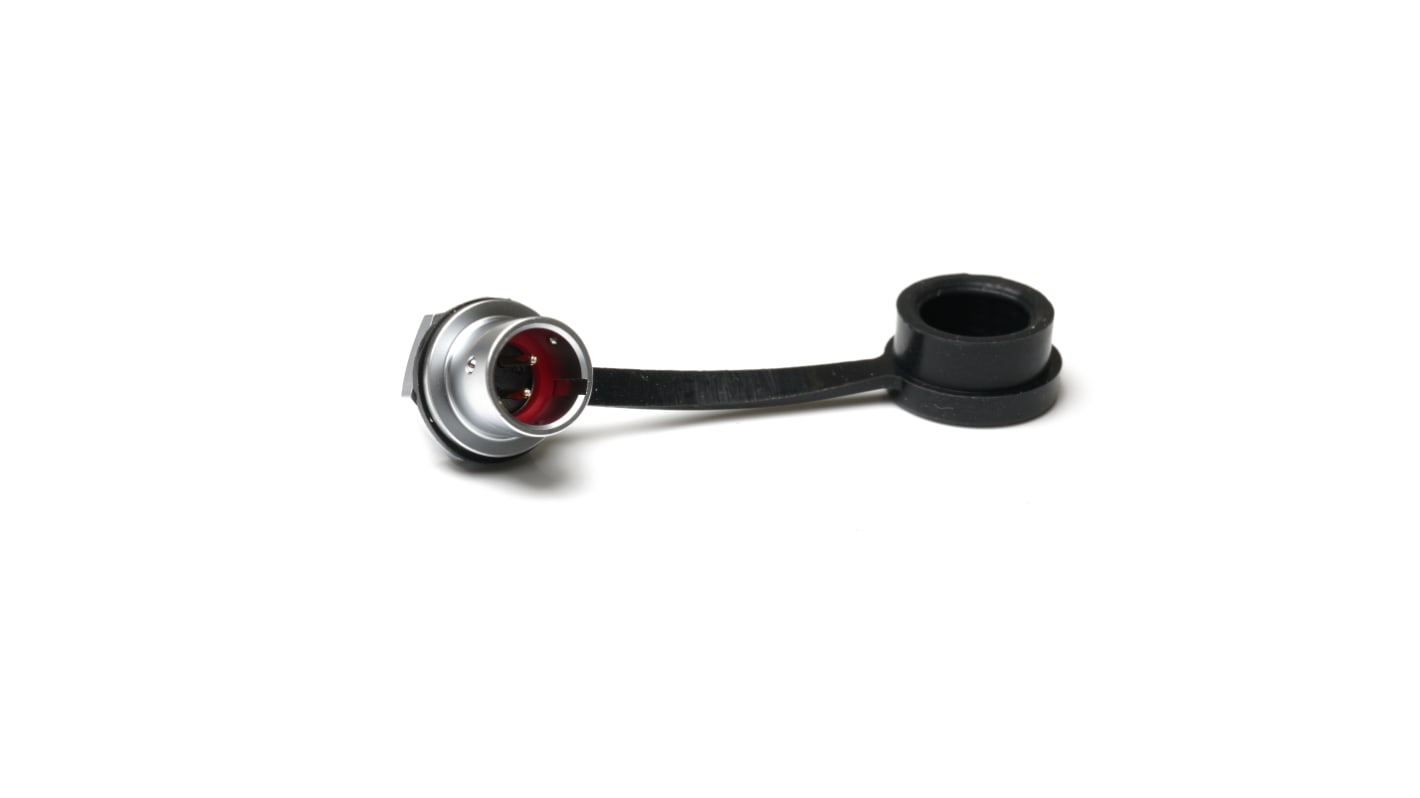

RS PRO Circular Connector, 2 Contacts, Front Mount, Socket, Male, IP67

From RS PRO a fantastic series of panel mount connectors made from quality materials, designed for use with medical devices and test & measuring equipment. These panel mount connectors are available as male pins or female sockets, rated from 125V to 180V, and 3A to 5A current rating. These products are ideal for making your own customised connector system where a secure waterproof connection is required.

Circular connectors are coupling devices that are quick and easy to install, and the job can be carried out by both engineers or DIY enthusiasts. Each element should be assembled in a specific order to retain the integrity of the IP67 rating and a professional install. Wire cable and diameter are vital components so prior to soldering ensure the correct wire gauge (AWG) is being used in accordance with the application standard.

The RS PRO SF1012 series are push-pull panel mount connectors available with plug or socket type connections, constructed to ensure high-performance with a watertight connection. They are popular with high-end equipment for their quality and performance. During application, the connectors can be used for either data or power, and are ideal for use in medical, communications, and test & measurement applications.

• SF1012 panel mount connectors
• Push-Pull coupling system
• Plugs and receptacles are available with either male pins or female sockets
• 2, 3,4, and 5 pole versions
• Solder terminations
• Waterproof
• Interconnect with cable mount connectors
• Panel-hole cut-out size: 10 mm
• Cable outer diameter: 4-6.5 mm
• Wire size: 0.75/18

• Housing material: Chrome Plated Brass
• Contact Material: Brass with gold plating
• Insulation resistance: 2000 MΩ
• 500 mating cycles
• Temperature range: -40∼+85 °C
• Voltage Power Rating: 125 V or 180 V
• Current rating: 3A to 5A
• IP67

• 2 Pin, 5A, 180 V; RS stock no: 206-5019
• 3 Pin, 5A, 180 V; RS stock no 206-5020
• 4 Pin, 3A, 125 V; RS stock no 206-5022
• 5 Pin, 3A, 125 V; RS stock no 206-5023

• 2 Pin, 5A, 180 V; RS stock no: 206-5024
• 3 Pin, 5A, 180 V; RS stock no 206-5025
• 4 Pin, 3A, 125 V; RS stock no 206-5026
• 5 Pin, 3A, 125 V; RS stock no 206-5027

Interconnect with RS PRO SF1010 series cable mount connectors

Suitable for use in Medical, Telecommunications, Test & Measurement, and Industrial applications.

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

CE, ROHS
