- RS Stock No.:
- 204-8846
- Mfr. Part No.:
- EPL.0S.302.HLN
- Brand:
- Lemo
6 In stock - FREE next working day delivery available
Added
Price Each
£23.16
(exc. VAT)
£27.79
(inc. VAT)
Units | Per unit |
1 - 4 | £23.16 |
5 - 9 | £22.47 |
10 - 19 | £21.77 |
20 - 49 | £21.08 |
50 + | £19.92 |
- RS Stock No.:
- 204-8846
- Mfr. Part No.:
- EPL.0S.302.HLN
- Brand:
- Lemo
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- CH
Product Details

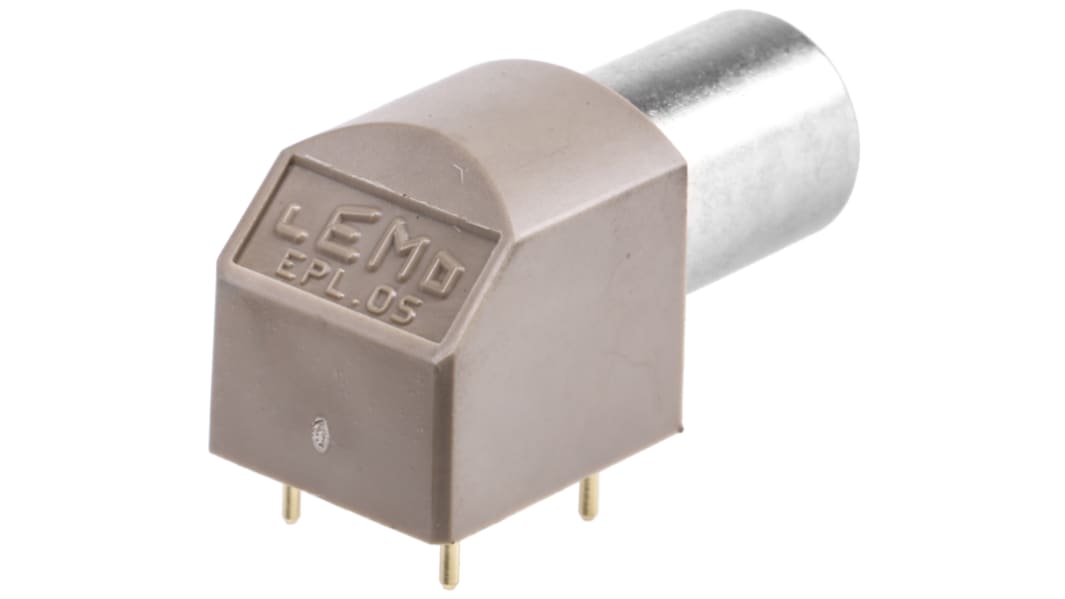

Elbow headers for S series PCBs
Elbow headers (90°) for fitting onto PCBs.
PCB installation and drilling plan supplied with every product.
PCB installation and drilling plan supplied with every product.
S series cylindrical connectors
Series of metal multi-pin connectors with very compact dimensions.
Fitted with a push-pull locking system, for great speed of use. Absolute protection against vibration, shocks and accidental pulling on the cable.
Available in 3 different sizes (0S, 1S and 2S), with different contact layouts.
The correct keyway is ensured by the insulating unit (both male and female).
Fitted with a push-pull locking system, for great speed of use. Absolute protection against vibration, shocks and accidental pulling on the cable.
Available in 3 different sizes (0S, 1S and 2S), with different contact layouts.
The correct keyway is ensured by the insulating unit (both male and female).
Specifications
Attribute | Value |
---|---|
Number of Contacts | 2 |
Mounting Type | Panel Mount |
Plug/Socket | Socket |
Contact Gender | Female |
Termination Method | Solder |
IP Rating | IP50 |
Current Rating | 10.0A |
Series | 0S |
Body Orientation | Right Angle |
Shell Size | 0 |
Contact Plating | Gold over Nickel |
Maximum Operating Temperature | +250°C |
Minimum Operating Temperature | -55°C |
Contact Material | Beryllium |
