RS PRO Circular Connector, 4 Contacts, Front Mount, Socket, Female, IP67
- RS Stock No.:
- 188-9558
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£11.67
(exc. VAT)
£14.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 30 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
- Plus 40 unit(s) shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £11.67 |
| 5 + | £11.23 |
*price indicative
- RS Stock No.:
- 188-9558
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Contacts | 4 | |
| Mounting Type | Front Mount | |
| Plug/Socket | Socket | |
| Contact Gender | Female | |
| Termination Method | Solder | |
| IP Rating | IP67 | |
| Current Rating | 3A | |
| Body Orientation | Straight | |
| Series | SF6B | |
| Voltage Rating | 30V | |
| Mating Type | Push-Pull | |
| Housing Material | Nylon 66, PC | |
| Pole Format | 4P | |
| Contact Plating | Gold | |
| Strain Relief | No | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Contacts 4 | ||
Mounting Type Front Mount | ||
Plug/Socket Socket | ||
Contact Gender Female | ||
Termination Method Solder | ||
IP Rating IP67 | ||
Current Rating 3A | ||
Body Orientation Straight | ||
Series SF6B | ||
Voltage Rating 30V | ||
Mating Type Push-Pull | ||
Housing Material Nylon 66, PC | ||
Pole Format 4P | ||
Contact Plating Gold | ||
Strain Relief No | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
- COO (Country of Origin):
- CN

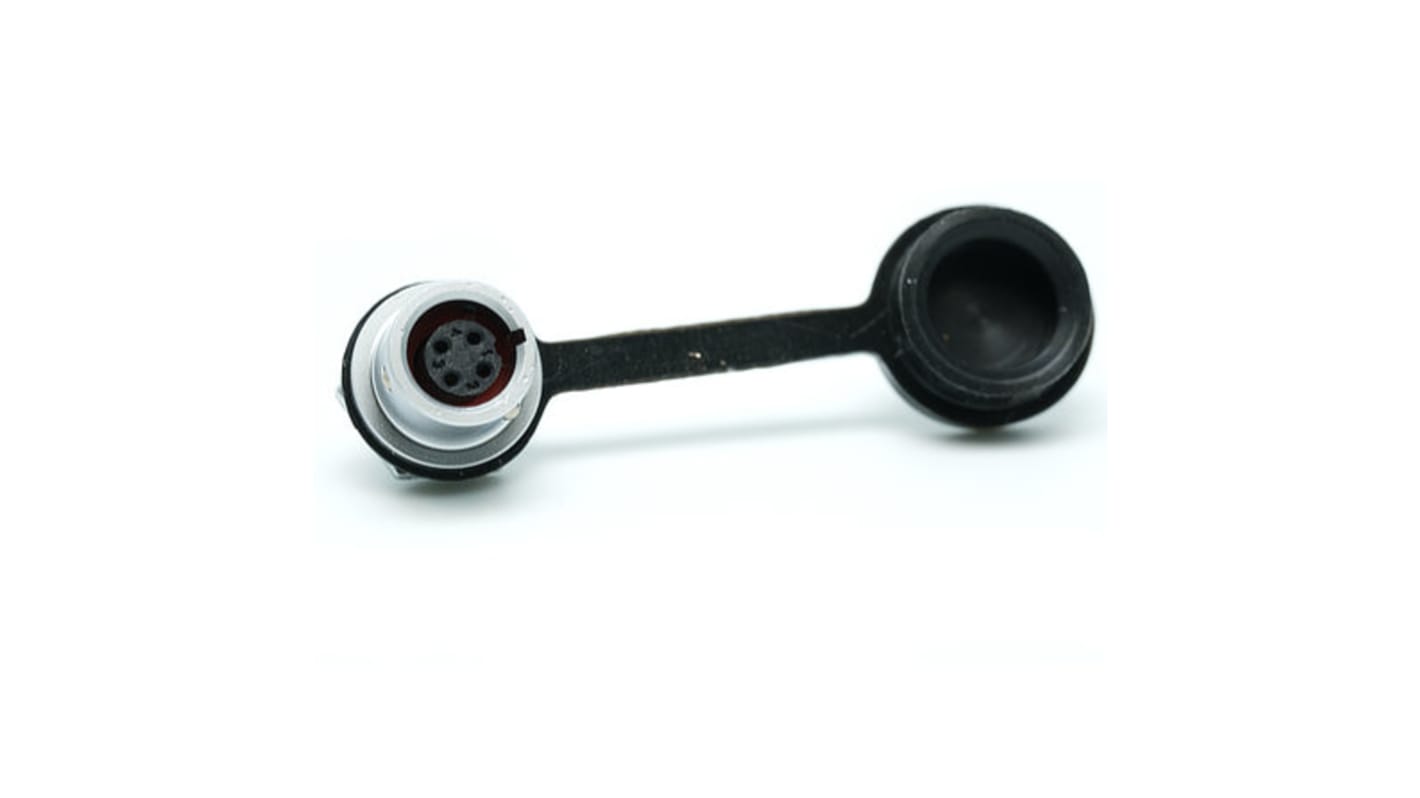

RS PRO IP67 6mm Panel Mount Connector with Dust Cap
Introducing panel mount push-pull coupler connectors from our trusted and reliable own brand RS PRO, a range of compact and robust connectors ideal for industrial panel mount applications. These high quality connectors feature a brass construction with chrome plating and meet IP67 standards, ensuring excellent strength and corrosion resistance. For enhanced protection the RS PRO panel mount coupler connectors include a durable dust cap, preventing dust and debris from entering the connector and causing potential damage. RS PRO panel mount connectors are available with a variety of pole configurations, providing flexibility in a wide range of applications.
Features and Benefits
- IP67 Rated ensuring protection against dust and moisture
- Chrome plated brass housing for enhanced corrosion resistance
- Push-pull coupling allowing connectors to be easily inserted and removed
- Gold plated contacts offering high performance and reliability
- Available in several pole configurations
Applications
Panel mount push-pull connectors are used in a wide range of industrial applications that require a high quality connector to power or operate various pieces of machinery or devices. Connectors with a push-pull orientation allow for quick and easy connection and disconnection or cables and connectors, whilst remaining reliable and high performing. Panel mount push-pull connectors are ideal for panel mounting and are commonly used in areas such as:
- Distribution
- Manufacturing
- Networking
- Automation
Certifications
IP67
Why RS PRO?
RS PRO is our own brand range and brings you a wide selection of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
