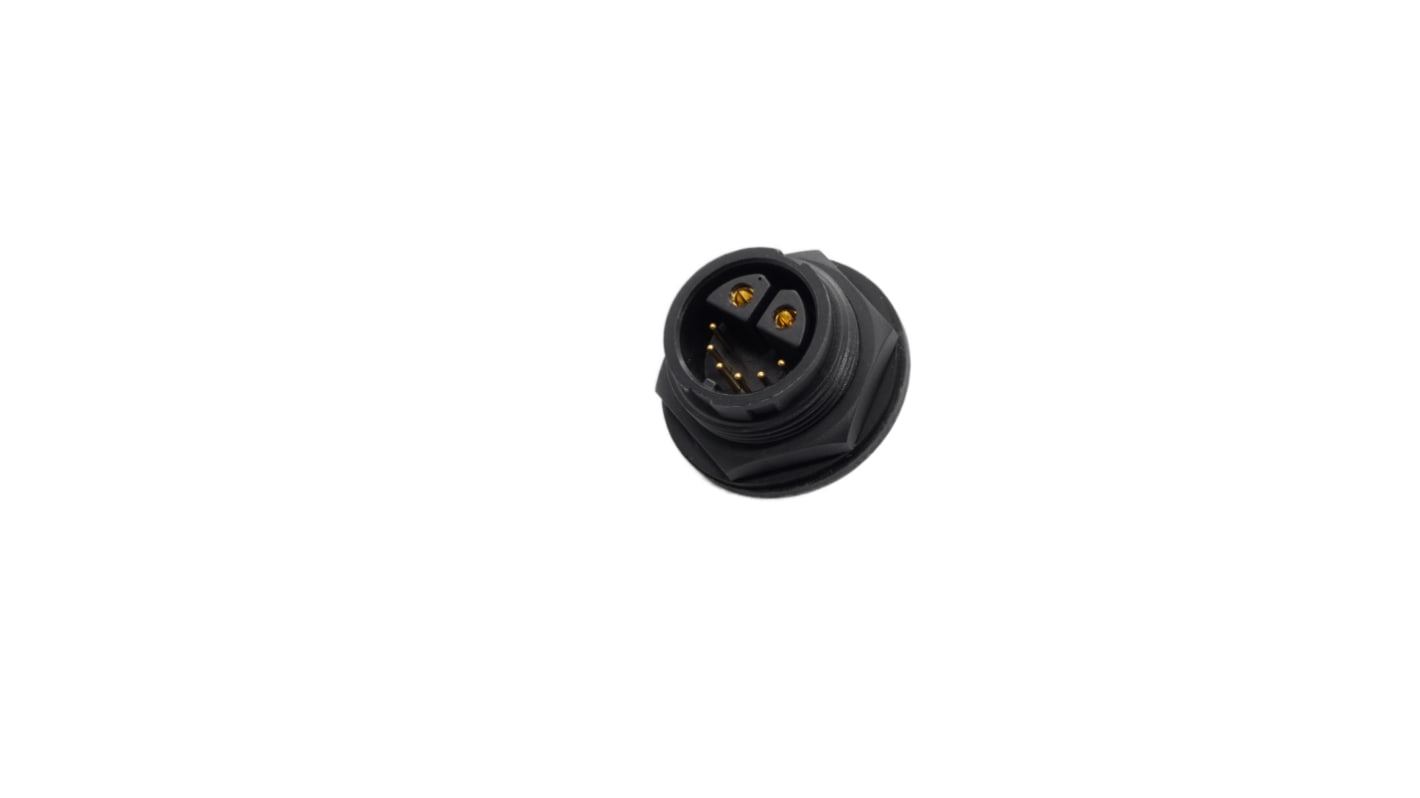

RS PRO Circular Connector, 2 + 6 Contacts, Panel Mount, C4 Connector, Socket, Female, IP67
- RS Stock No.:
- 179-7942
- Brand:
- RS PRO
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 179-7942
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Contacts | 2 + 6 | |
| Mounting Type | Panel Mount | |
| Connector Size | C4 | |
| Plug/Socket | Socket | |
| Contact Gender | Female | |
| Termination Method | Solder | |
| IP Rating | IP67 | |
| Current Rating | 20A + 3A | |
| Mating Type | Threaded | |
| Housing Material | Thermoplastic | |
| Pole Format | 2P + 6P | |
| Contact Plating | Gold | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -40°C | |
| Contact Material | Copper | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Contacts 2 + 6 | ||
Mounting Type Panel Mount | ||
Connector Size C4 | ||
Plug/Socket Socket | ||
Contact Gender Female | ||
Termination Method Solder | ||
IP Rating IP67 | ||
Current Rating 20A + 3A | ||
Mating Type Threaded | ||
Housing Material Thermoplastic | ||
Pole Format 2P + 6P | ||
Contact Plating Gold | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -40°C | ||
Contact Material Copper | ||
- COO (Country of Origin):
- TW
RS PRO Waterproof Hybrid Connector
Hybrid connectors from our trusted and reliable own brand RS PRO feature a bayonet style coupling that incorporates both a power and signal connection in one single housing, saving space and reducing installation times in a range of applications. These versatile connectors feature an IP67 rating that provides waterproof protection, making them ideal for use both indoors and outdoors. The RS PRO hybrid connector also has a cable to panel mount design and can be used in a wide range of electrical applications.
Features and Benefits
- Simple design that is quick and easy to install
- Offers power and signal connection in a single housing saving space and installation time
- Bayonet style coupling to connect and disconnect quickly and efficiently
- IP67 rating offering waterproof protection, making it perfect for use both indoor and outdoor
- Cable to panel mount design suitable for use in a range of applications
- Copper alloy contacts ensuring a reliable connection with excellent corrosion resistance
- Durable thermoplastic construction to protect against physical impact and damage
Applications
Hybrid connectors incorporate both a power and signal connection in a single housing connector, making them the perfect solution for applications that require multiple connections to be installed. Hybrid connectors not only save space and reduce installation times, but also greatly reduce the risk of incorrect wiring. These connectors are perfect for use in applications such as:
- Medical equipment
- Solar equipment
- Outdoor LED display
- Outdoor LED lighting
- Wireless outdoor AP
- Industrial PC
FAQs
Can this be used outdoors?
Yes, these connectors feature an IP67 rating offering waterproof protection making them suitable for both indoor and outdoor use.
What connectors are compatible?
The RS PRO hybrid connector mates with article 179-7954.
