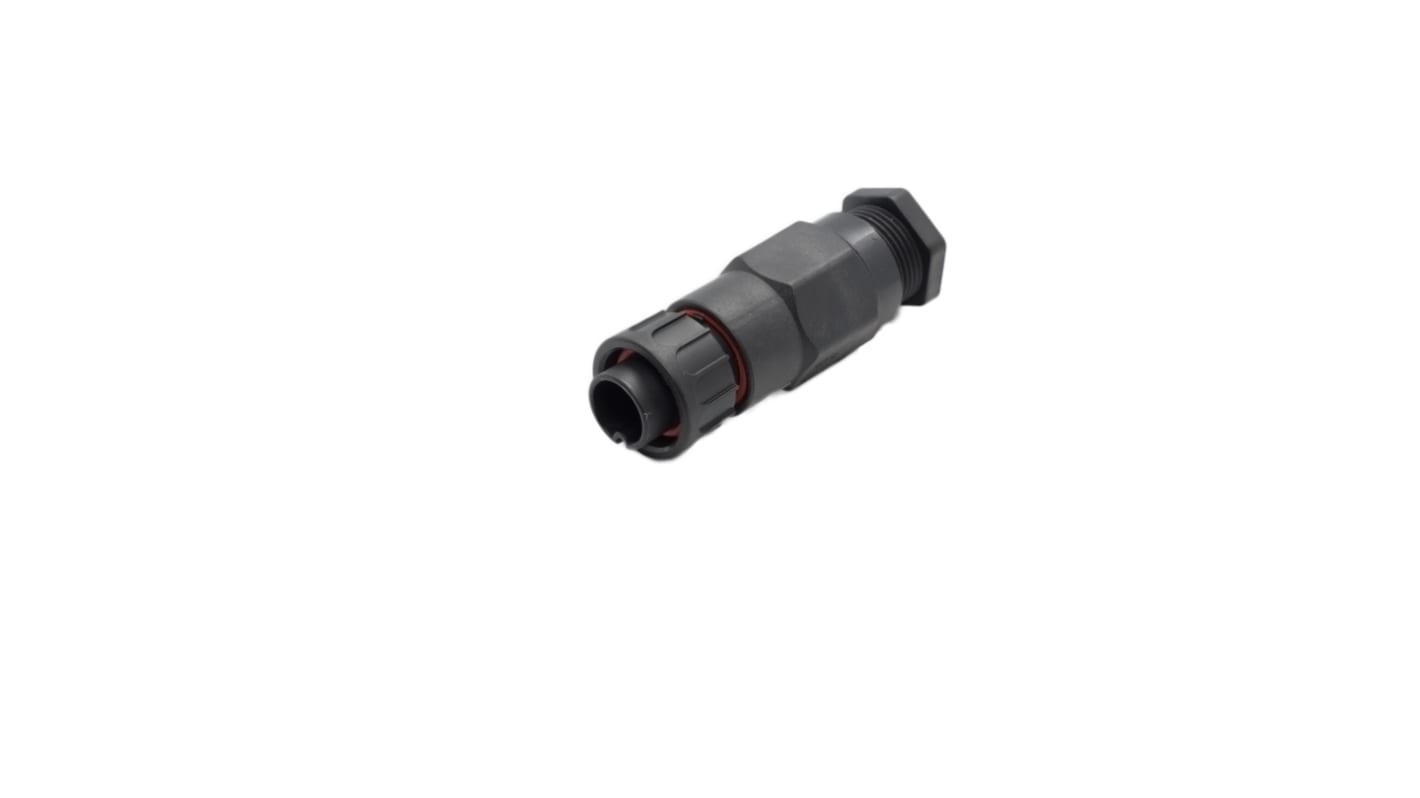

RS PRO Hybrid Power & Signal Connector, 4 + 2 Contacts, Cable Mount, C2 Connector, Plug, Male, IP67

RS Stock No.:: 179-7932
Brand:: RS PRO

RS PRO Hybrid Power & Signal Connector, 4 + 2 Contacts, Cable Mount, C2 Connector, Plug, Male, IP67

Subtotal (1 unit)*

£22.56

(exc. VAT)

£27.07

(inc. VAT)

FREE delivery for orders over £50.00

Last RS stock

Final 12 unit(s), ready to ship

Units	Per unit
1 +	£22.56

*price indicative

An image that shows the hybrid power & signal connectors from RS PRO

Power Up Your Connection!

Discover our range of all-in-one hybrid power and signal connectors for seamless integration.

Discover more

RS Stock No.:: 179-7932
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Number of Contacts	4 + 2
	Mounting Type	Cable Mount
	Connector Size	C2
	Plug/Socket	Plug
	Contact Gender	Male
	Termination Method	Crimp
	IP Rating	IP67
	Current Rating	5A + 10A
	Body Orientation	Straight
	Series	Hybrid Series
	Voltage Rating	300 V
	Mating Type	Threaded
	Housing Material	Thermoplastic
	Pole Format	4P + 2P
	Contact Plating	Gold
	Maximum Operating Temperature	+85°C
	Minimum Operating Temperature	-40°C
	Outer Diameter	5-6mm
	Contact Material	Copper

	Select all
	Brand RS PRO
	Number of Contacts 4 + 2
	Mounting Type Cable Mount
	Connector Size C2
	Plug/Socket Plug
	Contact Gender Male
	Termination Method Crimp
	IP Rating IP67
	Current Rating 5A + 10A
	Body Orientation Straight
	Series Hybrid Series
	Voltage Rating 300 V
	Mating Type Threaded
	Housing Material Thermoplastic
	Pole Format 4P + 2P
	Contact Plating Gold
	Maximum Operating Temperature +85°C
	Minimum Operating Temperature -40°C
	Outer Diameter 5-6mm
	Contact Material Copper

COO (Country of Origin):: TW

RS PRO Hybrid Power & Signal Connector

Introducing the range of RS PRO Hybrid Power and Signal Connectors, the ideal solution for streamlined power and signal connections in a single IP67 rated housing. The specialised features of this connector make it perfect for applications that need efficient and reliable connections in challenging environments like outdoor lighting and digital advertising screens, drone systems, actuator controls, automatic guided vehicles (AGVs), industrial automation and much more.

Features and Benefits:

RS PRO Hybrid Power and Signal Connectors have been specially designed to meet the highest standards of reliability, durability and optimal performance in demanding environments by offering an all-in-one power and signal solution that supports reduced wiring complexity and simplified installations

The full insulated design separates the power and signal wires which enhances both functionality and safety, preventing interference and protecting equipment, while ensuring reliable performance in a range of applications

Each hybrid connector is IP67 rated, providing the highest level of protection against water and spray ingress, dust, dirt and debris, making sure that each connection stays functional and secure, no matter the environment they’re used in

The connectors offer either a threTheseaded or bayonet mating end provides secure connections, minimising signal interruption and offering peace of mind for stable connections, as well as several mounting options for easy and flexible installations to save on valuable time and effort during set up and maintenance

These waterproof hybrid connectors are ideal for reducing the footprint of connections, offering a space saving solution for installations where available space needs to be maximised, while also mitigating potential wiring and connection mistakes, reducing the risk of errors and simplifying installation

Mates with 179-7933

Applications:

Hybrid Power and Signal Connectors are the ideal solution for a range of applications that sit within challenging environments. They work by combining the power and signal cable into one housing, but isolating the power and signal wires separately, offering a streamlined connector that simplifies wiring and reducing the number of connectors needed. Hybrid Connectors are robust and reliable and are designed to withstand harsh environments like industrial automation, light electric vehicles, outdoor lighting and advertising screens, and much more. They’re also well suited for drone systems, automatic guided vehicles, actuator controls, and are an efficient solution for connecting power and data through easy installation and offering enhanced reliability and safety.
