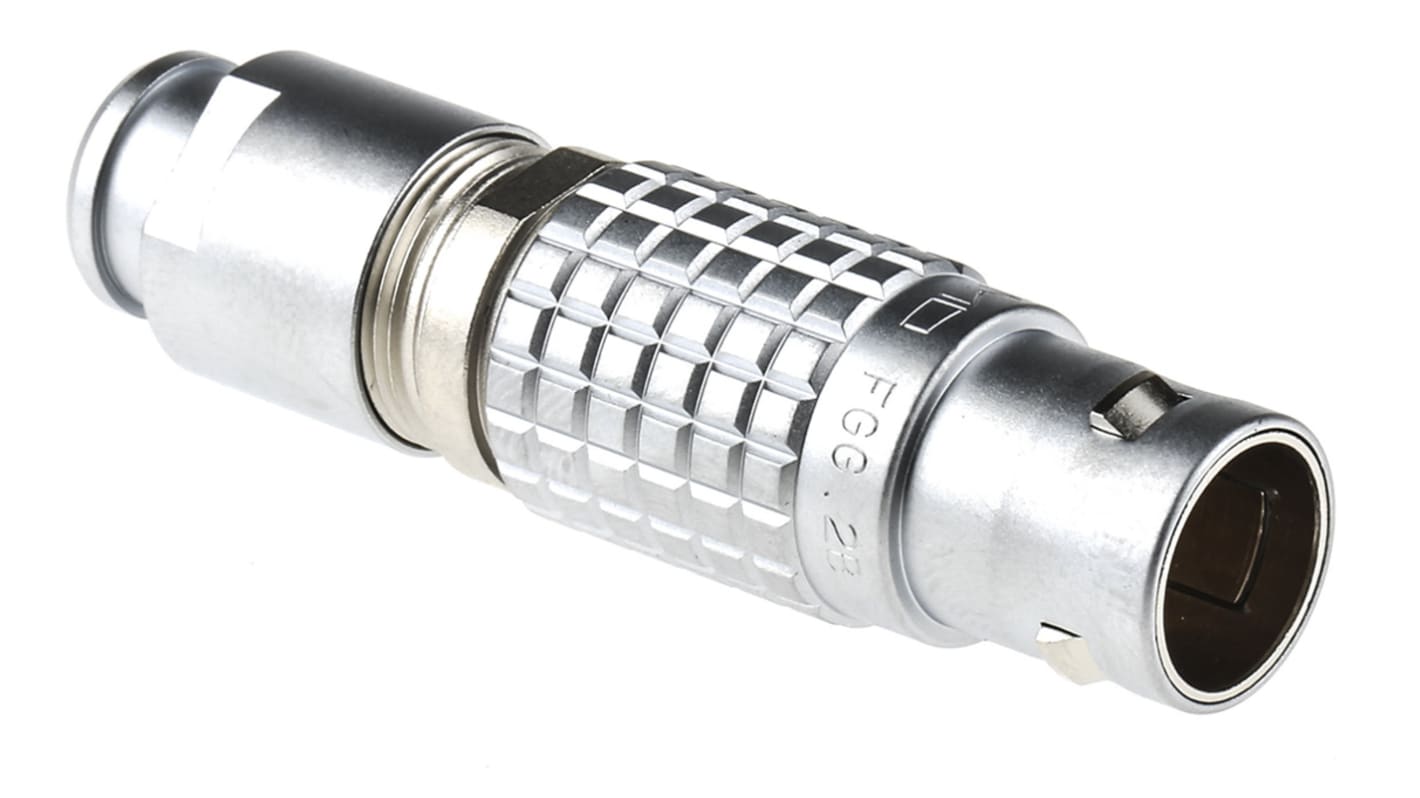

LEMO Circular Connector, 10 Contacts, Cable Mount, Plug, Male, IP50, 2B Series
- RS Stock No.:
- 178-8896
- Distrelec Article No.:
- 303-96-675
- Mfr. Part No.:
- FGG.2B.310.CLAD92Z
- Brand:
- LEMO
Bulk discount available
Subtotal (1 unit)*
£65.45
(exc. VAT)
£78.54
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 47 unit(s) ready to ship
- Plus 30 unit(s) ready to ship from another location
- Plus 50 unit(s) shipping from 08 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £65.45 |
5 - 9 | £63.49 |
10 - 19 | £61.52 |
20 - 49 | £59.56 |
50 + | £56.29 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£35.10
(exc. VAT)
£42.12
(inc. VAT)
- RS Stock No.:
- 178-8896
- Distrelec Article No.:
- 303-96-675
- Mfr. Part No.:
- FGG.2B.310.CLAD92Z
- Brand:
- LEMO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | LEMO | |
Number of Contacts | 10 | |
Mounting Type | Cable Mount | |
Plug/Socket | Plug | |
Contact Gender | Male | |
Termination Method | Solder | |
IP Rating | IP50 | |
Current Rating | 8.0A | |
Series | 2B | |
Body Orientation | Straight | |
Shell Size | 2 | |
Housing Material | Brass | |
Contact Plating | Gold over Nickel | |
Minimum Operating Temperature | -55°C | |
Maximum Operating Temperature | +250°C | |
Contact Material | Brass | |
Select all | ||
---|---|---|
Brand LEMO | ||
Number of Contacts 10 | ||
Mounting Type Cable Mount | ||
Plug/Socket Plug | ||
Contact Gender Male | ||
Termination Method Solder | ||
IP Rating IP50 | ||
Current Rating 8.0A | ||
Series 2B | ||
Body Orientation Straight | ||
Shell Size 2 | ||
Housing Material Brass | ||
Contact Plating Gold over Nickel | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +250°C | ||
Contact Material Brass | ||
- COO (Country of Origin):
- CH
Lemo Circular Connector
The Lemo 2B series 10-contacts male circular connector has a plug in-line connection. This cable mount connector has a current rating of up to 8A. This connector features a highly precise push-pull self-latching system equipped with cable collet and nut for fitting bend relief for an easy and secure connection. It has a rugged and robust design for harsh outdoor applications. This connector is made from chrome-plated brass that includes a nickel-plated brass latch inner sleeve and collet nut. The free plugs are supplied with collets to take a maximum cable diameter of 9mm.
Cable plug
From Lemo, this FGG 0B/1B series cable mount plug offers speedy and durable connection to corresponding sockets and is suitable for a wide range of applications. A selection of collets is also included as part of this offer.
Note:
The current ratings quoted in the table are per pin
Cable plug
From Lemo, this FGG 0B/1B series cable mount plug offers speedy and durable connection to corresponding sockets and is suitable for a wide range of applications. A selection of collets is also included as part of this offer.
Note:
The current ratings quoted in the table are per pin
Features and Benefits
Straight body orientation with cable clamping and positioning guide
Solder termination
Cable acceptance ranges between 8.3mm and 9.2mm
EMC shielding of 360°
Endurance is 5000 mating cycles
Equipped with male contacts for soldering
G keyed
High vibrations and shock resistance
Operating temperature ranges between -55°C and 250°C
PEEK insulating material
Shell size is 2mm
Solder termination
Cable acceptance ranges between 8.3mm and 9.2mm
EMC shielding of 360°
Endurance is 5000 mating cycles
Equipped with male contacts for soldering
G keyed
High vibrations and shock resistance
Operating temperature ranges between -55°C and 250°C
PEEK insulating material
Shell size is 2mm
Applications
Medical devices
Research
Test and measurement instrumentation
Research
Test and measurement instrumentation
Certifications
IP50 rated
UL approved
UL approved
