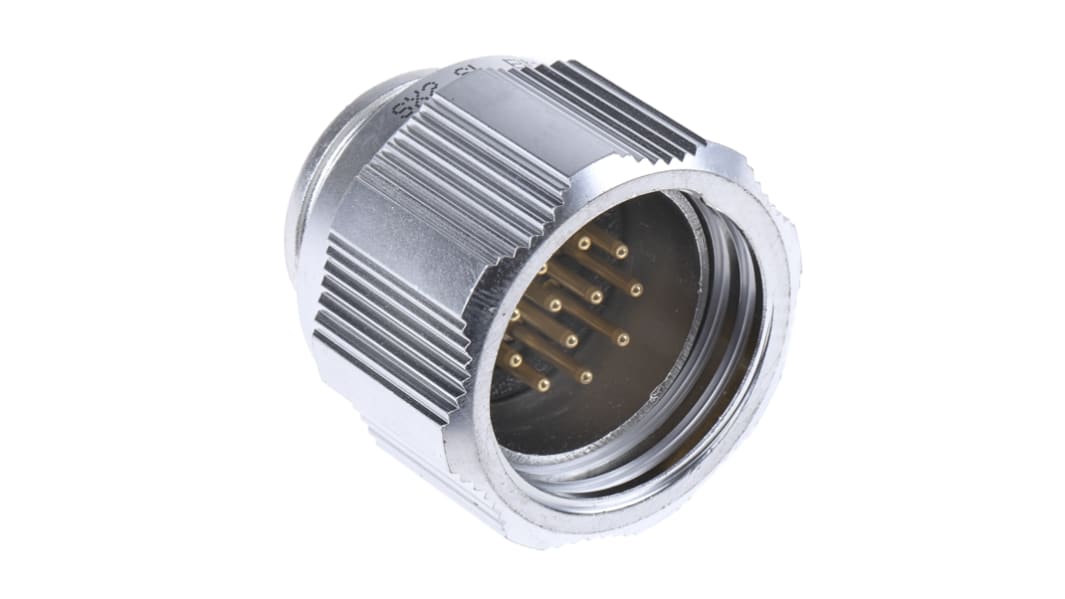

Amphenol Socapex Circular Connector, 12 Contacts, Cable, Standard Connector, Plug, Male, IP67, SL61 Series
- RS Stock No.:
- 178-7304
- Mfr. Part No.:
- SL BM 212 AF
- Brand:
- Amphenol Socapex
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£102.94
(exc. VAT)
£123.53
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 32 unit(s) shipping from 10 August 2026
- Plus 8 unit(s) shipping from 10 August 2026
- Plus 47 unit(s) shipping from 17 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £102.94 |
| 5 - 9 | £99.85 |
| 10 - 14 | £96.76 |
| 15 - 24 | £93.68 |
| 25 + | £87.49 |
*price indicative
- RS Stock No.:
- 178-7304
- Mfr. Part No.:
- SL BM 212 AF
- Brand:
- Amphenol Socapex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Socapex | |
| Number of Contacts | 12 | |
| Product Type | Circular Connector | |
| Mount Type | Cable | |
| Connector Size | Standard | |
| Current | 10A | |
| Plug/Socket | Plug | |
| Contact Gender | Male | |
| IP Rating | IP67 | |
| Series | SL61 | |
| Orientation | Straight | |
| Voltage | 280.0V | |
| Shell Size | 27.5 mm | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Housing Material | Aluminium | |
| Maximum Operating Temperature | 85°C | |
| Pole Format | 4 | |
| Standards/Approvals | No | |
| Contact Plating | Gold | |
| Contact Material | Aluminium | |
| Select all | ||
|---|---|---|
Brand Amphenol Socapex | ||
Number of Contacts 12 | ||
Product Type Circular Connector | ||
Mount Type Cable | ||
Connector Size Standard | ||
Current 10A | ||
Plug/Socket Plug | ||
Contact Gender Male | ||
IP Rating IP67 | ||
Series SL61 | ||
Orientation Straight | ||
Voltage 280.0V | ||
Shell Size 27.5 mm | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°C | ||
Housing Material Aluminium | ||
Maximum Operating Temperature 85°C | ||
Pole Format 4 | ||
Standards/Approvals No | ||
Contact Plating Gold | ||
Contact Material Aluminium | ||
Non Compliant
Amphenol Circular Connector
The Amphenol SL61 series 12-pole male circular connector has a plug-type connection. This cable mount body of the plug and inline receptacle connector has a voltage rating of 280V and a current rating of up to 10A per contact. The circular connector has a Compact design with easy wiring and screw lock thread for secure mating attenuation. The connector is MADE of aluminium alloy with nickel plating which provides them excellent reliability and robustness.
Amphenol - SL 61 Series Circular Connectors
This family of connectors is widely used in industrial and electronic applications.
This series includes sockets fitted with male or female contacts, plugs with a choice of straight or angled connectors and accessories (blanking plugs, sealing sleeves).
Available in four enclosure sizes, four types of contacts including currents ranging from 7.5 to 50 Amperes, and different contact arrangements.
Connected using screws, with positioning and guiding pin.
Features and Benefits
Straight body orientation
Solder termination
Contact size is 16
Operating temperature ranges between -40°C and 85°C
Receptacle with locking ring
Applications
Automation
Entertainment (brand-lights)
Instrumentation
Power distribution
Robotics
Transport
Certifications
IP55 rated
