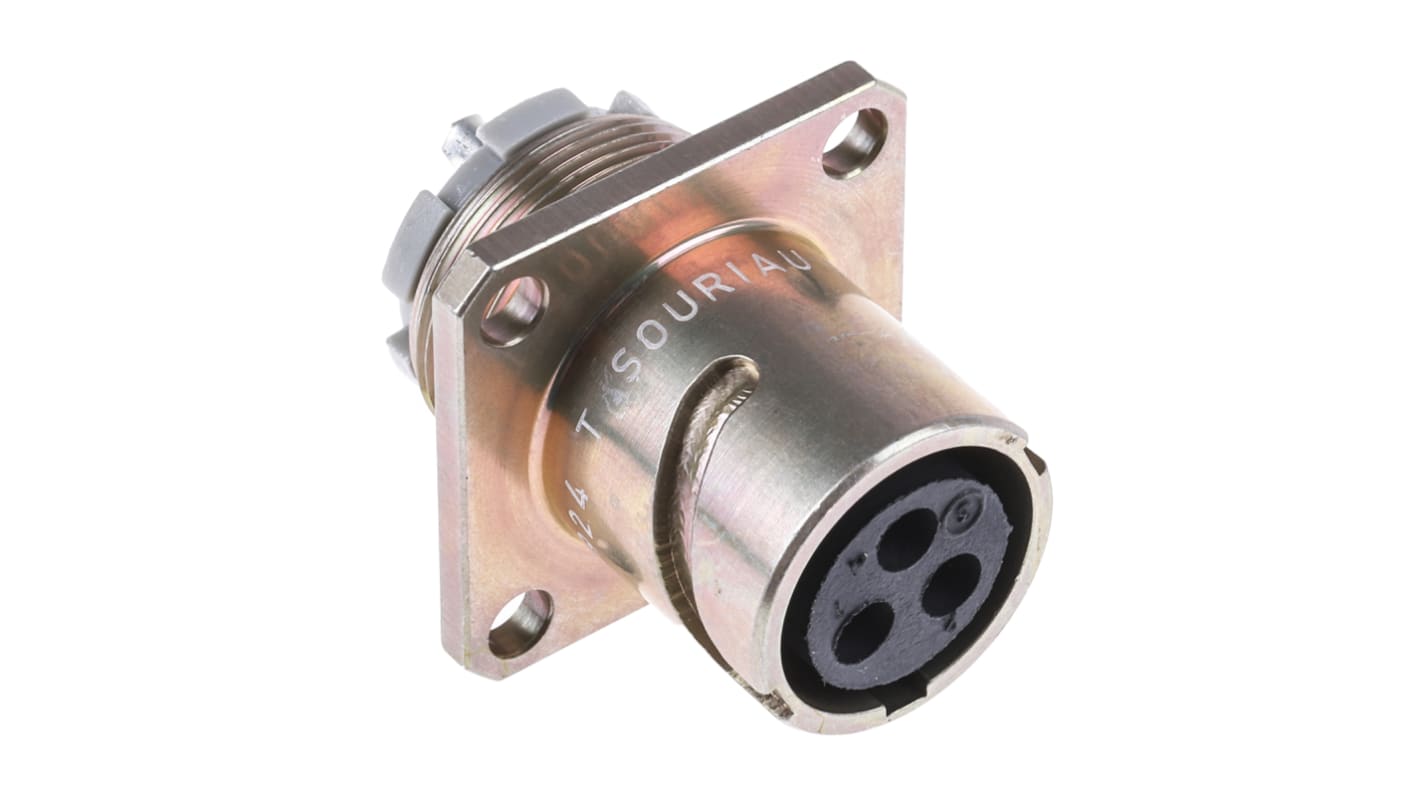

Souriau Sunbank by Eaton Circular Connector, 3 Contacts, Panel Mount, Socket, Female, IP65, 840 Series
- RS Stock No.:
- 175-4332
- Mfr. Part No.:
- 84011172
- Brand:
- Souriau Sunbank by Eaton
Bulk discount available
Subtotal (1 unit)*
£162.26
(exc. VAT)
£194.71
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
- Plus 51 unit(s) shipping from 11 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £162.26 |
| 10 - 49 | £155.93 |
| 50 - 99 | £150.25 |
| 100 - 249 | £144.89 |
| 250 + | £139.86 |
*price indicative
- RS Stock No.:
- 175-4332
- Mfr. Part No.:
- 84011172
- Brand:
- Souriau Sunbank by Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Souriau Sunbank by Eaton | |
| Number of Contacts | 3 | |
| Mounting Type | Panel Mount | |
| Connector Size | Standard | |
| Plug/Socket | Socket | |
| Contact Gender | Female | |
| Termination Method | Solder | |
| IP Rating | IP65 | |
| Current Rating | 11.0A | |
| Body Orientation | Straight | |
| Series | 840 | |
| Mating Type | Bayonet | |
| Housing Material | Aluminium | |
| Contact Plating | Silver | |
| Contact Material | Copper | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand Souriau Sunbank by Eaton | ||
Number of Contacts 3 | ||
Mounting Type Panel Mount | ||
Connector Size Standard | ||
Plug/Socket Socket | ||
Contact Gender Female | ||
Termination Method Solder | ||
IP Rating IP65 | ||
Current Rating 11.0A | ||
Body Orientation Straight | ||
Series 840 | ||
Mating Type Bayonet | ||
Housing Material Aluminium | ||
Contact Plating Silver | ||
Contact Material Copper | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Non Compliant
- COO (Country of Origin):
- FR
Souriau Circular Connector
The Souriau 840 series 3-poles female circular connector has a socket type connection. This connector has a voltage rating of 2000vrms and a current rating is up to 11A per contact. The connector has a bayonet coupling mating system that gives it quick-connection and disconnection capabilities. The connector shell is made from aluminium alloy over alodine plating with silver-plated copper alloy contacts. The snap-lock latch has a bayonet design and a mechanical indexing system guides the housings. This connector is supplied with backnut.
Supplied with:
A plug, a receptacle or in-line receptacle, backshells and accessories
Supplied with:
A plug, a receptacle or in-line receptacle, backshells and accessories
Features and Benefits
Solder termination
Straight body orientation
Durability of 500 mating cycles
Operation temperature ranges between -40°C and 85°C
Straight body orientation
Durability of 500 mating cycles
Operation temperature ranges between -40°C and 85°C
Applications
Factory automation and machine tools
Test and measurement instrumentation
Transportation
Test and measurement instrumentation
Transportation
Certifications
IP65 rated
