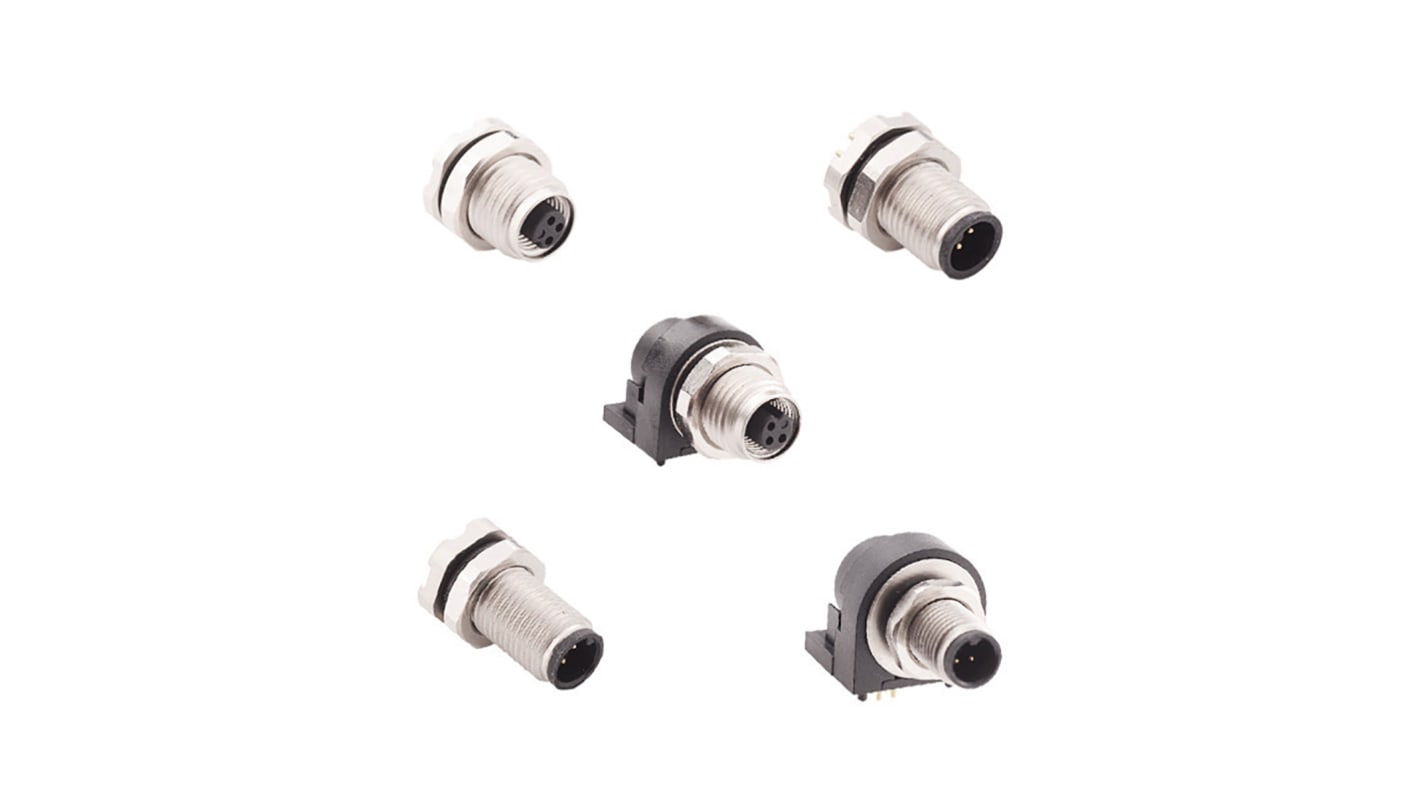

Norcomp Connector, 2 Contacts, Panel Mount, M5 Connector, Plug, Male, IP67, IP68, M Series
- RS Stock No.:
- 174-8588
- Mfr. Part No.:
- 853-002-113R004
- Brand:
- Norcomp
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 174-8588
- Mfr. Part No.:
- 853-002-113R004
- Brand:
- Norcomp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norcomp | |
| Number of Contacts | 2 | |
| Mounting Type | Panel Mount | |
| Connector Size | M5 | |
| Plug/Socket | Plug | |
| Contact Gender | Male | |
| Termination Method | Solder | |
| IP Rating | IP67, IP68 | |
| Current Rating | 1.0A | |
| Body Orientation | Right Angle | |
| Series | M | |
| Voltage Rating | 60 V | |
| Mating Type | Threaded | |
| Housing Material | Thermoplastic | |
| Pole Format | 2P | |
| Contact Plating | Gold | |
| Maximum Operating Temperature | +85°C | |
| Series Number | 853 | |
| Contact Material | Brass | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand Norcomp | ||
Number of Contacts 2 | ||
Mounting Type Panel Mount | ||
Connector Size M5 | ||
Plug/Socket Plug | ||
Contact Gender Male | ||
Termination Method Solder | ||
IP Rating IP67, IP68 | ||
Current Rating 1.0A | ||
Body Orientation Right Angle | ||
Series M | ||
Voltage Rating 60 V | ||
Mating Type Threaded | ||
Housing Material Thermoplastic | ||
Pole Format 2P | ||
Contact Plating Gold | ||
Maximum Operating Temperature +85°C | ||
Series Number 853 | ||
Contact Material Brass | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- TW
M5 connectors available in: 2 pin, 3 pin, 4 pin
Non-removable Contacts
Waterproof
-40°C to +85C Temperature Range
Available as loose piece or as pre-made cables
SHELL: Brass-Nickel Plated
INSULATOR: Male: PBT-Black
Female: PBT-Black
CONTACTS: Male: Brass, Gold Plated
Female: Phosphor Bronze, Gold Plated
NUT: Brass-Nickel Plated
O-RING: Brass-Nickel Plated
Non-removable Contacts
Waterproof
-40°C to +85C Temperature Range
Available as loose piece or as pre-made cables
SHELL: Brass-Nickel Plated
INSULATOR: Male: PBT-Black
Female: PBT-Black
CONTACTS: Male: Brass, Gold Plated
Female: Phosphor Bronze, Gold Plated
NUT: Brass-Nickel Plated
O-RING: Brass-Nickel Plated
