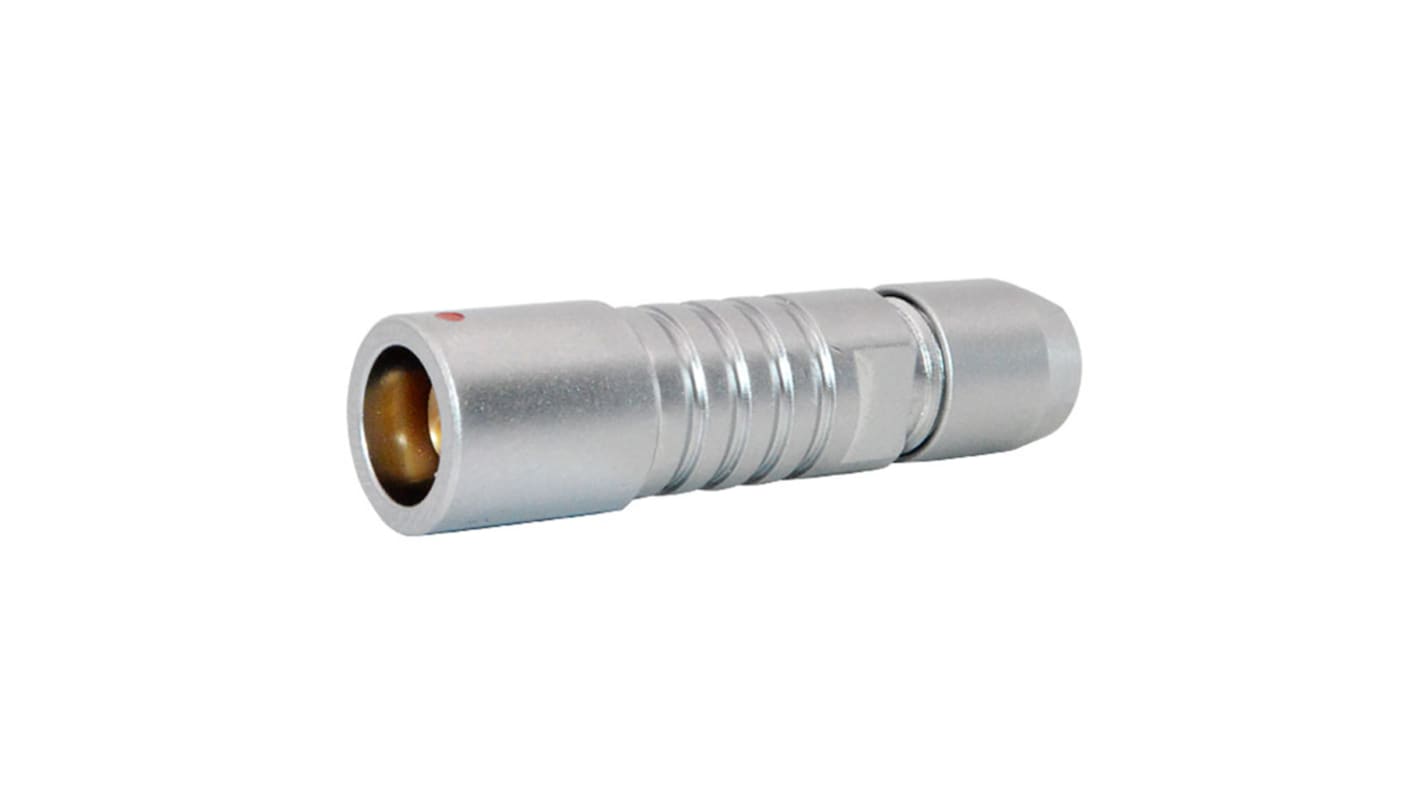

CAMDENBOSS Circular Connector, 7 Contacts, Cable Mount, Socket, Female, IP68, CamCirc CCT1 Series
- RS Stock No.:
- 174-7759
- Mfr. Part No.:
- CCT1S1/07
- Brand:
- CAMDENBOSS
Discontinued
- RS Stock No.:
- 174-7759
- Mfr. Part No.:
- CCT1S1/07
- Brand:
- CAMDENBOSS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | CAMDENBOSS | |
| Number of Contacts | 7 | |
| Mounting Type | Cable Mount | |
| Plug/Socket | Socket | |
| Contact Gender | Female | |
| Termination Method | Solder | |
| IP Rating | IP68 | |
| Current Rating | 2.0A | |
| Series | CamCirc CCT1 | |
| Body Orientation | Straight | |
| Voltage Rating | 160.0 V | |
| Mating Type | Push-Pull | |
| Housing Material | Brass | |
| Pole Format | 7P | |
| Contact Plating | Gold | |
| Maximum Operating Temperature | +60°C | |
| Contact Material | Brass | |
| Select all | ||
|---|---|---|
Brand CAMDENBOSS | ||
Number of Contacts 7 | ||
Mounting Type Cable Mount | ||
Plug/Socket Socket | ||
Contact Gender Female | ||
Termination Method Solder | ||
IP Rating IP68 | ||
Current Rating 2.0A | ||
Series CamCirc CCT1 | ||
Body Orientation Straight | ||
Voltage Rating 160.0 V | ||
Mating Type Push-Pull | ||
Housing Material Brass | ||
Pole Format 7P | ||
Contact Plating Gold | ||
Maximum Operating Temperature +60°C | ||
Contact Material Brass | ||
- COO (Country of Origin):
- CN
CamCirc Cable Mount Socket, 102 Size, 7 Pole
7 Poles
Cable mount
Receptacle
Key coded to prevent mis-connection
Does not disconnect when the cable is under load or stress
Tough, high performance interconnection solution
Suitable for broadcasting, autosport, military, rail, marine, security, industrial and agricultural
Ideal for harsh environments.
Cable mount
Receptacle
Key coded to prevent mis-connection
Does not disconnect when the cable is under load or stress
Tough, high performance interconnection solution
Suitable for broadcasting, autosport, military, rail, marine, security, industrial and agricultural
Ideal for harsh environments.
