The 4000 Series brings high power and data in a compact form factor. Its small and mightycharacteristics make it ideal for power and data applications across a wide variety of Markets.

2, 3, 4, 6, 8, 10 & 12 pole configuration
Power ratings up to 13A, 600V
Cable range from 3 to 7mm
Diameter over coupling ring 19.7mm
Flex, Flex In-Line, Rear Panel andPCB mounting body styles
Colour coded O-rings & washers for easy identificaiton purposes
Plug and Socket versions in all body styles
Flame Retardant moulding material
Contacts supplied separately (except PCB versions)
Sealing caps available
Crimp and solder contacts

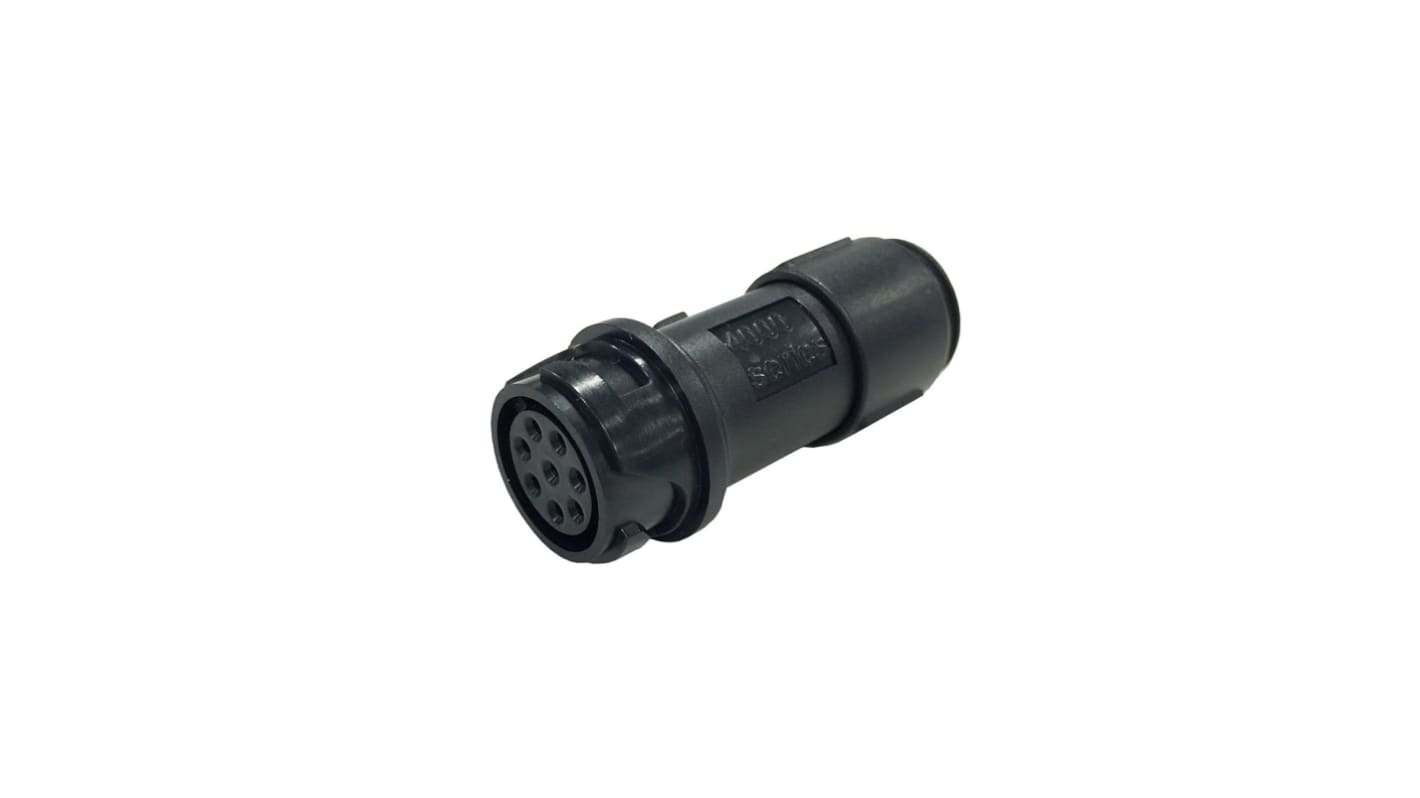

In-Line Flex Cable Connector PXP4011 Series 4 Pole Plug 4.5mm-5.0mm Cable

Mates with Flex Cable connector PXP4010
Pin or socket
2, 3, 4, 6, 8, 10 & 12 pole
For in-line cable connection
Contacts supplied separately

Select all	Attribute	Value
	Brand	Bulgin
	Number of Contacts	4
	Mounting Type	Cable Mount
	Connector Size	Miniature
	Plug/Socket	Socket
	Contact Gender	Male
	Termination Method	Crimp, Solder
	IP Rating	IP66, IP68, IP69K
	Current Rating	3.0A
	Series	Buccaneer 4000
	Body Orientation	Straight
	Voltage Rating	600.0 V
	Shell Size	20
	Mating Type	Quick Connect
	Housing Material	Polymer
	Pole Format	4P
	Strain Relief	No
	Contact Plating	Gold
	Shielded/Unshielded	Unshielded
	Minimum Operating Temperature	-40°C
	Contact Material	Copper
	Maximum Operating Temperature	+120°C

	Select all
	Brand Bulgin
	Number of Contacts 4
	Mounting Type Cable Mount
	Connector Size Miniature
	Plug/Socket Socket
	Contact Gender Male
	Termination Method Crimp, Solder
	IP Rating IP66, IP68, IP69K
	Current Rating 3.0A
	Series Buccaneer 4000
	Body Orientation Straight
	Voltage Rating 600.0 V
	Shell Size 20
	Mating Type Quick Connect
	Housing Material Polymer
	Pole Format 4P
	Strain Relief No
	Contact Plating Gold
	Shielded/Unshielded Unshielded
	Minimum Operating Temperature -40°C
	Contact Material Copper
	Maximum Operating Temperature +120°C

Bulgin Circular Connector, 4 Contacts, Cable Mount, Miniature Connector, Socket, Male, IP66, IP68, IP69K, Buccaneer
