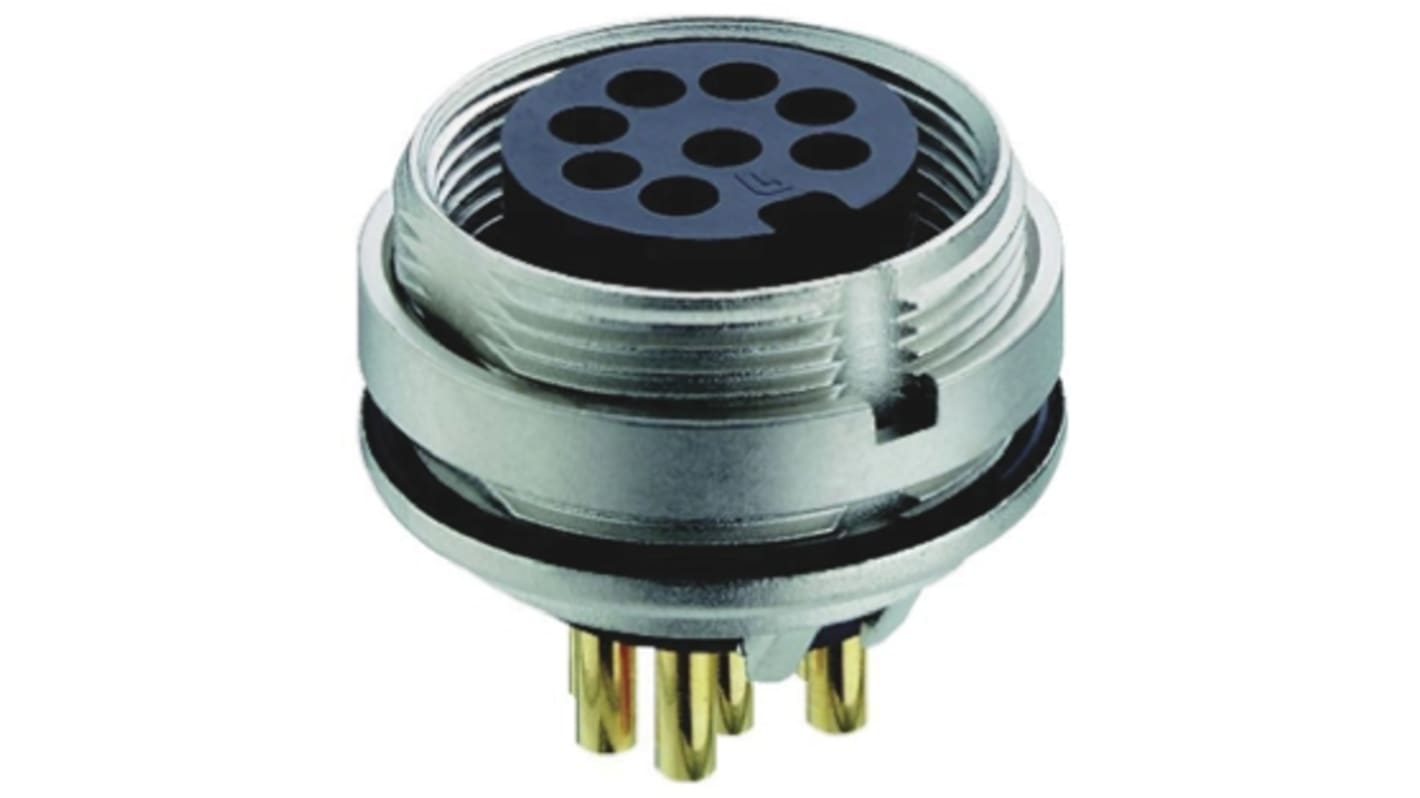

Lumberg Circular Connector, 8 Contacts, Rear Mount, M16 Connector, Socket, Female, IP68, 03 Series
- RS Stock No.:
- 170-5594
- Mfr. Part No.:
- 0305-2 08-1
- Brand:
- Lumberg
Available to back order for despatch 02/05/2024
Added
Price Each (In a Box of 50)
£9.457
(exc. VAT)
£11.348
(inc. VAT)
| Units | Per unit | Per Box* |
| 50 + | £9.457 | £472.85 |
| *price indicative | ||
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 170-5594
- Mfr. Part No.:
- 0305-2 08-1
- Brand:
- Lumberg
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CZ
Product Details
SWUM™ 0305-2 Chassis Socket Rear Mount
SWUM™ 0305-2 Chassis Sockets rear mounting which feature the added benefit of being sealed when unmated which prevents dust or moisture from entering the inside of a device when a connector is left unmated.
Rear mount, threaded with solder terminals
Contact resistance ≤ 5 mΩ
Rated current 5 A
Rated voltage 60 Vac
Test voltage 1 kV/60 s
Insulation resistance > 1 TΩ
IP68/67
Temperature range -40°C → +85°C
Gasket material: NBR
Contact resistance ≤ 5 mΩ
Rated current 5 A
Rated voltage 60 Vac
Test voltage 1 kV/60 s
Insulation resistance > 1 TΩ
IP68/67
Temperature range -40°C → +85°C
Gasket material: NBR
Approvals
IEC 61076-2-106 and AISG
Lumberg Connectors Standard and SWUM™ - IP68
Lumberg Connectors Standard and SWUM™ - IP68 Chassis and cable mount plugs and sockets up to 12 way, with or without 360° shielding. Typical applications are control engineering, automation technology and medical instrumentation.
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 8 |
| Mounting Type | Rear Mount |
| Connector Size | M16 |
| Plug/Socket | Socket |
| Contact Gender | Female |
| Termination Method | Solder |
| IP Rating | IP68 |
| Current Rating | 5.0A |
| Body Orientation | Straight |
| Series | 03 |
| Voltage Rating | 60 V |
| Shell Size | 20 |
| Housing Material | Zinc |
| Contact Plating | Silver |
| Contact Material | Brass |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
- RS Stock No.:
- 170-5594
- Mfr. Part No.:
- 0305-2 08-1
- Brand:
- Lumberg
