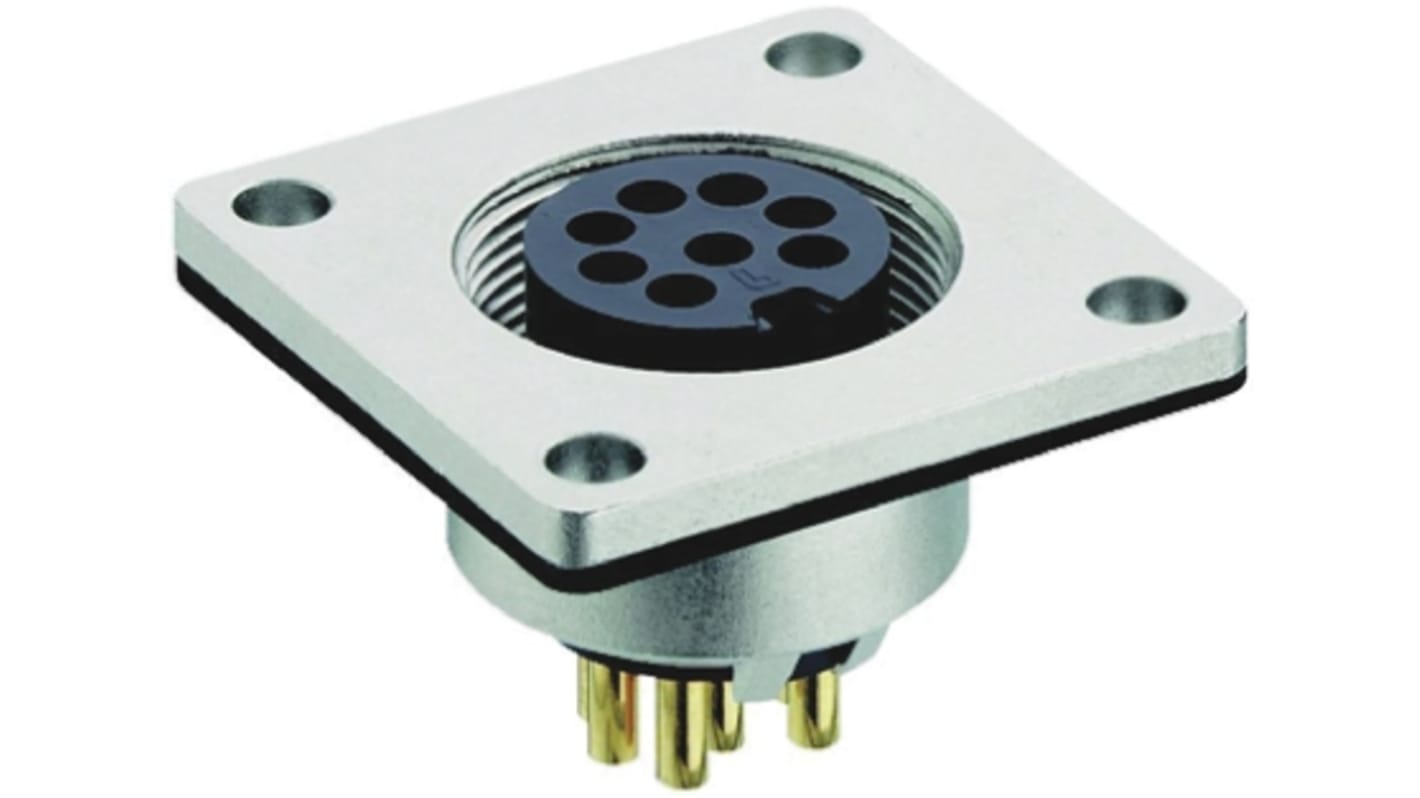

Lumberg Circular Connector, 8 Contacts, Panel Mount, M16 Connector, Socket, Female, IP68, 03 Series

View this category
Unavailable
RS will no longer stock this product.
RS Stock No.:
161-7875
Mfr. Part No.:
0308-2 08-1
Brand:
Lumberg
Find similar products by selecting one or more attributes.
Select all

Brand

Lumberg

Number of Contacts

8

Mounting Type

Panel Mount

Connector Size

M16

Plug/Socket

Socket

Contact Gender

Female

Termination Method

Solder

IP Rating

IP68

Current Rating

5.0A

Body Orientation

Straight

Series

03

Voltage Rating

60.0 V

Shell Size

17

Housing Material

Nickel, Zinc

Contact Plating

Gold over Silver

Maximum Operating Temperature

+85°C

Minimum Operating Temperature

-40°C

Contact Material

Brass

COO (Country of Origin):
CZ

SWUM™ 0308-2 Flange Chassis Socket


SWUM™ 0308-2 Flange Chassis Sockets Front mounting which feature the added benefit of being sealed when unmated which prevents dust or moisture from entering the inside of a device when a connector is left unmated.

Front mount, threaded with solder terminals
Contact resistance ≤ 5 mΩ
Rated current 5 A
Rated voltage 60 Vac
Test voltage 1 kV/60 s
Insulation resistance > 1 TΩ
IP68/67
Temperature range -40°C → +85°C
Gasket material: NBR

Approvals

IEC 61076-2-106 and AISG

Lumberg Circular Connector


The Lumberg 0308-2 series is an 8-pole, panel mount female connector with a Socket type connection. It has nickel and zinc housing material, threaded joint and solder terminals. This connector's socket type has brass contacts and plated with gold over the silver. The connector has a voltage rating of 60VAC and a current rating of 5A. The rugged connector is designed to provide a convenient and reliable connection system suited to a wide range of industrial applications.

Features and Benefits


• Dust protected
• High ingress protection
• Moisture protected
• Straight body orientation
• Temperature ranges between -40°C and 85°C

Applications


• Control engineering
• Electrical panels
• Factory automation
• Industrial machinery
• Medical instrumentation

Certifications


• AISG approved
• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
• EC 61076-2-106
• IP68 rated


Lumberg Connectors Standard and SWUM™ - IP68


Lumberg Connectors Standard and SWUM™ - IP68 Chassis and cable mount plugs and sockets up to 12 way, with or without 360° shielding. Typical applications are control engineering, automation technology and medical instrumentation.
