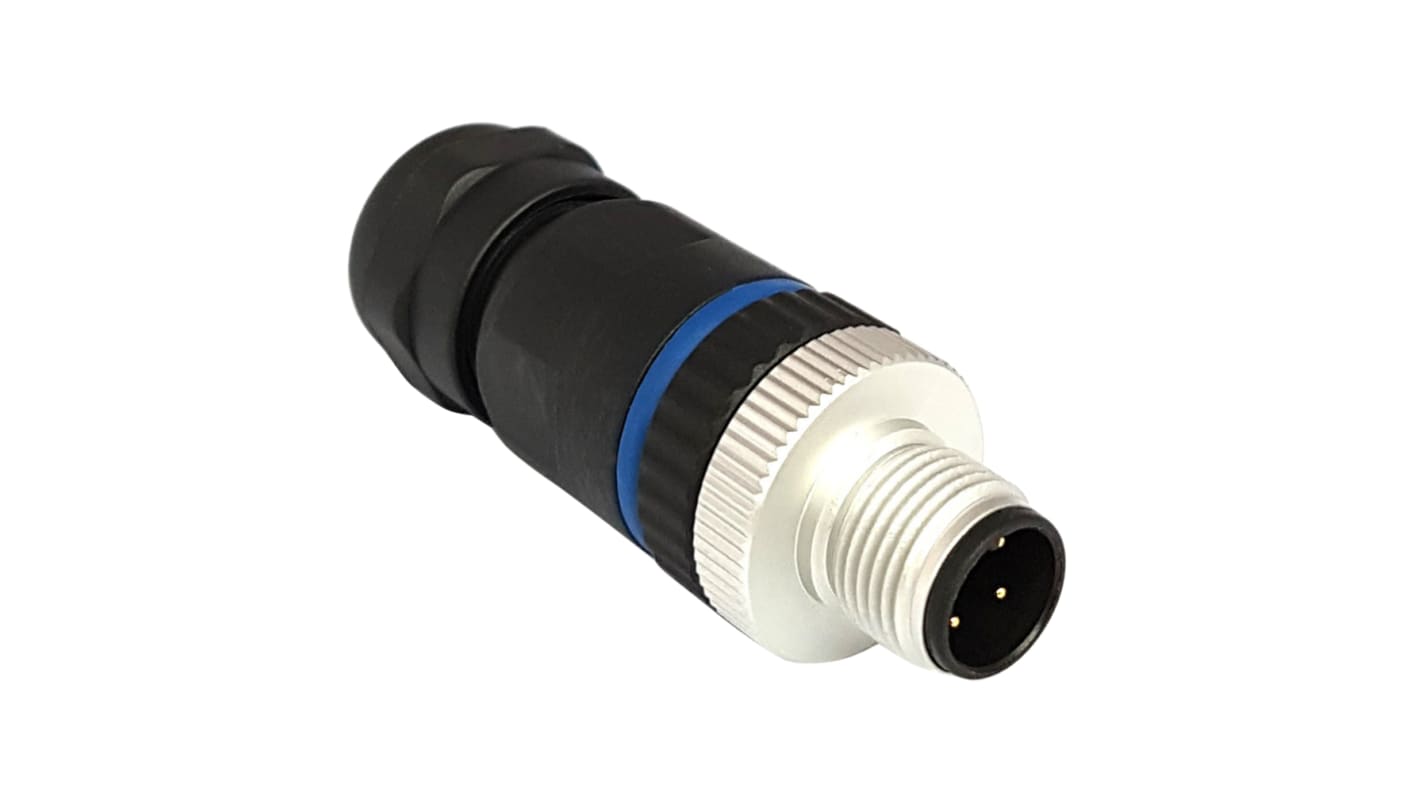

Bulgin Circular Connector, 5 Contacts, Panel Mount, M12 Connector, Plug, Male, IP67, Buccaneer M12 Series
- RS Stock No.:
- 144-6790
- Distrelec Article No.:
- 300-88-711
- Mfr. Part No.:
- PXPPAM12FIM05ASTPG9
- Brand:
- Bulgin
Subtotal (1 unit)*
£23.53
(exc. VAT)
£28.24
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 18 unit(s) shipping from 27 October 2025
- Plus 75 unit(s) shipping from 19 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £23.53 |
*price indicative
- RS Stock No.:
- 144-6790
- Distrelec Article No.:
- 300-88-711
- Mfr. Part No.:
- PXPPAM12FIM05ASTPG9
- Brand:
- Bulgin
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bulgin | |
| Number of Contacts | 5 | |
| Mounting Type | Panel Mount | |
| Connector Size | M12 | |
| Plug/Socket | Plug | |
| Contact Gender | Male | |
| Termination Method | Screw | |
| IP Rating | IP67 | |
| Current Rating | 4.0A | |
| Series | Buccaneer M12 | |
| Body Orientation | Straight | |
| Voltage Rating | 60.0 V | |
| Coding | A | |
| Shell Size | 20 | |
| Mating Type | Threaded | |
| Housing Material | Polymer | |
| Pole Format | 5 | |
| Strain Relief | No | |
| Contact Plating | Gold | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +80°C | |
| Contact Material | Brass | |
Select all | ||
|---|---|---|
Brand Bulgin | ||
Number of Contacts 5 | ||
Mounting Type Panel Mount | ||
Connector Size M12 | ||
Plug/Socket Plug | ||
Contact Gender Male | ||
Termination Method Screw | ||
IP Rating IP67 | ||
Current Rating 4.0A | ||
Series Buccaneer M12 | ||
Body Orientation Straight | ||
Voltage Rating 60.0 V | ||
Coding A | ||
Shell Size 20 | ||
Mating Type Threaded | ||
Housing Material Polymer | ||
Pole Format 5 | ||
Strain Relief No | ||
Contact Plating Gold | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +80°C | ||
Contact Material Brass | ||
- COO (Country of Origin):
- CN
Bulgin’s M12 connectors provide a cost effective and flexible connectivity solution for onsite installations, helping to decrease downtime in process control, manufacturing automation and industrial instrumentation applications M12 connectors are established as one of the most reliable and efficient connection standards for Industrial Machinery and Factory Automation applications.
Reliable industry standard screw locking mechanism
IP67 degree of protection
A, B and D Coded versions
Field installable, cable and panel mount options
Plastic and metal options variants
Straight and right angled forms
Overmolded PVC or PUR cable connectors
Shielded options
Pole variants from 3 – 12
IP67 degree of protection
A, B and D Coded versions
Field installable, cable and panel mount options
Plastic and metal options variants
Straight and right angled forms
Overmolded PVC or PUR cable connectors
Shielded options
Pole variants from 3 – 12
M12 Flex Inline Body Male
