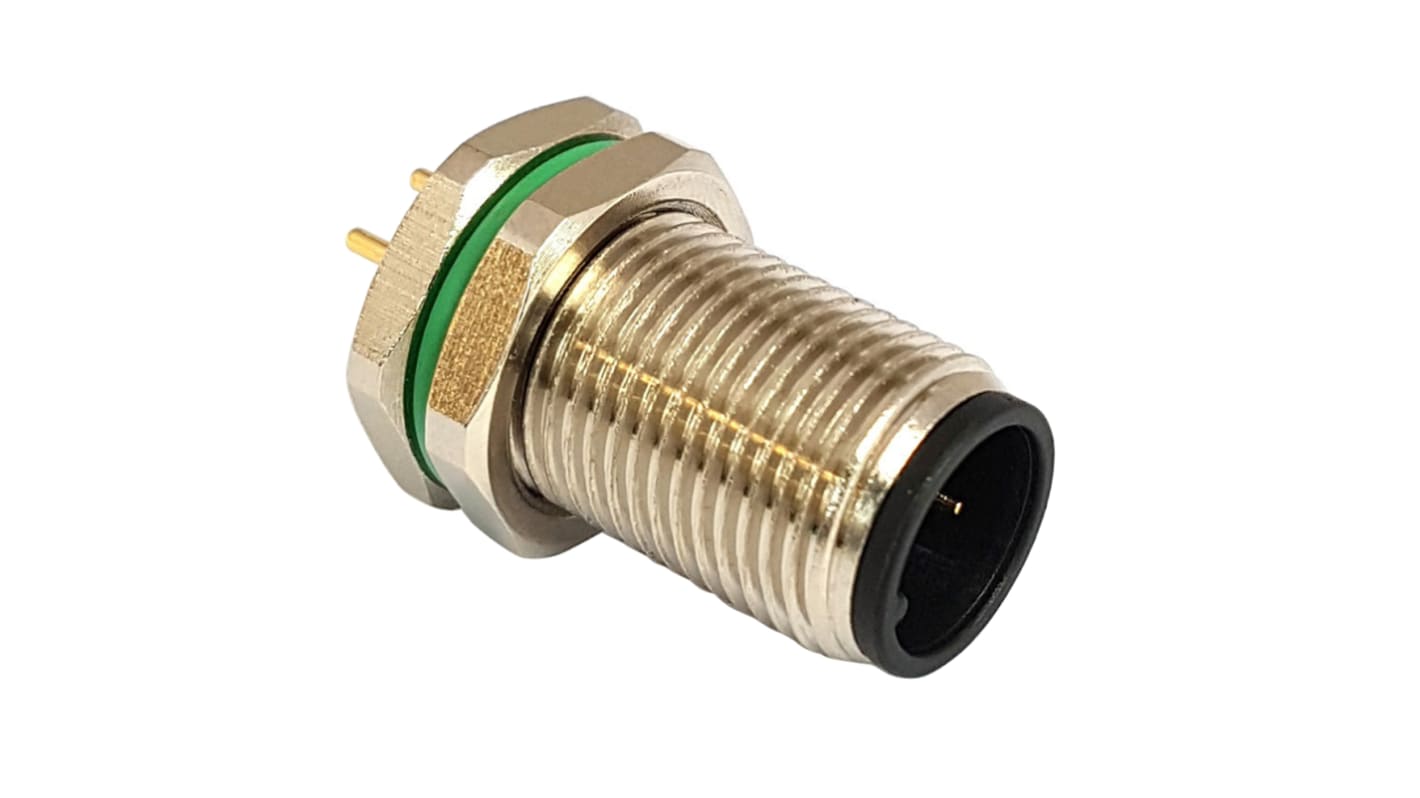

Bulgin Circular Connector, 5 Contacts, Rear Mount, M12 Connector, Socket, Male, IP67, Buccaneer M12 Series
- RS Stock No.:
- 144-6769
- Mfr. Part No.:
- PXMBNI12RPM05APCM12
- Brand:
- Bulgin
Bulk discount available
Subtotal (1 unit)*
£24.67
(exc. VAT)
£29.60
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £24.67 |
| 5 - 24 | £22.20 |
| 25 - 49 | £20.99 |
| 50 + | £19.71 |
*price indicative
- RS Stock No.:
- 144-6769
- Mfr. Part No.:
- PXMBNI12RPM05APCM12
- Brand:
- Bulgin
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bulgin | |
| Number of Contacts | 5 | |
| Mounting Type | Rear Mount | |
| Connector Size | M12 | |
| Plug/Socket | Socket | |
| Contact Gender | Male | |
| Termination Method | PCB | |
| IP Rating | IP67 | |
| Current Rating | 4.0A | |
| Series | Buccaneer M12 | |
| Body Orientation | Straight | |
| Voltage Rating | 60.0 V | |
| Coding | A | |
| Shell Size | 12 | |
| Mating Type | Threaded | |
| Housing Material | Nickel | |
| Pole Format | 5 | |
| Strain Relief | No | |
| Contact Plating | Gold | |
| Contact Material | Brass | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +80°C | |
Select all | ||
|---|---|---|
Brand Bulgin | ||
Number of Contacts 5 | ||
Mounting Type Rear Mount | ||
Connector Size M12 | ||
Plug/Socket Socket | ||
Contact Gender Male | ||
Termination Method PCB | ||
IP Rating IP67 | ||
Current Rating 4.0A | ||
Series Buccaneer M12 | ||
Body Orientation Straight | ||
Voltage Rating 60.0 V | ||
Coding A | ||
Shell Size 12 | ||
Mating Type Threaded | ||
Housing Material Nickel | ||
Pole Format 5 | ||
Strain Relief No | ||
Contact Plating Gold | ||
Contact Material Brass | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +80°C | ||
- COO (Country of Origin):
- CN
Bulgin’s M12 connectors provide a cost effective and flexible connectivity solution for onsite installations, helping to decrease downtime in process control, manufacturing automation and industrial instrumentation applications M12 connectors are established as one of the most reliable and efficient connection standards for Industrial Machinery and Factory Automation applications.
Reliable industry standard screw locking mechanism
IP67 degree of protection
A, B and D Coded versions
Field installable, cable and panel mount options
Plastic and metal options variants
Straight and right angled forms
Overmolded PVC or PUR cable connectors
Shielded options
Pole variants from 3 – 12
IP67 degree of protection
A, B and D Coded versions
Field installable, cable and panel mount options
Plastic and metal options variants
Straight and right angled forms
Overmolded PVC or PUR cable connectors
Shielded options
Pole variants from 3 – 12
M12 Rear Panel Mounting Male
