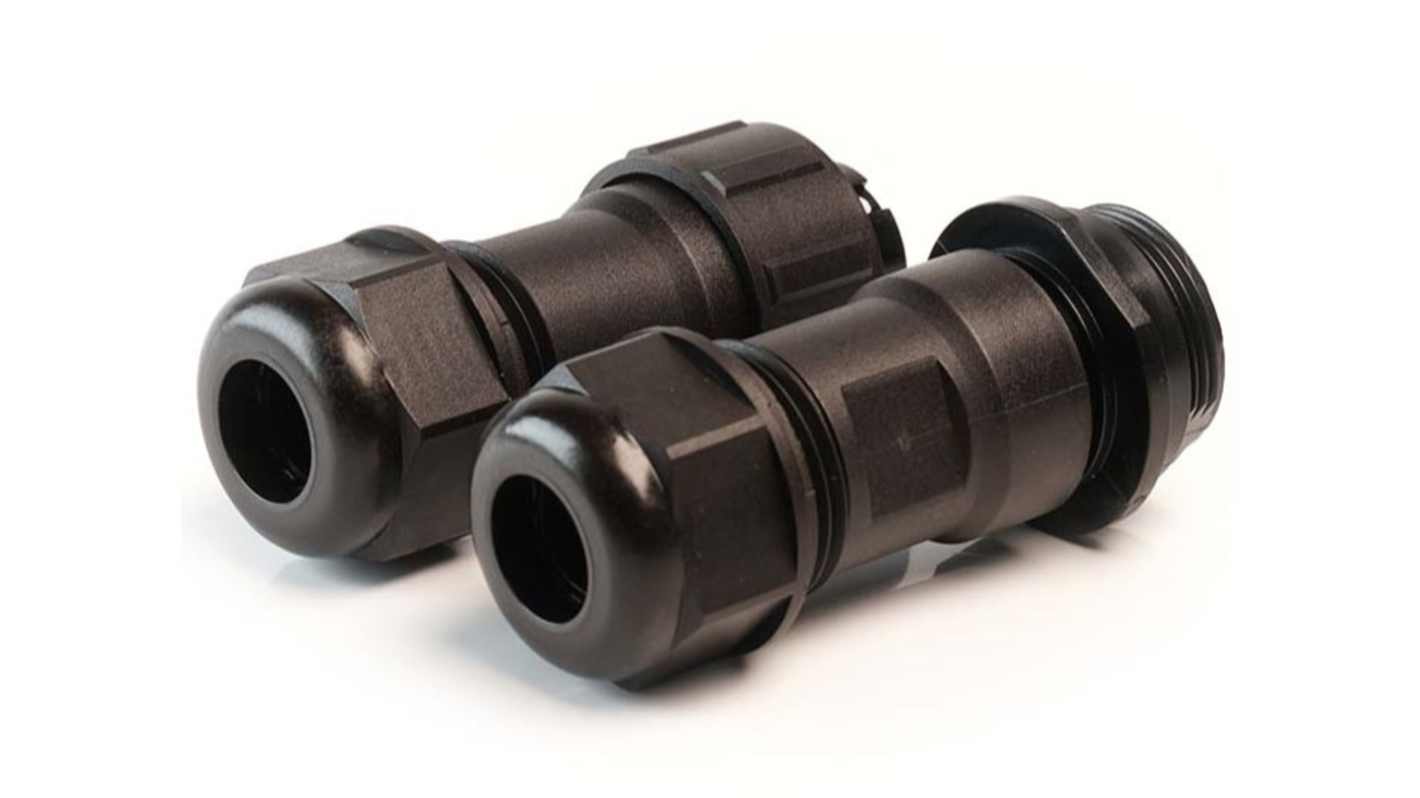

RS PRO Circular Connector, 7 Contacts, Cable MountPlug and Socket, Male and Female Contacts, IP68
- RS Stock No.:
- 144-4218
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 set)*
£21.15
(exc. VAT)
£25.38
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 30 unit(s) ready to ship
- Plus 28 unit(s) ready to ship from another location
- Plus 30 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Set(s) | Per Set |
---|---|
1 - 9 | £21.15 |
10 - 49 | £20.06 |
50 - 99 | £19.05 |
100 + | £17.97 |
*price indicative
- RS Stock No.:
- 144-4218
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Number of Contacts | 7 | |
Mounting Type | Cable Mount | |
Connector Size | Standard | |
Plug/Socket | Plug, Socket | |
Contact Gender | Female, Male | |
Termination Method | Solder | |
IP Rating | IP68 | |
Current Rating | 5A | |
Body Orientation | Straight | |
Series | SP17 | |
Voltage Rating | 400V | |
Mating Type | Threaded | |
Housing Material | Nylon 66, PC | |
Pole Format | 7P | |
Strain Relief | No | |
Contact Plating | Gold | |
Contact Material | Brass | |
Maximum Operating Temperature | 85°C | |
Outer Diameter | 6→10mm | |
Minimum Operating Temperature | -40°C | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Number of Contacts 7 | ||
Mounting Type Cable Mount | ||
Connector Size Standard | ||
Plug/Socket Plug, Socket | ||
Contact Gender Female, Male | ||
Termination Method Solder | ||
IP Rating IP68 | ||
Current Rating 5A | ||
Body Orientation Straight | ||
Series SP17 | ||
Voltage Rating 400V | ||
Mating Type Threaded | ||
Housing Material Nylon 66, PC | ||
Pole Format 7P | ||
Strain Relief No | ||
Contact Plating Gold | ||
Contact Material Brass | ||
Maximum Operating Temperature 85°C | ||
Outer Diameter 6→10mm | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- CN
Cable Plug and Socket 5/10/15A Circular Connectors (Threaded) IP68
From RS Pro, these threaded plugs and sockets are serious contenders for your application. This particular model has a bigger and stronger shell. That coupled with the IP68 rating excels in harsh environments. When choosing a male or female connector, this version should really be one you consider.
Features and Benefits
5 way, 7 way, 9 way, 10 way and 12 way available
Solder contact termination
High-quality Nylon66 shell
Panel hole cutout diameter: 17 mm or 21 mm
Note
This product may be provided in an all-black or black and blue variant
